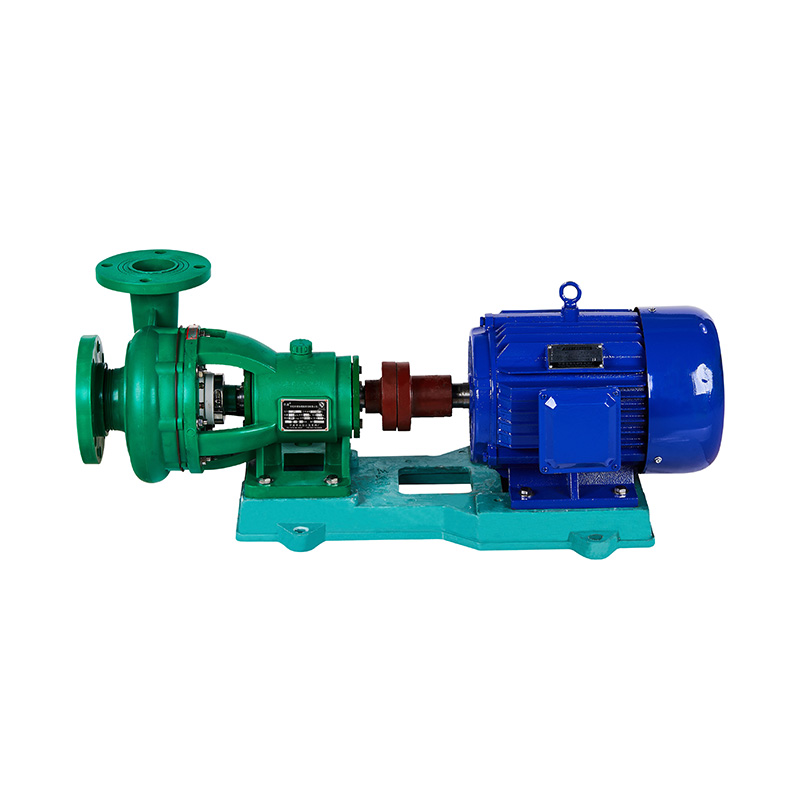

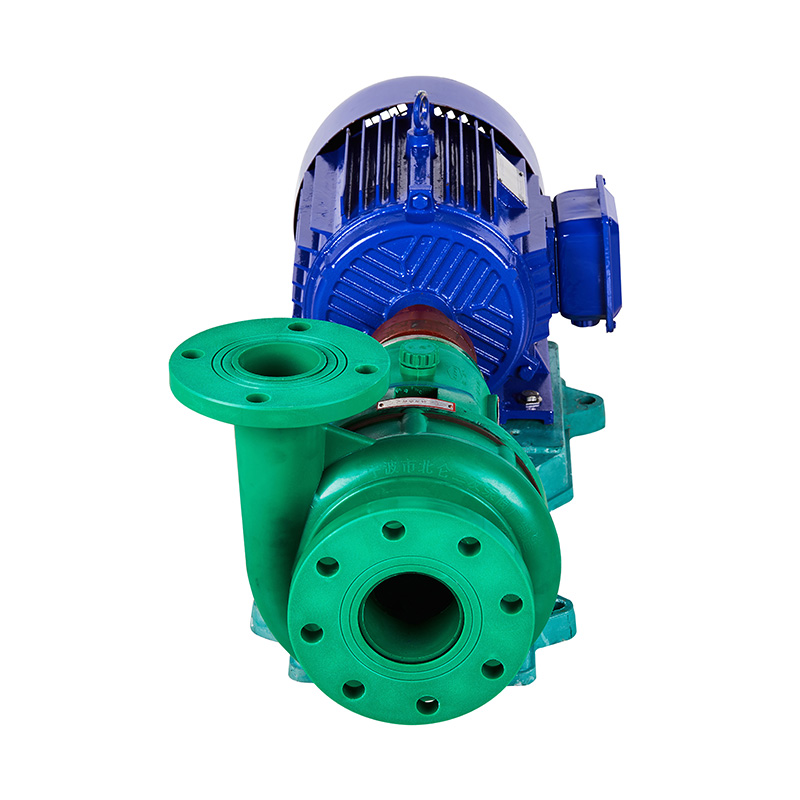

FP Shaft-Coupled Centrifugal Pump GB Standard

Chemical Corrosion Resistant Centrifugal Pump Competitive Price Industrial FPPPSeries Corrosion Resisting Plastic Centrifugal Pump(Direct Connection Type)
Brand Name: KXPV
Place of Origin: Ningbo, Zhejiang
Pressure: High Pressure
Structure: Direct Type Centrifugal Pump
Product name: Centrifugal Pump
Type: Direct
Size: 25FP-8D(0.55KW)--- 100FP-32D(15kw)
Delivery time: 7 Days
MOQ: 1 piece
Power: Electric
Usage: Industry
Application: Chemical
Supply Ability: 10000 Piece/Pieces per Month
Material: RPP
Color: Green

PVDF&FRPP Pumps Specification
Our factory specializes in manufacturing all-plastic corrosion-resistant centrifugal and self-priming pumps in two materials — PVDF and FRPP — across four series (FV, FP, FVZ, FPZ).  PVDF pumps are suitable for handling strong acids, powerful oxidants, halogens, aromatic hydrocarbons, aliphatic compounds, and chlorinated solvents, with an operating temperature range of -40°C to +140°C.  FRPP pumps are ideal for strong alkalis as well as general acids, bases, salts, and their derivatives, with an operating temperature range of -40°C to +90°C.  The pumps are typically driven by energy-efficient Y-type motors. Explosion-proof motors can be provided upon request.
If users have special requirements regarding flow rate, head, speed, or power, our factory offers technical support to deliver customized solutions.

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
Installation Maintenance

1. After long-distance transportation to the production site, the pump should be unpacked and inspected before installation to ensure all pump components are intact. Any loose fasteners should be retightened. Check the concentricity of the pump shaft and motor shaft and correct any looseness.

2. The pump body is entirely injection-molded from PVDF or FRPP resin. The output piping should have a support bracket or hanger, and the flange should not rely solely on pressure to withstand the pressure to prevent deformation and damage. Water loss should be minimized in the inlet piping, and no more than two 90° elbows should be used. FP and FV centrifugal pumps should have a foot valve installed at the front of the suction pipe to ensure that the pump body is filled with liquid before starting. A strainer should be installed at the suction pipe or foot valve inlet to prevent debris from being drawn into the pump body and ensure proper operation.

3. Bolts at the pump body connection points should be evenly tightened, and the inlet and outlet pipe connections should be tight and leak-proof. Otherwise, vacuum extraction will be affected, liquid may not be drawn, or flow or head may be insufficient.

Self-Priming Pump

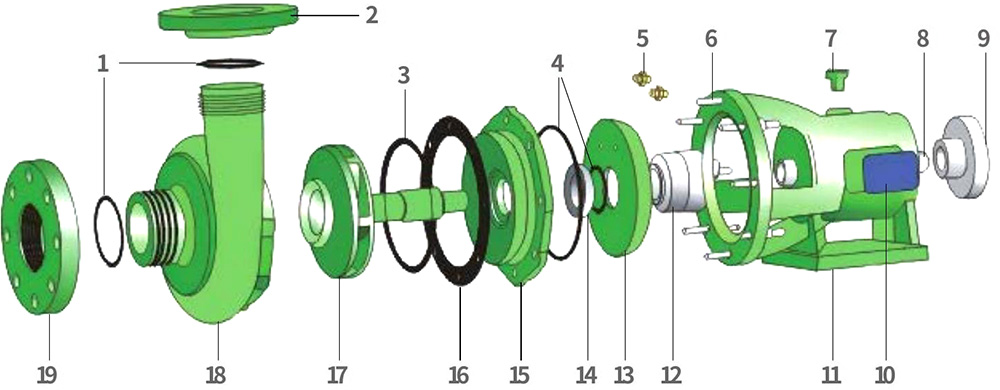

Shaft Connection Type Centrifugal Pump Assembly Detail Drawing

Part Material Table

No.

Name

Material

1

Sealing ring

EPDM,FPM

2

Pump body

FRPP,PVDF

3

Sealing ring

EPDM,FPM

4

Sealing ringg

EPDM,FPM

5

Cooling water cover

Steel

6

Double headed stud

Steel、Stainless steel

7

Oil-hole plug

FRPP

8

Carrying axle

Steel

9

Coupling

cast iron

10

Date plate

Aluminium

11

Suppot

FRPP/cast ironPVDF/cast iron

12

The mechanical seal moves

Sic

13

Cools the lid

FRPP

14

Mechanical seal static link

Sic

15

Cover

FRPP,PVDF

16

Seal film

EPDM,FPM

17

Impeller shaft

FRPP/ SteelPVDF Steel

18

Pump body

FRPP,PVDF

19

Inlet flange

FRPP,PVDF

Self-Priming Pump

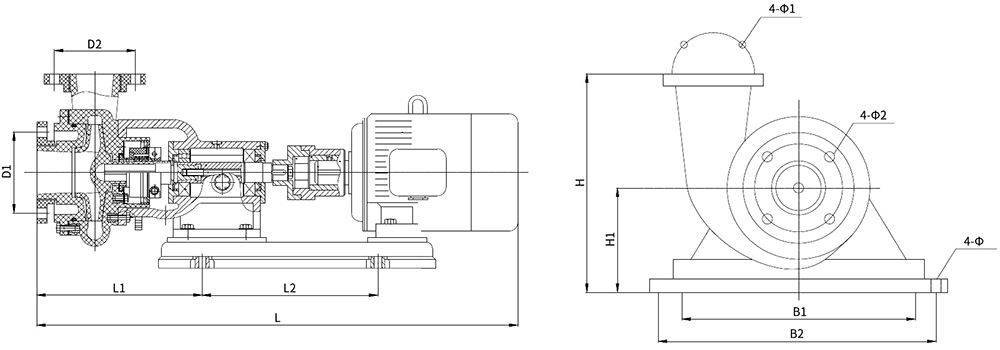

Dimension List                                                      Unit :mm

Type/Dimension

Dimension List

Inlet flange

Pump body

L

L1

L2

B1

B2

H

H1

4-Φ

D1

n-Φ2

D2

n-Φ1

40F

p (D)-25

830

185

415

245

340

310

170

4-16

110

4-18

100

4-18

v

50F

p (D)-28

840

300

430

250

340

322

170

4-16

125

4-18

110

4-18

v

65F

p (D)-26

850

295

430

250

340

345

182

4-16

145

4-18

125

4-18

v

80F

p (D)-30

960

330

430

250

340

380

185

4-16

160

8-18

145

4-18

v

80F

p (D)-32

960

330

430 250

340

380

185

4-16

160

8-18

145

4-18

v

100F

p (D)-20

1140

275

635

285

405

450

250

4-18

180

8-18

160

8-18

v

100F

p (D)-32 1200

275

635

285

405

450

250

4-18

180

8-18

160

8-18

v
