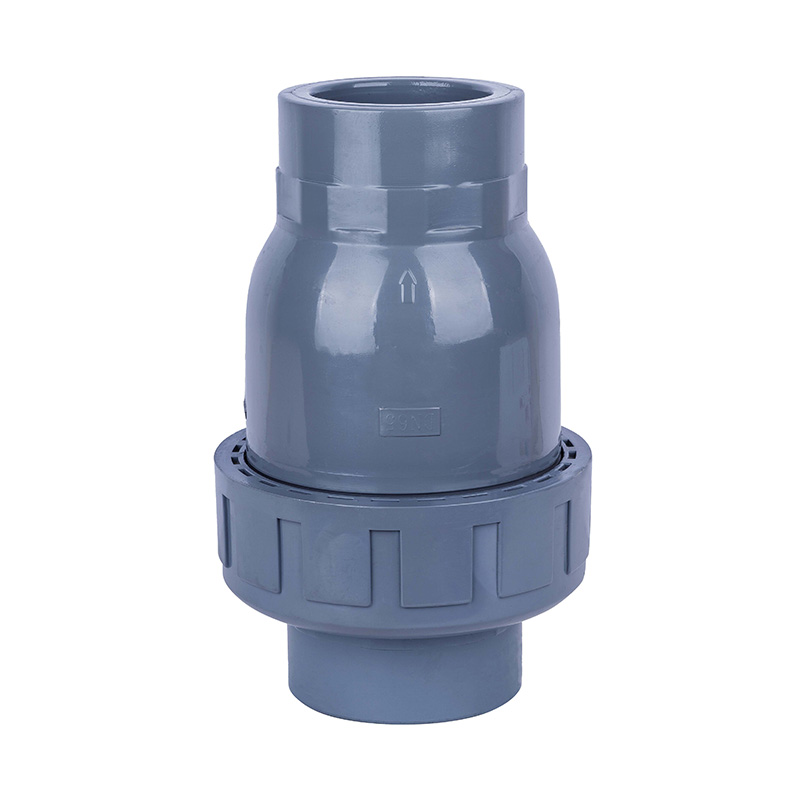

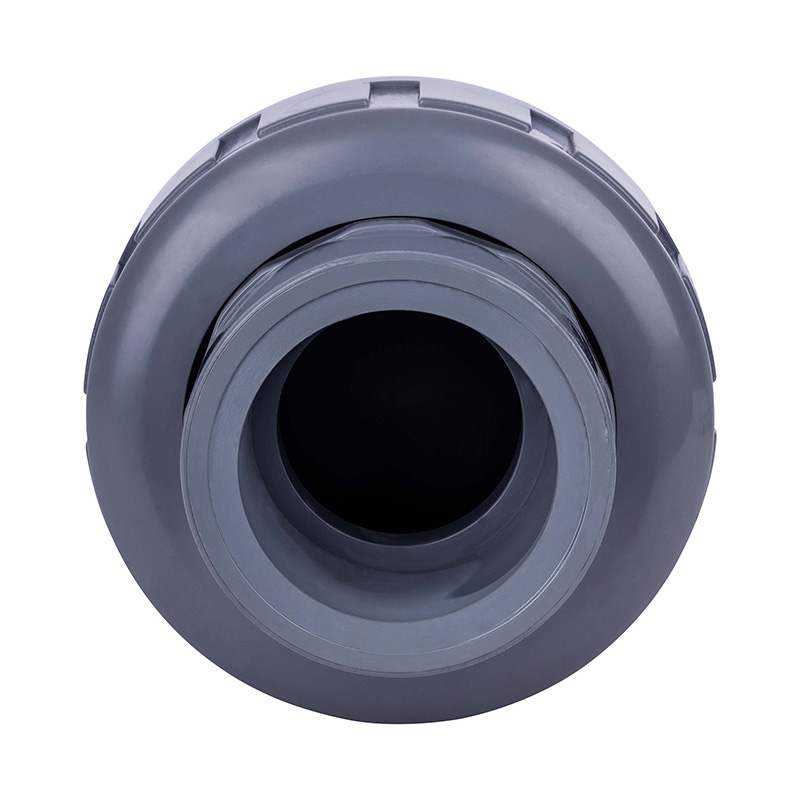

CPVC Single Union Socket Check Valve DN40-100

CPVC Single Union Socket Check Valve DN40-100

Factory Price Grey CPVC Single Socket Union Wafer Check Valve DN40-DN100 Plastic Check Valve for chemical and sanitary industry

Type:Plastic Check Valves

Place of Origin:China

Brand Name:KXPV

Model Number:H61F-10V

Application:General

Temperature of Media:Medium Temperature, Normal Temperature

Power:Manual

Media:Acid

Port Size:DN40-DN100

Structure:Check

Product name:Wafer Check valve

Delivery Time:7 Days

MOQ:1 Piece

Color:Grey

0086 180 6712 3173 Contact Us
  • Description
  • Additional Information

  • Receive Insert Check Valve Assembly Detail Drawing

    Main Structural Features
    1.Non-return protection
    The valve is not susceptible to external pressure because of its reduced number of components. At the same time, the valve is highly accurate, so it can be completely prevented.
    2.Delicate and light weight
    The valve structure is delicate and lightweight,so it can be installed in limited space and easy to maintain.
    Part Material Table

    No.

    Name

    Material

    1

    Body

    FRPP,PVDF,CPVC,UPVC,PPH

    2

    Solld ball

    FRPP,PVDF,CPVC,UPVC,PPH

    3

    Bonnet

    FRPP,PVDF,CPVC,UPVC,PPH

    4

    Seal rubber

    FPM,EPDM

    5

    Threaded joints

    FRPP,PVDF,CPVC,UPVC,PPH

    6

    Fight tight nut

    FRPP,PVDF,CPVC,UPVC,PPH
    Dimension List

    DN

    L

    D

    LI

    32

    154

    40

    31

    40

    154

    50

    31

    50

    175

    63

    35

    65

    270

    75

    45

    80

    275

    90

    45

    100

    320

    110

    57



Watch overview
CPVC Single Union Socket Check Valve DN40-100

Carring Your Dream To The World Quality is Life

We Are Leading Company In This Field, We Provide Specific Solutions For Our Every Customers
A check valve is a mechanical device that allows fluid or gas to flow in only one direction. It is designed to prevent backflow, also known as backpressure or back siphonage, and it automatically opens and closes to control the flow of the fluid or gas. There are several different types of check valves, including swing check valves, lift check valves, ball check valves, diaphragm check valves and many more.
A swing type check valve, ball check valve, and single union socket check valve are all types of check valves that are used for specific applications.
A swing type check valve, also called a swing check valve, is a type of check valve that uses a hinged disc that swings open when fluid or gas flows in the correct direction, and then closes by gravity when flow is reversed. Swing check valves are commonly found in large pipe sizes and high-pressure systems. They have a relatively simple and robust design, which makes them easy to maintain and repair, and they are often used in applications that require a high flow rate and a tight shutoff.
A ball check valve, also called a ball non-return valve, uses a ball that sits in the flow path. When flow is in the correct direction, the ball is pushed out of the way and fluid or gas can flow through the valve. When flow is reversed, the ball is forced against its seat and the valve closes. Ball check valves are commonly found in small pipe sizes and low-pressure systems. They are relatively inexpensive and easy to maintain, and they are often used in applications where a low flow rate is sufficient and where space is limited.
A single union socket check valve is a type of check valve that has a single union socket connection. This type of connection allows for easy installation and removal of the valve, and it is typically used for smaller diameter pipes. A single union socket check valve is particularly useful for applications where frequent maintenance is required as it allows for easy access and replacement. They are also called a plastic check valves and are typically used in low-pressure and low-temperature applications.
All these types of check valves allow flow in only one direction and prevent backflow, and they can be used to protect equipment and prevent damage in a wide range of industrial, commercial, and institutional applications.
