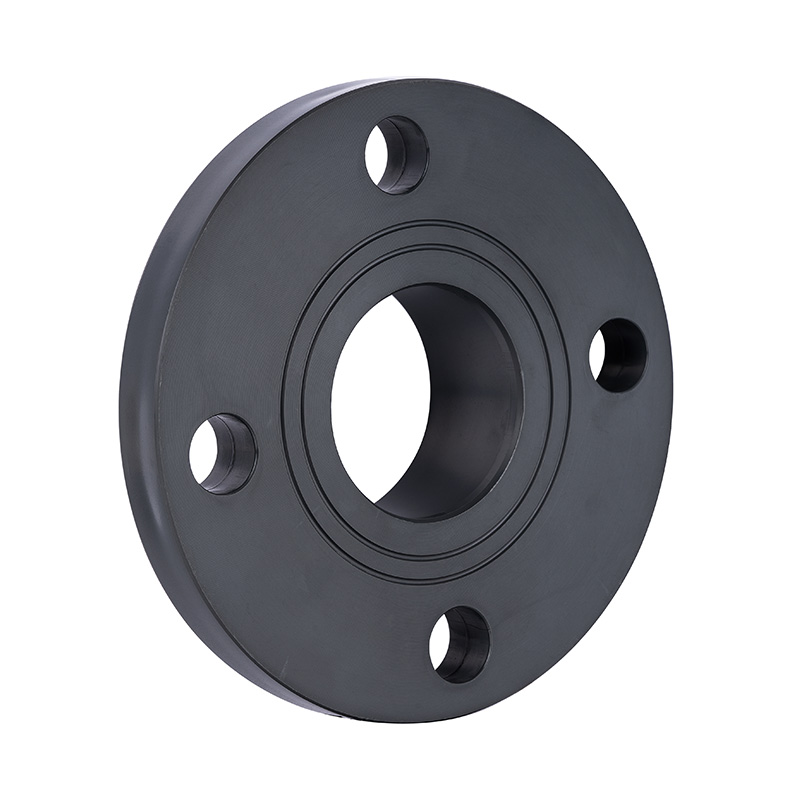

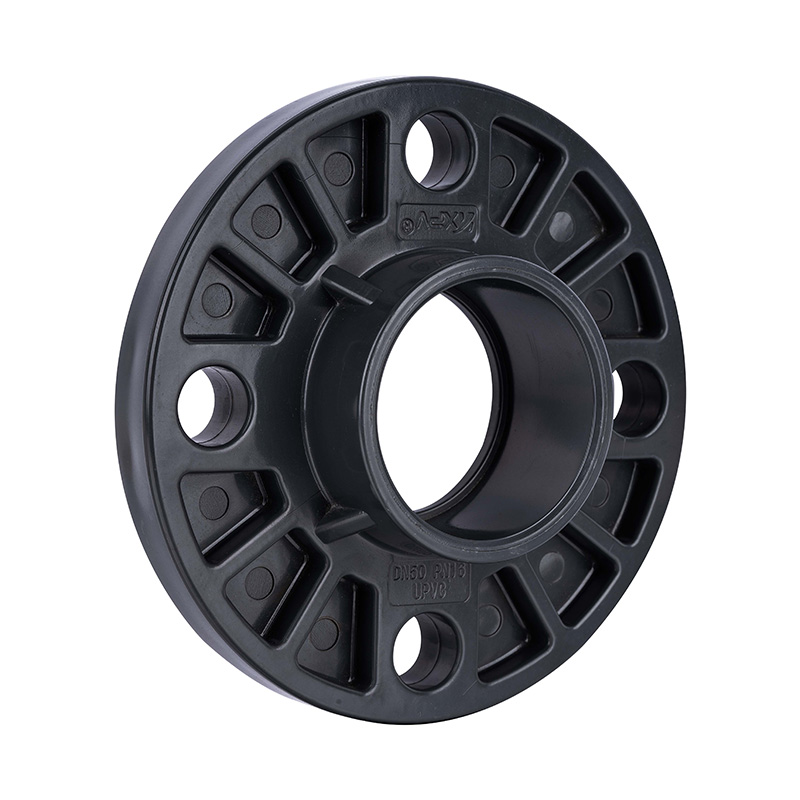

PVC-U Socket Flange DN15-200 GB Standard

New, Commonly Used Dark Gray PVC-U Socket Flange DN15-DN200 Chemical and Sanitary Plastic Pipe Fittings
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Dark Gray
Sizes: DN15-DN200
Application: Industry
Packing: Carton Box
Working Pressure: 1Mpa
Delivery Time: 7 Days
MOQ: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

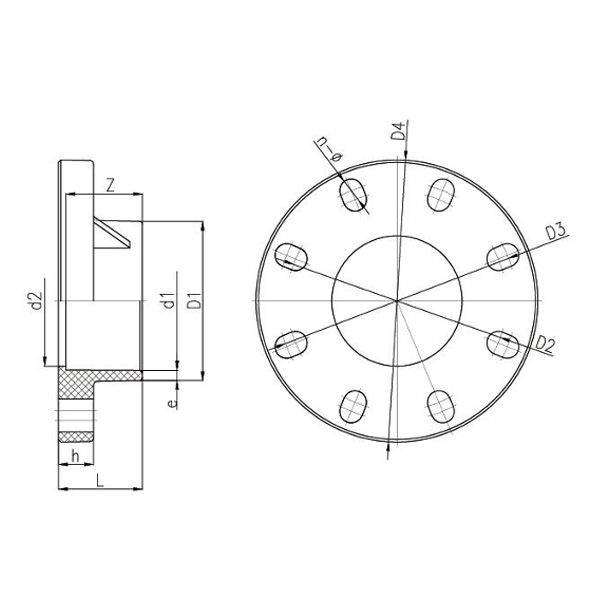

PVC-U Socket Flange

DN D1 D2 D3 D4 d1 d2 L h Z e n-Φ
15  28  61  70  95  20  17  20  14  16  4-Φ15X19.5
20  32  70  75  105  25  22  24  17  19  3.5  4-Φ15X17.5
25  40  79  90  120  32  28  29  18  22  4-Φ16X21.5
32  50  89  100  140  40  36  34  20  26  4-Φ18.5X24
40  61  98  110  150  50  45  37  20  31  5.5  4-Φ18.5X24.5
50  75  120  125  165  63  58  47  25  38  4-Φ18.5X21
65  88  140  145  185  75  69  53  25  44  6.5  4-Φ18.5X21
80  105  150  160  200  90  84  58  26  51  7.5  8-Φ18.5X23.5
100  127  175  190.5  225  110  104  67  28  61  8.5  8-Φ18.5X26.25
125  161  210  216  250  140  134  82  30  76  10.5  8-Φ20X24
150  184  240  242  280  160  154  92  30  86  12  8-Φ23X24
200  249  290  298.5  338  225  219  125  35  119  12  8-Φ23X27.25
