UPVC Bushing DN15-600

Excellent Quality Gray CPVC Reducing Adapter / Reducer Wear Resisting CPVC Insert Bushing DN15-DN600 Plastic Pipe fittings for water and chemical industry

Applicable Industries: Water and chemical industry

Place of Origin: Zhejiang, China

Brand Name: KXPV

Type: Sleeve

Material: CPVC

Color: Gray

Size: DN15-DN600

Application: Industry

Packing: Carton Box

Working Pressure: 1.0-1.6Mpa (10-25bar)

Delivery Time: 7 Days

MOQ: 1PCS

Supply Ability: 10000 Piece / Pieces per Month

0086 180 6712 3173 Contact Us

Description
Additional Information

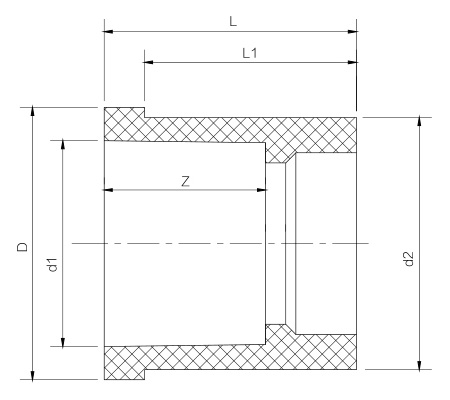

UPVC Bushing Main Connection Dimension

DN	dn	L1	D	d1	d2	Z
DN20 × 15	25	21	27	20	25	16
DN25 × 15	27	22	35	20	32	16
DN25 × 20	27	22	35	25	32	16
DN32 × 15	32	26	43	20	40	19
DN32 × 20	32	26	43	25	40	19
DN32 × 25	32	26	43	32	40	19
DN40 × 15	39	31	58	20	50	16
DN40 × 20	39	31	58	25	50	19
DN40 × 25	39	31	58	32	50	19
DN40 × 32	39	31	58	40	50	19
DN50 × 20	47	38	67	25	63	19
DN50 × 25	47	38	67	32	63	19
DN50 × 32	47	38	67	40	63	26
DN50 × 40	47	38	67	50	63	31
DN65 × 25	53	44	79	32	75	22
DN65 × 32	53	44	79	40	75	26
DN65 × 40	53	44	79	50	75	31
DN65 × 50	53	44	79	63	75	38
DN80 × 40	61	51	94	50	90	31
DN80 × 50	61	51	94	63	90	38
DN80 × 65	61	51	94	75	90	41
DN100 × 65	72	60	114	75	110	44
DN100 × 80	72	60	114	90	110	51
DN125 × 100	88	76	144	110	140	61
DN150 × 100	100	86	160	110	160	61
DN150 × 125	100	86	160	140	160	61
DN200 × 150	135	119	225	160	225	86
DN250 × 200	147	130	305	225	280	118
DN300 × 250	180	160	340	280	315	130
DN350 × 300	200	184	380	315	355	165
DN400 × 350	250	230	420	355	400	184
DN450 × 400	250	231	470	400	450	230
DN500 × 450	280	256	530	450	500	231
DN600 × 500	350	321	660	500	600	256

Location:	China
Business Type:	Manufacturer, Exporter
Brands:
Certificate:
Model:
Terms of payment and delivery:
Minimum order quantity:
Price:	Consultation
Packing details:
Delivery time:
Payment method:
