PVC-C Union Fitting DN15-100 GB Standard

Wholesale High-Quality Light Gray PVC-C Union Fitting, 1.0-1.6 MPa Working Pressure, DN15-DN100, Plastic Pipe Fittings for the Sewage and Chemical Industries
Place of Origin: China
Brand Name: KXPV
Material: PVC-C
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Light Gray
Sizes: DN15-DN100
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

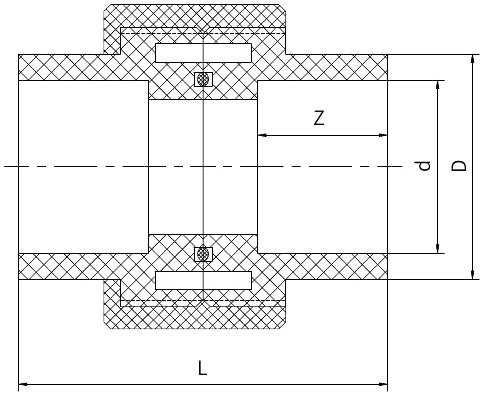

Dimension List

DN Dimension(mm)
D1 D2 d L Z
15 50 27 20 52.5 20
20 58 34 25 63 24
25 70 41 32 66 27
32 85 52 40 77.5 30
40 98 63 50 79.5 32
50 127 78 63 88.5 38
65 144 96 75 119 44
80 158 107 90 131 51
100 192 126 110 158 61
