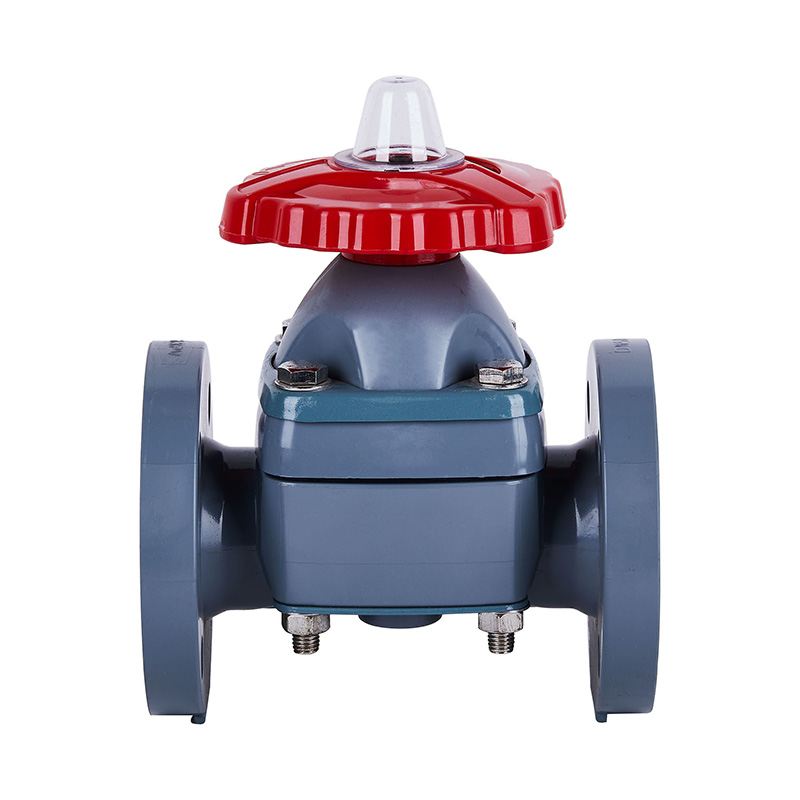

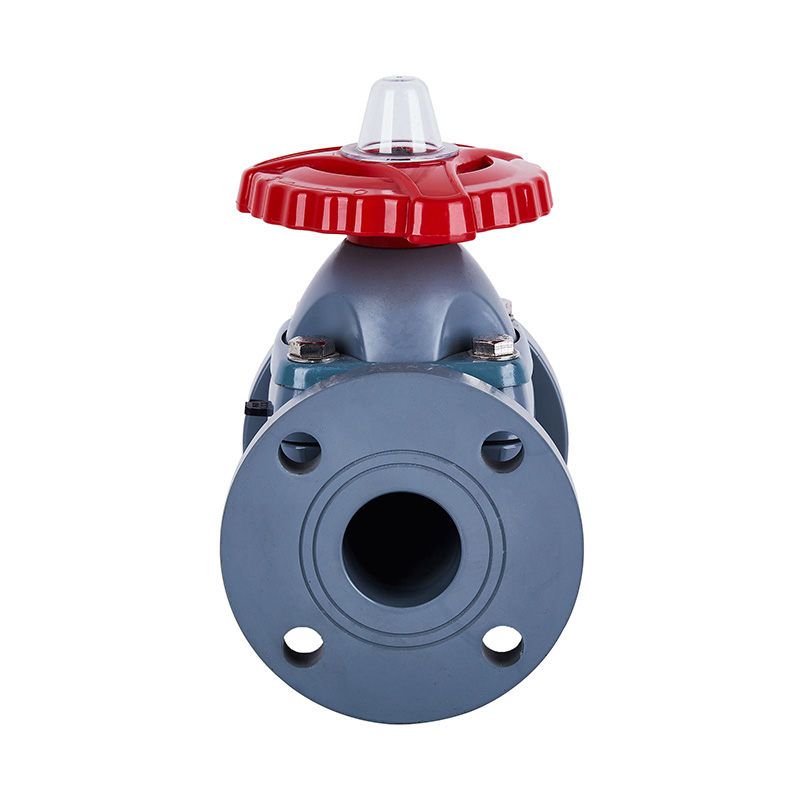

Super durable High Temperature Manual New Design CPVC Flange Plastic Diaphragm Valve For Acidic Fluid and Water Supply

Product name:CPVC diaphragm valve

Colour:Grey

Size:DN15-DN250

Model Number:G41F-10V

Application:General

Material:Plastic

Temperature of Media:High Temperature, Medium Temperature

Pressure:Medium Pressure

Power:Manual

Media:Acid

Port Size:DN15-DN250

Structure:Diaphragm

Connection:Flange Ends

Certificate:ISO9001

Medium:Acid

Working pressure:0-10bar

Valve type:1-way

Seal:EPDM+F46

Delivery Time:7 Days

MOQ:1 Piece

Contact Us

New Design CPVC Flange Diaphragm Valve High Temperature Plastic Valve Details

Main structural features
1. Good external seal performance
With 3d CAD/CAE analysis, diaphragm valves are fitted with suitable depth of body and proper depth of screws. In addition, with high elastic rubber, the sealing performance of the valve is improved.
2. Easy to operate
To reduce friction, the shape of the material and sliding parts has been updated. The proper seat shape improves the operating procedure.



App temperature bound list



Material Medium temperature°C Material Medium temperature°C
RPP -14℃~+90℃ PVDF -40℃~+140℃
UPVC -10℃~+70℃ CPVC -20℃ ~+95℃





Part material list



No. Name Material
1 Cover limit AS
2 Stud Steel,StainlessSteel.
3 Retaining Nut FRPP
4 Washer FRPP
5 Wheel Alloy material
6 Platen Steel,StainlessSteel
7 Double headed stud and Nut Steel,StainlessSteel
8 Bonnet FRPP、PVDF、UPVC、CPVC、PPH
9 Yoke Nut Ht300 Steel
10 Stem Steel,StainlessSteel
11 Disc FRPP、PVDF、UPVC、CPVC、PPH、Steel、StainlessSteel、C.I.FRP
12 Flim EPDM、FPM
13 Diaphragm F46.PFA
14 Body FRPP、PVDF、UPVC、CPVC、PPH
15 Platen Steel,StainlessSteel



Working pressure and working temperature list

Dimension List
