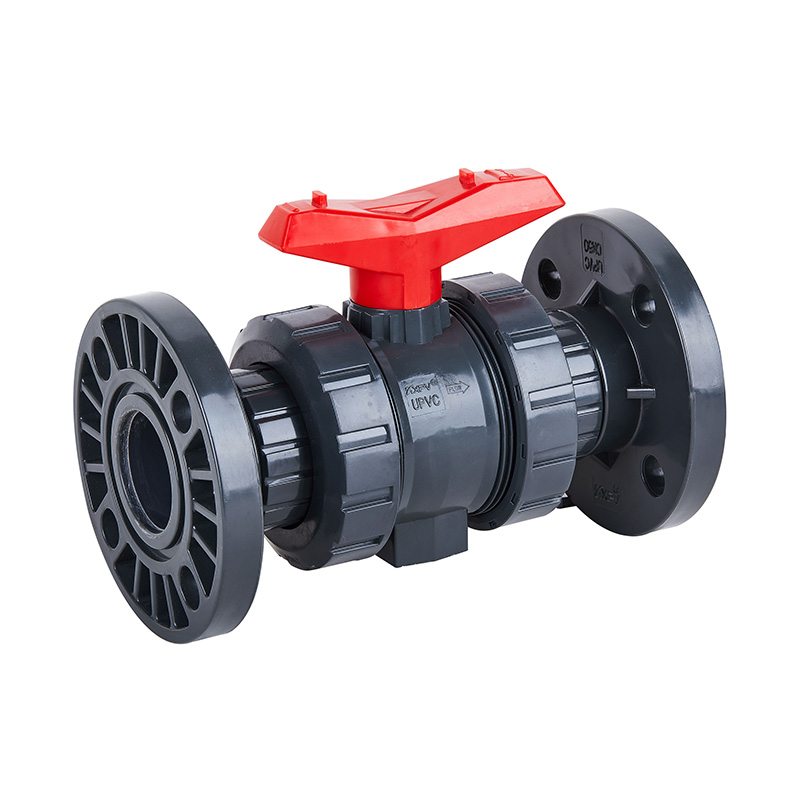

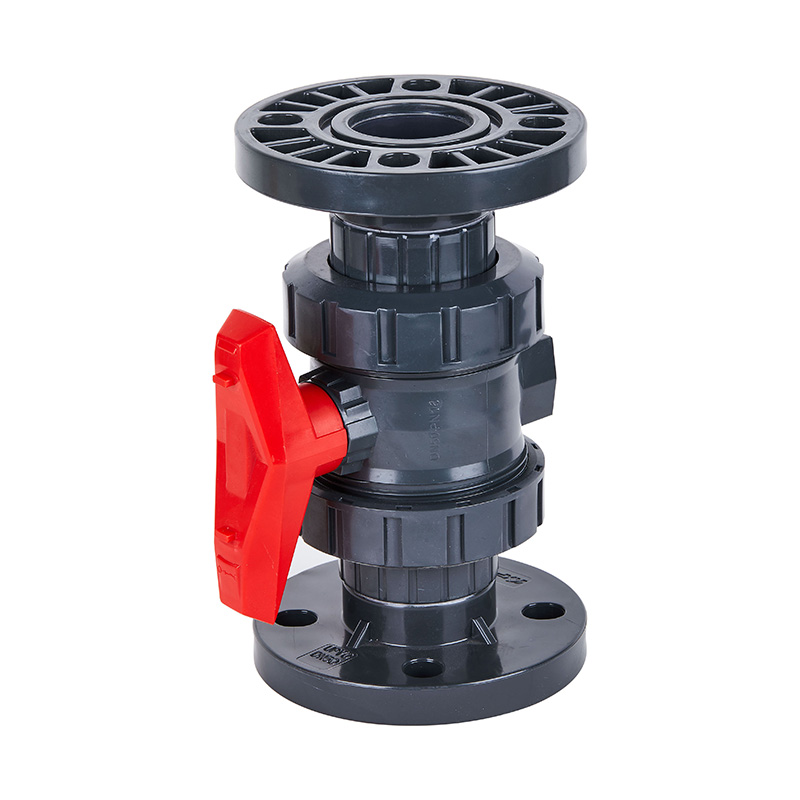

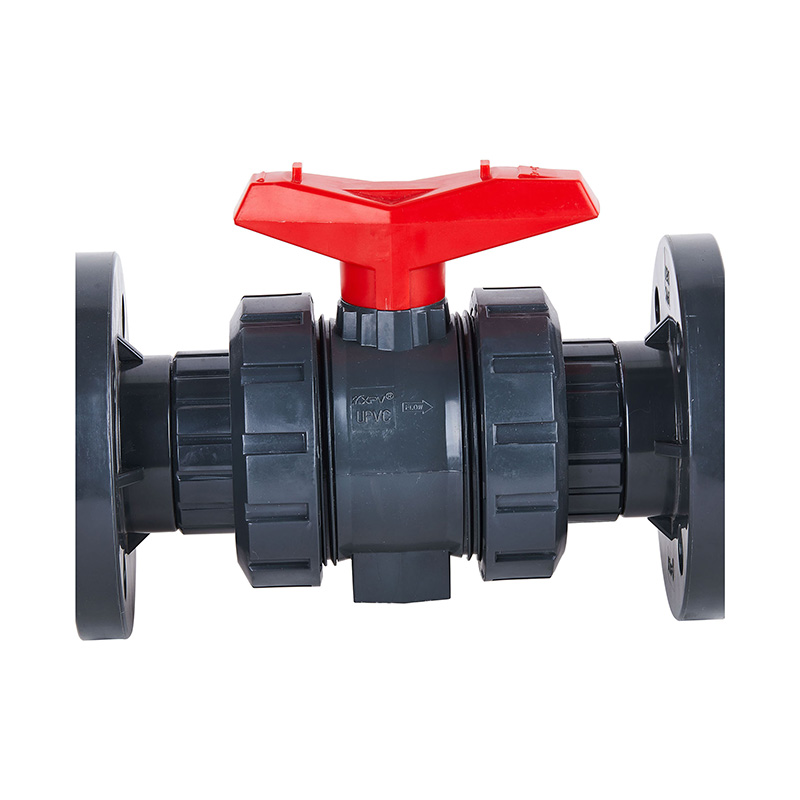

PVC-U Q41F-10U Flanged True Union Ball Valve DN15-100 1/2"-4" ANSI Standard

Competitive Price Ultra-Durable New Dark Gray PVC-U Flanged Double Union Socket Ball Valve for Chemical and Water Industry PE Pipes ANSI Standard
Model: Q41F-10U
Color: Dark Gray
Connection Type: Flanged
Operation Mode: Manual
Flow Channel: Straight-Through Type
Structure: Fixed Ball Valve
Function: Bypass Valve
Temperature: High Temperature
Application: Industrial Use, Water Treatment Use
Brand: KXPV
Specification: DN15–DN100
Origin: Zhejiang, Ningbo

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1.The double union ball valve features PTFE seats with adjustable tightness.
2.Double-layer O-rings provide dual leak-proof protection.
3.Exquisite appearance with smooth surface, fine workmanship, and full-flow design



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No. Name Material Qty.
PVC-C PVC-U PVDF PPH 1
1 Handle Alloy material 1
2 Stem PVC-C PVC-U PVDF PPH 2
3 Body PVC-C PVC-U PVDF PPH 1
4 Seal seat O-ring 1 FPM EPDM FPM EPDM 1
5 Seal seat PVC-C PVC-U PVDF PPH 2
6 Seal seat O-ring 2 FPM EPDM FPM EPDM 2
7 Seal seat O-ring 3 FPM EPDM FPM EPDM 2
8 Sten seal PTFE 1
9 Ball PVC-C PVC-U PVDF PPH 2
10 Retaining PVC-C PVC-U PVDF PPH 2
11 Union PVC-C PVC-U PVDF PPH 2
12 Seal FPM EPDM FPM EPDM 2
13 Flange PVC-C PVC-U PVDF PPH 2

Dimension List



Specification D
(mm)
D1
(mm)
L(mm) h
(mm)
N-Φ
(mm)
PVC-C PVC-U PVDF PPH
1/2"(15) 60 95 150 138 14 4-Φ15
3/4"(20) 70 105 174 158 16 4-Φ15
1"(25) 79 115 190 172 16 4-Φ15
1¼"(32) 89 140 220 196 18 4-Φ19
1½"(40) 98 150 240 206 18 4-Φ19
2"(50) 121 165 275 230 20 4-Φ19
2½"(65) 140 185 333 270 20 4-Φ19
3"(80) 152 200 396 320 20 8-Φ19
4"(100) 191 220 470 384 22 8-Φ19
