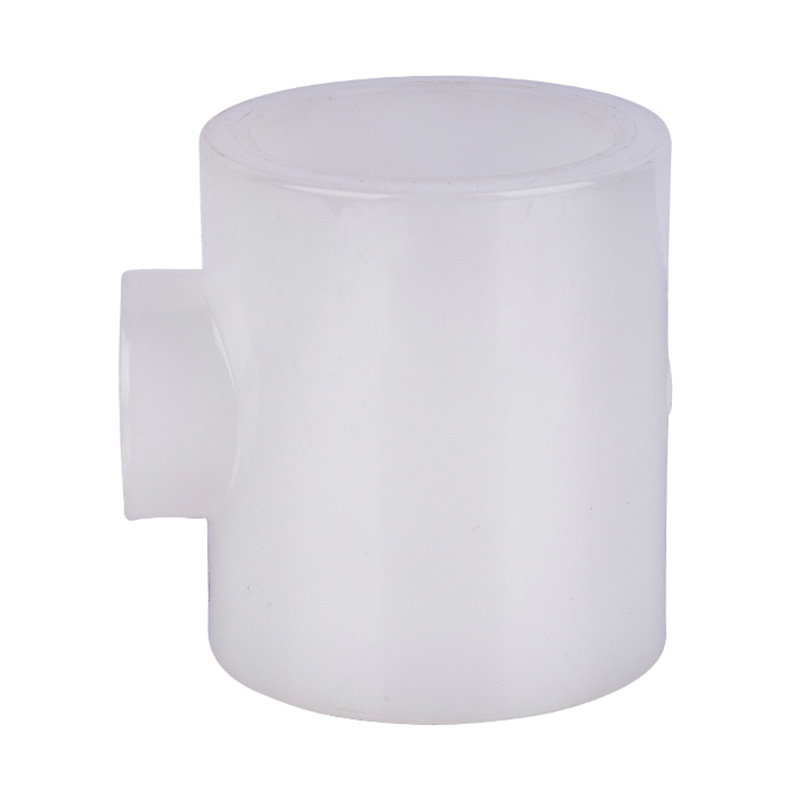

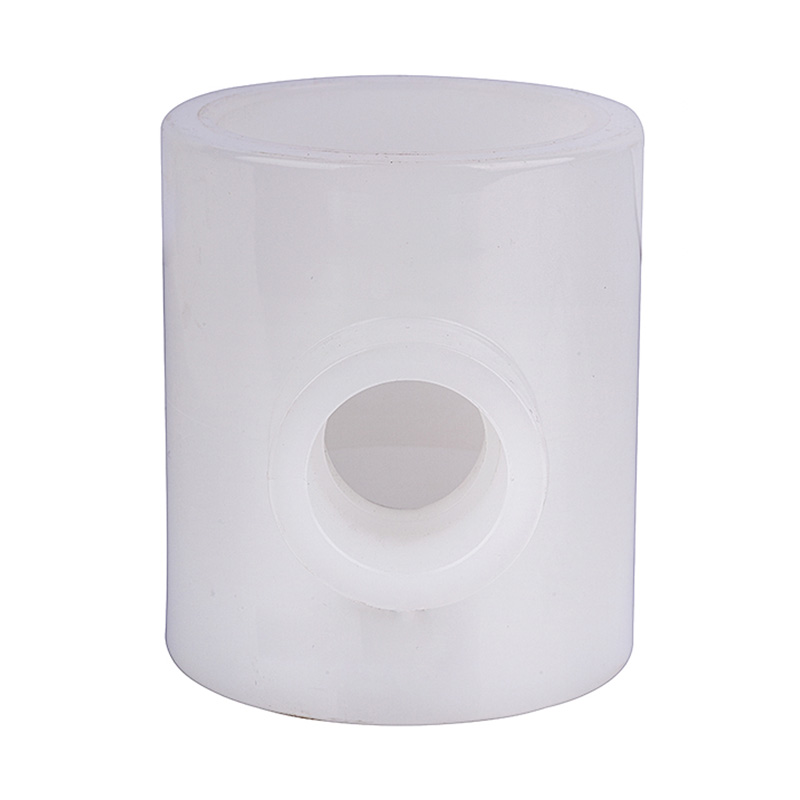

PVDF Hot Melt Socket Reducing Tee DN15*20-100*80 GB Standard

PVDF Hot Melt Socket Reducing Tee DN15*20-100*80 GB Standard

The latest design of white PVDF two-way straight pipe joint DN15*20-100*80 Three-way plastic pipe fittings for gardens and irrigation systems
Place of Origin: China
Brand Name: KXPV
Material: Plastic
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Round
Color: White
Size: DN15*20-100*80
Application: Industry
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 10000 Piece / Pieces per Month

Contact Us
PREV：PVDF Butt-Weld Reducing Tee DN15*20-100*80 GB Standard
NEXT：PVDF Butt-Weld Tee DN15-100 GB Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Excellent heat resistance and high dielectric strength
PVDF has a highly regular molecular structure. The fluorine and chlorine atoms in the molecule are of similar size, resulting in densely packed polymer chains and strong hydrogen bonding. Consequently, the polymer exhibits high tensile strength, compressive strength, and impact toughness. PVDF also has a melting point of around 170°C, offering excellent processability and easy molding.
2. Wear resistance, high mechanical strength, and toughness
It boasts exceptional toughness among fluoroplastics, a low coefficient of friction, and aging resistance, resulting in strong wear and impact resistance. Furthermore, it exhibits high resistance to fading and UV rays in harsh and hostile environments.
3. Weather resistance, UV resistance, and nuclear radiation resistance
It boasts high purity, excellent chemical stability, corrosion resistance, high temperature resistance, high barrier properties, oxidation resistance, weather resistance, and radiation resistance, as well as special properties such as piezoelectricity, dielectricity, and thermoelectricity.
4. Wide range of applications
PVDF piping systems are widely used in the storage and transportation of high-purity chemicals in the petrochemical, electrical and electronic industries, fluorocarbon coatings, nuclear power projects, the semiconductor industry, and the petrochemical industry.

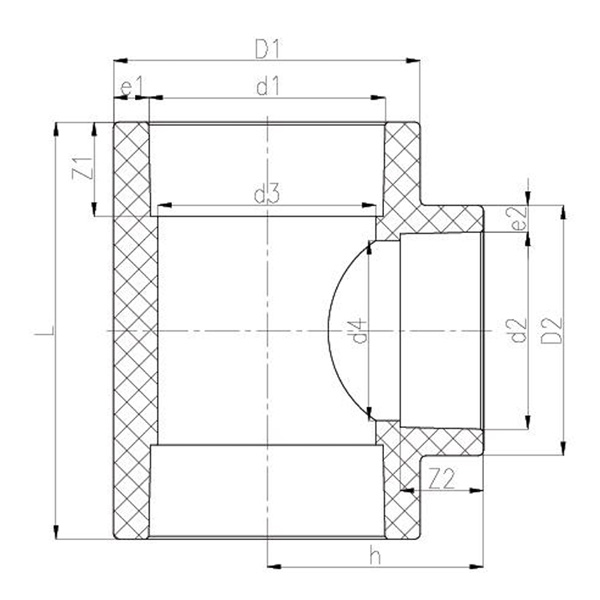

PVDF Hot Melt Reducing Tee

DN D1 D2 d1 d2   d3 d4 L h Z1 Z2 e1 e2
20*15 35  29  25  20    20  16  60  29  18  15  5  4.5
25*15 43  29  32  20    26  16  64  32  20  15  5.5  4.5
25*20 43  35  32  25    26  20  68  35  20  18  5.5  5
32*15 51  29  40  20    34  16  70  37  22  15  5.5  4.5
32*20 51  35  40  25    34  20  74  40  22  18  5.5  5
32*25 51  43  40  32    34  26  80  42  22  20  5.5  5.5
40*15 64  29  50  20    44  16  76  43  24  15  7  4.5
40*20 64  35  50  25    44  20  80  46  24  18  7  5
40*25 64  43  50  32    44  26  86  48  24  20  7  5.5
40*32 64  51  50  40    44  34  94  50  24  22  7  5.5
50*25 81  43  63  32    57  26  94  54.5  28  20  9  5.5
50*32 81  51  63  40    57  34  102  56.5  28  22  9  5.5
50*40 81  64  63  50    57  44  112  58.5  28  24  9  7
65*25 93  43  75  32    67  26  103  61  31  20  9  5.5
65*32 93  51  75  40    67  34  111  63  31  22  9  5.5
65*40 93  64  75  50    67  44  121  65  31  24  9  7
65*50 93  81  75  63    67  57  134  69  31  28  9  9
80*40 114  64  90  50    81  44  132  73.5  35  24  12  7
80*50 114  81  90  63    81  57  145  77.5  35  28  12  9
80*65 114  93  90  75    81  67  155  80.5  35  31  12  9
100*25 134  43  110  32    100  27  131  80  42  20  12  5.5
100*32 134  51  110  40    100  34  138  82  42  22  12  5.5
100*40 134  64  110  50    100  44  146  84  41  24  12  7
100*50 134  81  110  63    100  57  159  88  41  28  12  9
100*65 134  93  110  75    100  67  169  91  41  31  12  9
100*80 134  114  110  90    100  81  183  95  41  35  12  12
