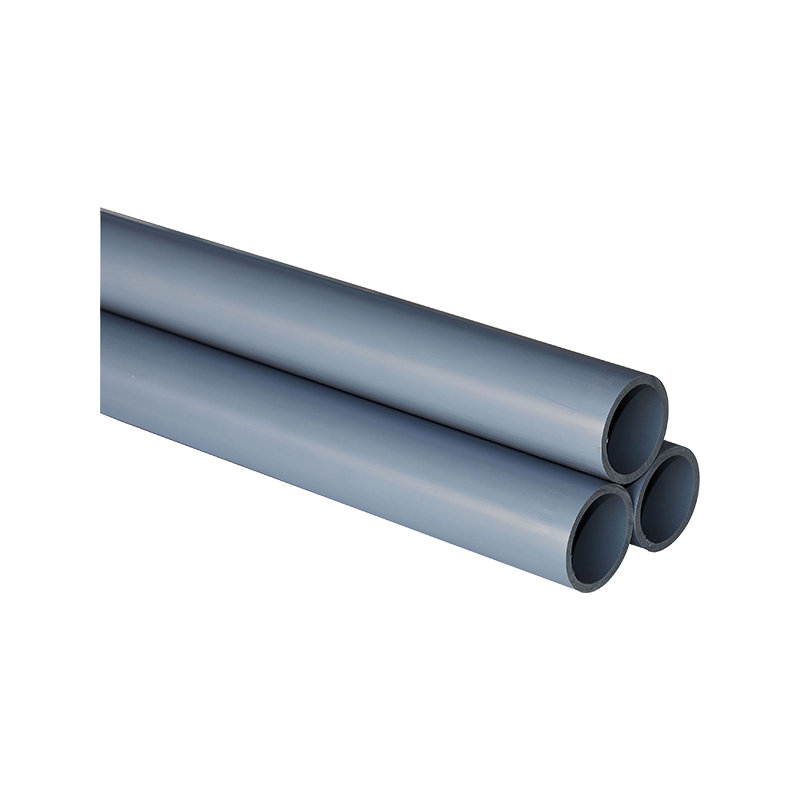

CPVC Pipes DN15-600

CPVC Pipes DN15-600

Large Diameter Gray PN16 Gray Black 20mm 600mm DIN Custom Square Round Plastic CPVC Conduit Drain Pipe

Place of Origin: Zhejiang, China

Brand Name: KXPV

Material: CPVC

Specification: DN15 - DN600

Length: 4000mm

Thickness: Custom

Standard: DIN

Connection: Socket Fusion

Packing: Plastic Film

Working pressure: PN10-16

Color: Gray

Raw material: CPVC

Size: DN15-DN600

Usage: Industrial

Supply Ability: 100000 Meter / Meters per Month

0086 180 6712 3173 Contact Us
  • Description
  • Additional Information

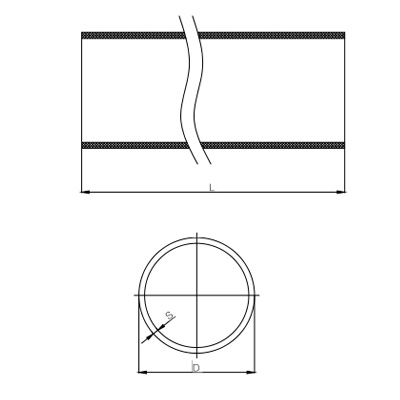

  • CPVC Pipes Main Connection Dimension

    Inch

    D

    L

    S

    mm

    mm

    PN1.6MPa

    KG / M

    PN1.0MPa

    KG / M

    1/2 "

    20

    4000

    2.0

    0.17

    2.0

    0.17

    3/4 "

    25

    4000

    2.3

    0.25

    2.0

    0.22

    1"

    32

    4000

    2.9

    0.40

    2.0

    0.28

    1-1 / 4 "

    40

    4000

    3.0

    0.52

    2.0

    0.36

    1-1 / 2 "

    50

    4000

    3.7

    0.81

    2.4

    0.54

    2"

    63

    4000

    4.7

    1.29

    3.0

    0.85

    2-1 / 2 "

    75

    4000

    5.6

    1.83

    3.6

    1.21

    3"

    90

    4000

    6.7

    2.63

    4.3

    1.74

    4"

    110

    4000

    8.1

    3.89

    5.3

    2.61

    5"

    140

    4000

    10.3

    6.29

    6.7

    4.21

    6 "

    160

    4000

    11.8

    8.24

    7.7

    5.52

    8 "

    225

    4000

    16.6

    16.29

    10.8

    10.90

    10 "

    280

    4000

    20.6

    25.17

    13.4

    16.83

    12 "

    315

    4000

    23.2

    31.89

    15

    21.20

    14 "

    355

    4000

    26.1

    40.43

    16.9

    26.91

    16 "

    400

    4000

    29.4

    51.32

    19.1

    34.27

    18 "

    450

    4000

    21.5

    43.39

    twenty"

    500

    4000

    23.9

    53.59

    24 "

    630

    4000

    30

    84.78

    This standard is based on the national standard GB / T18998.2-2003, the length of pipe degrees can be customized according to customer needs.

1. Your personal information
  • Man
  • Woman
2. Campus experience
3. Upload attachments

Upload attachments

Submit
Watch overview
CPVC Pipes DN15-600

Carring Your Dream To The World Quality is Life

We Are Leading Company In This Field, We Provide Specific Solutions For Our Every Customers
CPVC is a new engineering plastic material made of modified PVC resin.
CPVC piping system takes chlorinated polyvinyl chloride as main material,adds addtitives to improve processability,then it can be finished by extruding(pipes) or injection mould(fittings).
CPVC (chlorinated polyvinyl chloride) is a thermoplastic material that is commonly used to make valves and other piping components. CPVC valves are similar to PVC valves, but they have a higher temperature and chemical resistance, making them suitable for applications that involve hot liquids or harsh chemicals.
CPVC Plastic Valves are used for a wide variety of applications from irrigation and water distribution, air, gas and steam distribution systems. Manufactured from chlorinated polyvinyl chloride (CPVC), these pipes resist the transfer of heat. They have high chlorine resistant properties making them long-lasting under harsh conditions. The easy to install plastic valves are available in several configurations including ball check, butterfly, gate, globe and utility.
CPVC valves can be made in many forms, such as Ball valves, butterfly valves, and diaphragm valves. These valves can be used for both flow control and isolation. Some of the benefits of using CPVC valves include:
High temperature resistance
Excellent chemical resistance
Low cost
Lightweight
Easy to install
