All-Plastic Horizontal Complete Vacuum Unit GB Standard

Custom Horizontal type FRPP Water Jet Complete Vacuum Unit Pump Plastic High Pressure All Models Horizontal Pump for Chemical Industry
Professional Horizontal Plastic FRPP Water Jet Vacuum Unit Pump Units Suitable For Various Equipment
Brand Name: KXPV
Place of Origin: China
Pressure: Custom, High Pressure
Structure: Horizontal Pump
Material: FRPP
Color: Green
Outlet Size: Custom
Power: Electric
Product Name: Vacuum Unit
Size: RPP-25-20/RPP-80-500
Delivery Time: 7 Days
MOQ: 1 Piece
Usage: Industry
Application: Chemical
Supply Ability: 10000 Piece/Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
Application Scope And Features

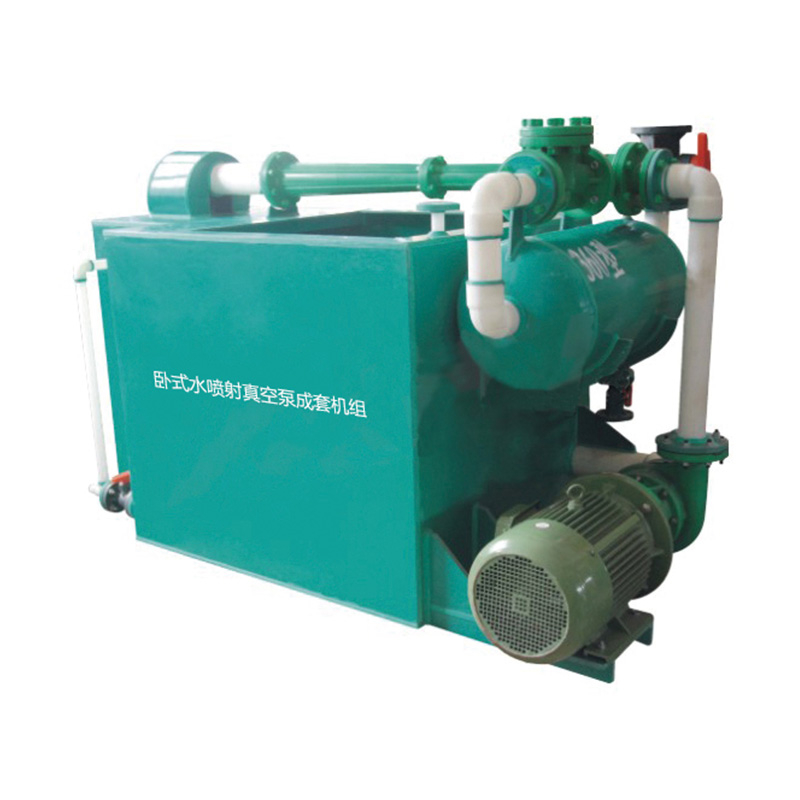

The mobile, energy-saving, and eco-friendly all-plastic horizontal water jet vacuum pump unit is entirely constructed from reinforced polypropylene, including the centrifugal pump, jet pump, ejector, buffer water tank, and check valve. The unit features a lightweight and compact design, low noise operation, corrosion resistance, non-toxicity, high vacuum efficiency, large exhaust capacity, and a well-engineered structure. It ensures reliable performance, easy installation, and convenient maintenance.

Widely used in various vacuum processes across industries such as chemical, pharmaceutical, textile, brewing, metallurgy, light industry, and environmental protection — including vacuum absorption, filtration, crystallization, concentration, drying, conveying, deodorization, deoxidization, and oxygenation. Our factory provides complete vacuum pump units, and customers may also choose from our range of corrosion-resistant accessories, including check valves, ball valves, and piping systems.

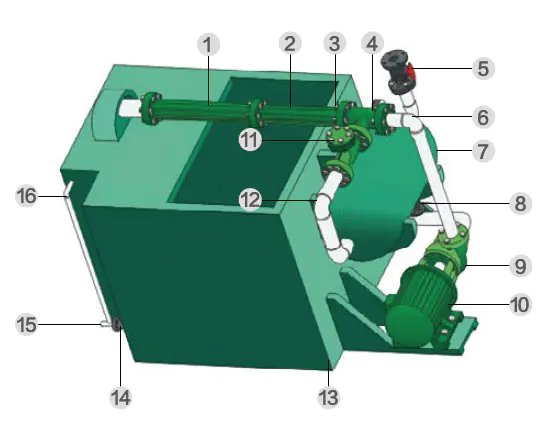

Part Material Table
No. Name No. Name
1 liner 9 Centrifugal pump
2 Short tube 10 Motor
3 Jet pump 11 Check valve
4 Vacuum table 12 Elbow pipe fittings
5 Ball valve 13 Water tanks
6 Elbow pipe fittings 14 Ball valve
7 Vacuum tank 15 Tee-fitting
8 Ball valve 16 Elbow pipe fittings

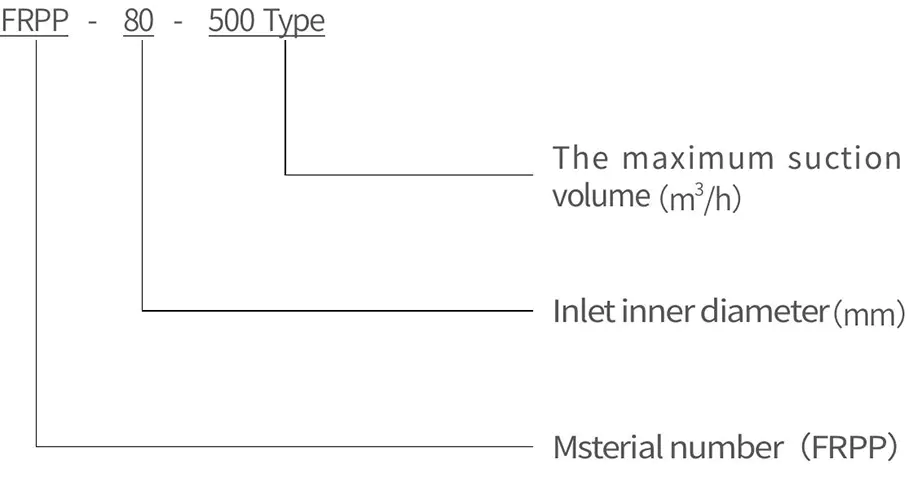

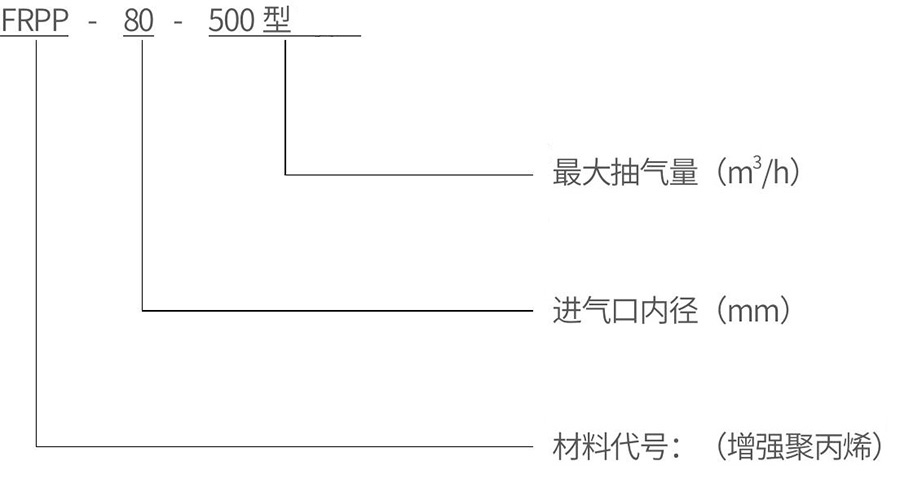

Pump Type

Whole Set Type Technical Parameters And Specifications



Type

The limit vacuum degree
Mpa

The pledge vacuum degree
Mpa

The maximum suction volume(m³ /h)

necessary centrifugal pump power
(kw)

Specifications and Dimensions for Lift-Type Check Valves

Horizontal set figuration size
long*breadth*height

remark

FRPP-25-20

0.0985

0.098

20

40FP-18(1.5)

DN40

800x600x800

Attention: Terminal vacuum is according to local
atmosphere*technology parameter ensure vacuum degree.

FRPP-54-90

0.098

0.097

90

65FP-28(4)

DN40

1500x1000x1200

FRPP-54-110

0.0985

0.0975

110

80FP(D)-30(5.5)

DN40

1500x1000x1200

FRPP-54-180

0.0993

0.098

180

30FP(D)-30(5.5)

DN50

1800x1000x1250

FRPP-54-220

0.0996

0.0984

220

80FP(D)-32(7.5)

DN50

1800x1000x1300

FRPP-65-280

0.0993

0.098

280

80FP(D)-32(7.5)

DN65

1900x1000x1300

FRPP-65-360

0.0995

0.098

360

100FP(D)-32(11)

DN65

2000x1200x1300

FRPP-80-500

0.0995

0.098

500

100FP(D)-32(15)

DN80

2500x1200x1500

Steam spray pump

0.1

0.0996

Idem

Aerated water series connection equip with 180,280,360,exhausting volumeis 40kg/h working pressure is 0.3Mpa.
