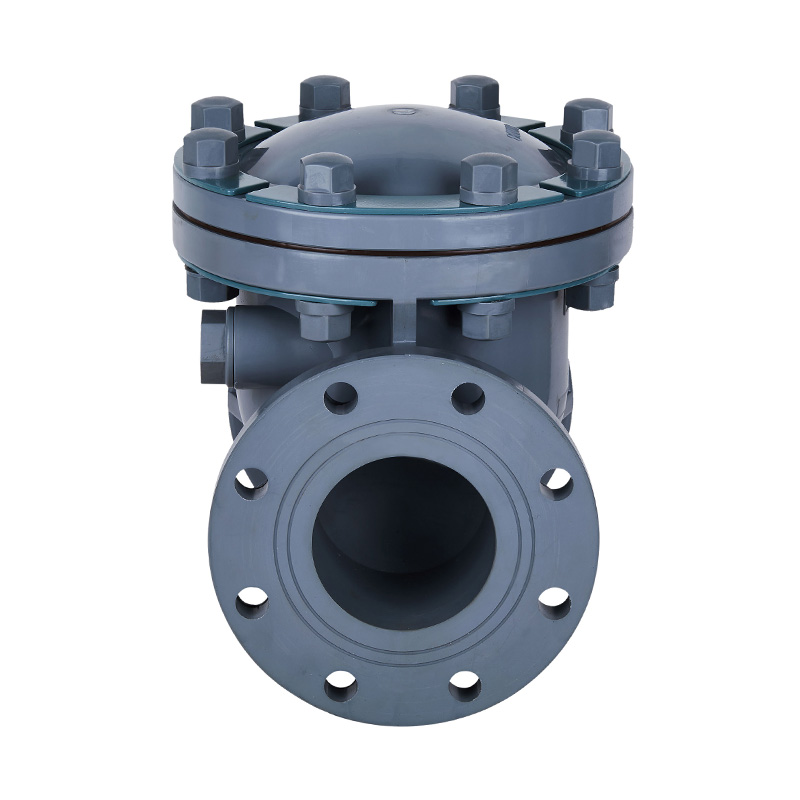

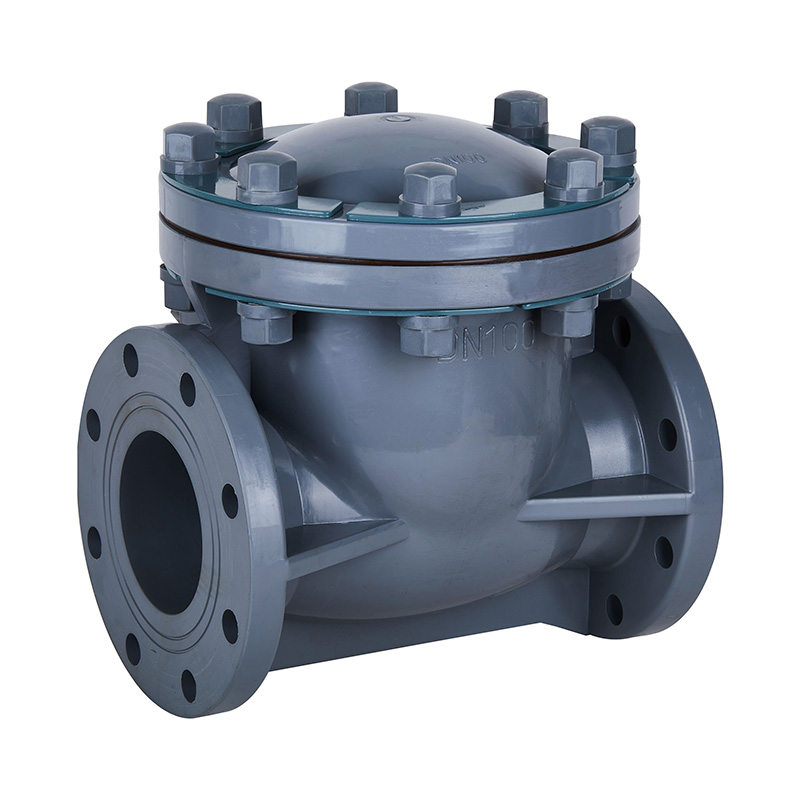

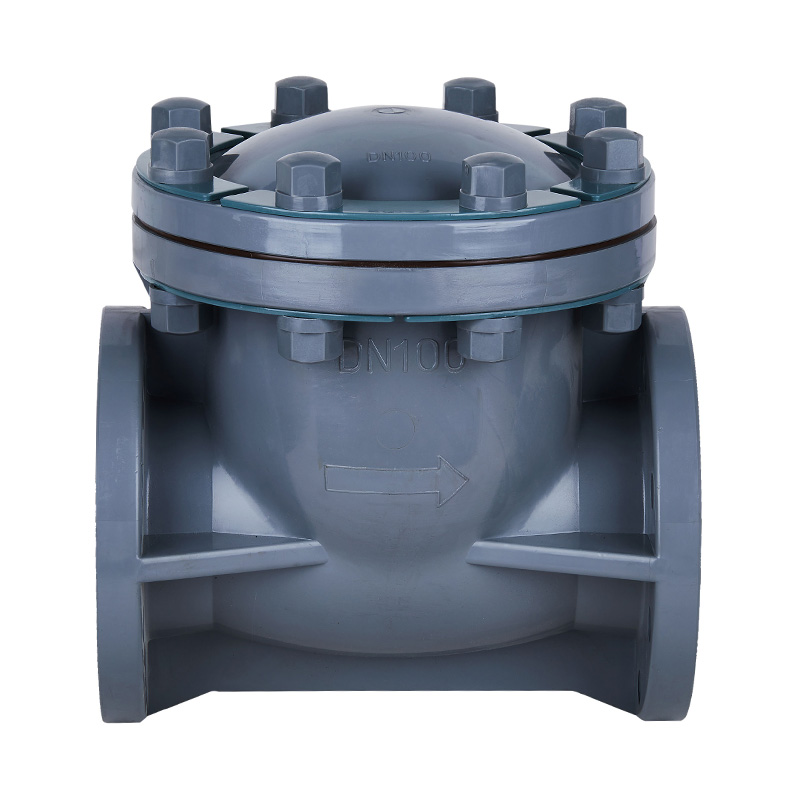

PVC-C H44F-10V Swing Type Check Valve DN15-300 1/2"-12" ANSI Standard

High-Quality Gray PVC-C Swing Check Valve DN15–DN300 PN16 6-Inch Plastic Wafer Check Valve for Chemical and Industrial Use ANSI Standard
Origin: China
Brand: KXPV
Model: H44F-10V
Application: General
Material: Plastic
Medium Temperature: Medium, Ambient
Pressure: Medium Pressure
Power Supply: Manual
Medium: Acid
Port Size: DN15–DN300
Structure: Check Valve
Product Name: Wafer Check Valve
Color: Gray
Packaging: Carton
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1.Prevents backflow of liquids, protecting pumps and other equipment.
2.As a cantilever-type check valve, it generates minimal resistance to the fluid.
3.Made from all-plastic materials, offering excellent corrosion resistance to acidic, alkaline, and other corrosive fluids.
4.The valve body can be removed from the piping, and the valve cap can be opened for internal inspection and maintenance.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

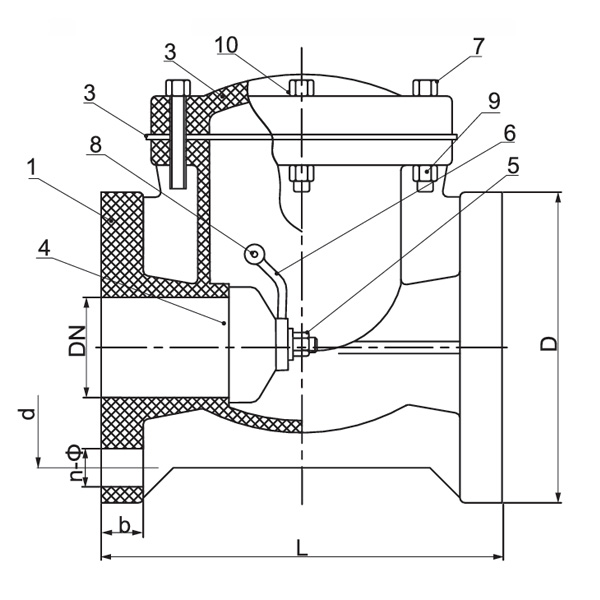

Part Material Table
No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Body PVC-C PVC-U PVDF PPH FRPP 1
2 Bonnet PVC-C PVC-U PVDF PPH FRPP 1
3 Sealing rubber FPM EPDM FPM EPDM 1
4 Door PVC-C PVC-U PVDF PPH FRPP 1
5 Retaining Screw PVC-C PVC-U PVDF PPH FRPP 1
6 Rocker PVC-C PVC-U PVDF PPH FRPP 1
7 Screw Steel SS Steel Steel 6-16
8 Connecting rod PVC-C PVC-U PVDF PPH FRPP 1
9 Nut Steel SS Steel Steel 6-32
10 Platen Steel SS Steel Steel 1



Dimension List



Specification d(mm) D(mm) L(mm) b(mm) n-Φ(mm)
1/2"(15) 60 115 160 18 4-Φ16
3/4"(20) 70 115 160 18 4-Φ16
1"(25) 79 115 160 18 4-Φ16
1½"(40) 98 145 170 20 4-Φ16
2"(50) 121 160 200 21 4-Φ19
2½"(65) 140 180 240 25 4-Φ19
3"(80) 152 197 265 26 8-Φ19
4"(100) 191 215 300 26 8-Φ19
5"(125) 216 250 350 30 8-Φ22
6"(150) 241 280 400 30 8-Φ22
8"(200) 299 340 500 30 8-Φ22
10"(250) 362 390 575 38 12-Φ25
