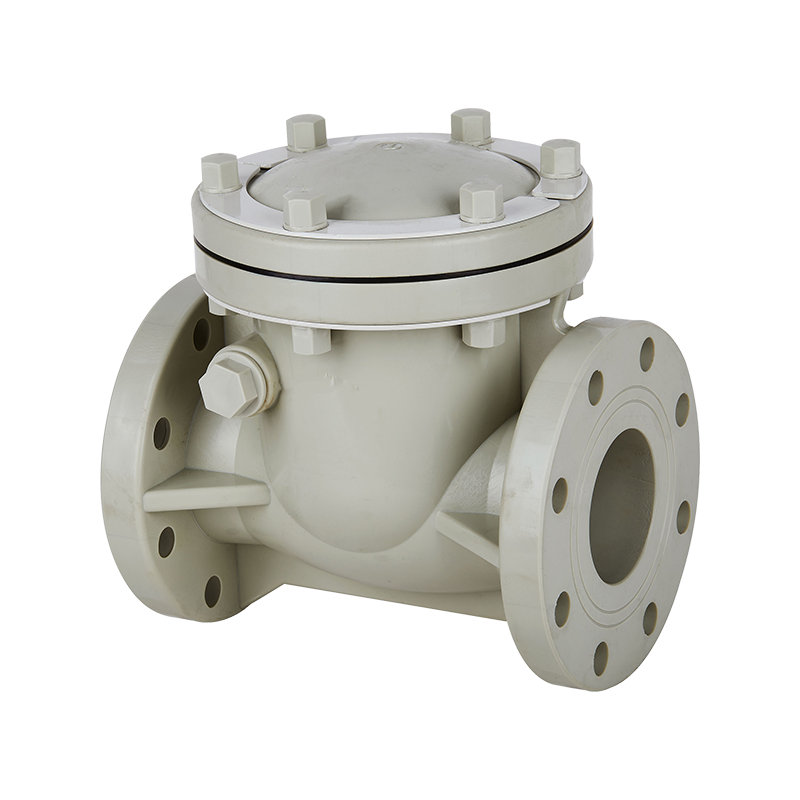

PPH Swing Type Check Valve DN15-300

Earthy Yellow PPH Swing Type Wafer Check Valve Custom 10 Inch DN15-DN300 Plastic Industrial Flap Silent Manual Check Valve For Sewage

Place of Origin:China

Brand Name:KXPV

Model Number:H44F-10S

Application:General

Material:Plastic

Temperature of Media:Medium Temperature, Normal Temperature

Pressure:Medium Pressure

Power:Manual

Media:Acid

Port Size:DN15-DN300

Structure:Check

Product name:Wafer Check valve

Color:Earthy Yellow

Packing:Carton Box

Delivery Time:7 Days

MOQ:1 Piece

PREV：PVDF Swing Type Check Valve DN15-300
NEXT：FRPP Swing Type Check Valve DN15-300 0086 180 6712 3173 Contact Us

Description
Additional Information

Main Structural Features

1.To prevent the phenomenon of liquid counter-current to protect the pump equipment.

2.Because it is a cantilever check valve, there is less resistance to flow.

3.Using all plastic materials,it plays a Strong corrosion resistance to prevent acid and alkali fluid.

4.Not only remove the valve body from the piping,but also open the bonnet for internal inspection and maintenance.

Part Material Table

No.	Name	Material
1	Cap nut	FRPP
2	Bonnet	FRPP,PVDF,CPVC,UPVC,PPH
3	Rocker	FRPP,PVDF,CPVC,UPVC,PPH
4	Capping	FRPP,PVDF,CPVC,UPVC,PPH
5	Seal ring	EPDM,FPM
6	Seal nut	FRPP,PVDF,CPVC,UPVC,PPH
7	Connecting rod	FRPP,PVDF,CPVC,UPVC,PPH
8	Body	FRPP,PVDF,CPVC,UPVC,PPH
9	Hexagon bolt	Steel,Stainless steel
10	Rubber washer	EPDM,FPM
11	Hexagon bolt	FRPP,PVDF,CPVC,UPVC,PPH
12	Filling piece	Steel,Stainless steel
13	Hex nuts	Steel,Stainless steel

Swing Type Check Valve Assembly Detail Drawing

Dimension List

DN (mm)	D1	D2			L	h	n-Φ
DN (mm)	D1	GB	JIS	ANSI	L	h	GB	JIS	ANSI
25(1")	115	85	90	3.13	160	18	4-Φ14	4-Φ19	4-Φ16
32 (11/4")	145	100	100	3.45	170	20	4-Φ18	4-Φ19	4-Φ16
40 (11/2")	145	110	105	3.88	170	20	4-Φ18	4-Φ19	4-Φ16
50 (2")	160	125	120	4.74	200	21	4-Φ18	4-Φ19	4-Φ19
65 (21/2")	180	145	140	5.49	245	25	4-Φ18	4-Φ19	4-Φ19
80 (3")	197	160	150	6	265	26	8-Φ18	8-Φ19	4-Φ19
100 (4")	215	180	175	7.5	300	26	8-Φ18	8-Φ19	8-Φ19
125 (5")	250	210	210	8.5	350	30	8-Φ18	8-Φ23	8-Φ22
150 (6")	280	240	240	9.51	400	30	8-Φ23	8-Φ23	8-Φ22
200 (8")	340	295	290	11.75	500	30	8-Φ23	12-Φ23	8-Φ22
250 (10")	390	350	355	14.25	575	38	12-Φ23	12-Φ23	12-Φ22
300 (12")	440	400	400	17	575	38	12-Φ23	16-Φ23	12-Φ22
