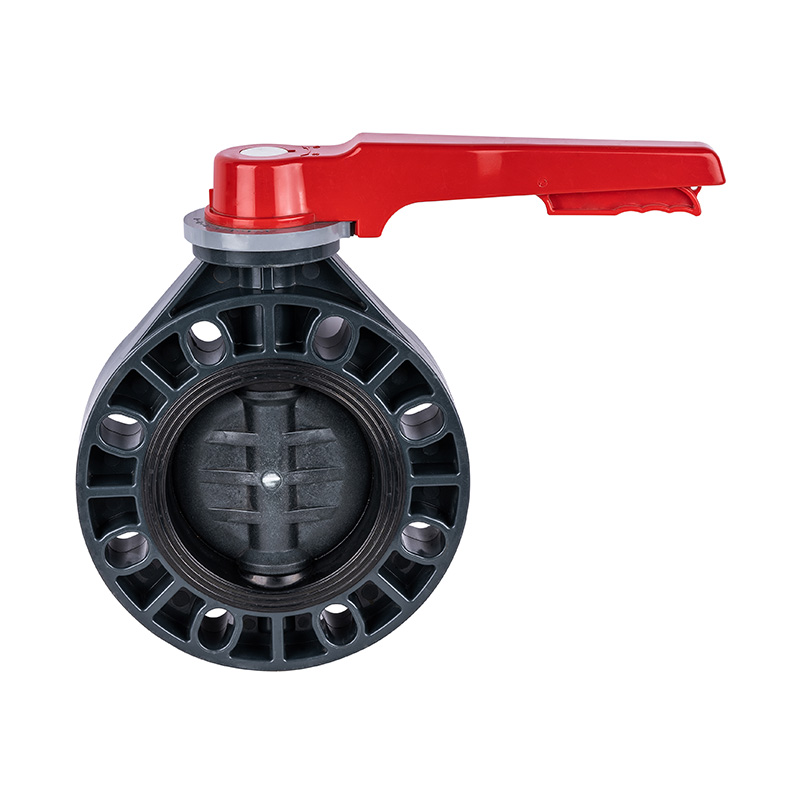

PVC-U D71X-10U Handle Butterfly Valve DN15-200 GB Standard

New Arrival PVC-U Hand Lever Butterfly Valve DN15-200 Industrial Soft Sealed Centre Sealing Plastic Valve
Model Number: DN15-200
Driving Mode: Manual
Connection Form: Wafer
Structure: Centre Sealing
Seal Form: Force Sealed
Valve Stem: Ordinary
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -5~45℃
Material of Seal Surface: Soft Sealed
Application: Industrial Usage, Water Industrial Usage
Stem: Steel,Stainless Steel
Trademark: KXPV
Specification: DN15-200
Origin: Ningbo, Zhejiang

Product Structural Features
1. The valve is small and light, easy to disassemble and repair, and can be installed at any position.
2. The structure is simple & compact, and the operating torque is small, and the 90° rotation is opened quickly.
3. The flow characteristics tend to be straight and the adjustment performance is good.
App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No.

Name

Material

1

Handle head

Alloy material

2

Hexagonal nut

Steel,StainlessSteel

3

Handle

Alloy material

4

Stem

Steel,StainlessSteel

5

Spring

Steel

6

Adjust the positioning plate

Alloy material

7

Pin

Steel

8

Locating rod

Alloy material

9

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

10

Sealing rubber

EPDM,FPM

11

Disc

FRPP,PVDF,PVC-C,PVC-U,PPH

Handle Butterfly Valve Assembly Detail Drawing



Part Material Table



NO.

Parts Name

Material

Qty.

1

Handle

Alloy material

1

2

Locating rod

Alloy material

1

3

Positioning plate

Alloy material

1

4

Nut Cup

FRPP

 4

5

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

1

6

Disc

FRPP,PVDF,PVC-C,PVC-U,PPH

1

7

Sealing rubber

EPDM, FPM

1

8

Stem

Steel,StainlessSteel

1

9

Pin

Alloy material

1

Dimension List



DN(mm) D1 D2 D3 T n-Φ
GB JIS ANSI GB JIS ANSI
40  148  110  105  98.4  45  39  4-Φ19X25 4-Φ19X25 4-Φ19X25
50  162  125  120  120.7  50  40  4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
65  180  145  140  139.7  64  42  4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
80  198  160  150  152.4  77  42  8-Φ19X25 8-Φ19X24 4-Φ19X20
100  225  180  175  190.5  96  52  8-Φ18X32 8-Φ19X32 8-Φ19X32
125  255  210  210  215.9  120  61  8-Φ23X33 8-Φ23X33 8-Φ23X33
150  285  240  240  241.3  145  71  8-Φ23X34 8-Φ23X34 8-Φ23X34
200  340  295  290  298.5  196.5  81  8-Φ23X33.5 12-Φ23×27 8-Φ23x33.5
