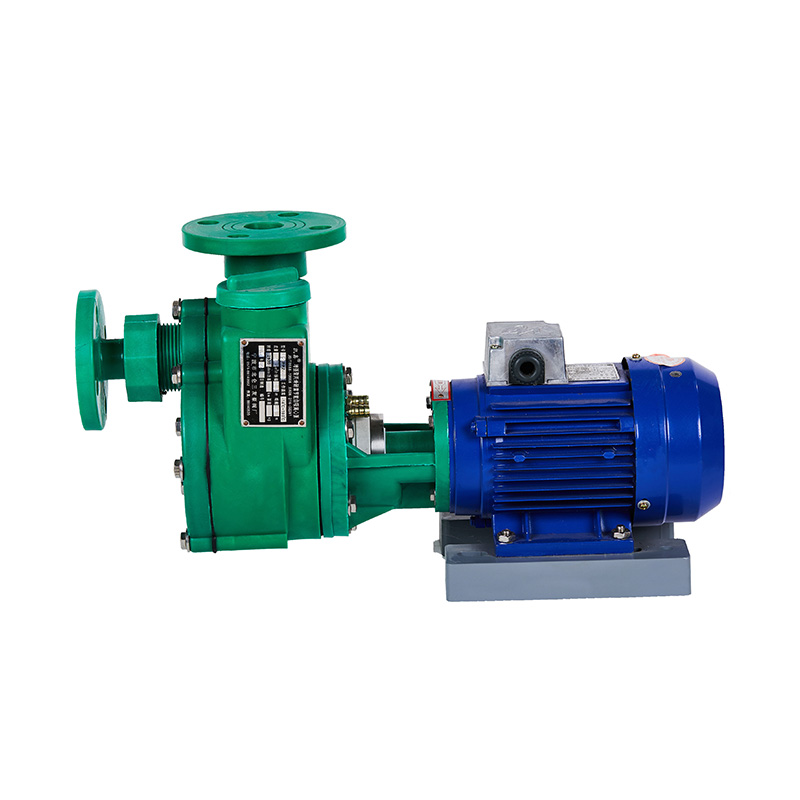

FPZ Direct Type Self-Priming Pump

FPZ Direct Type Self-Priming Pump

Custom FV Series Corrosion Resistant Direct Connection Plastic Self priming Pump High Pressure Mini PVDF Corrosion Resistant Direct Type Self Sucking Priming Monoblock Pump

Brand Name:KXPV

Place of Origin:Zhejiang, China

Pressure:High Pressure

Structure:Direct Type Centrifugal Pump

Product name:Centrifugal Pump

Material:PVDF

Colour:Green And White

Type:Direct

Size:25FVZ-8D(0.55KW)--- 100FVZ-32D(15kw)

Delivery time:7 Days

MOQ:1piece

Power:Electric

Usage:Industry

Application:Chemical

Supply Ability:10000 Piece/Pieces per Month

PREV：No previous product
NEXT：FPZ Shaft Type Self-Priming Pump 0086 180 6712 3173 Contact Us
  • Description
  • Additional Information
  • PVDF&FRPP Pumps Specification

    Our factory specializes in the production of four series (FV, FP, FVZ, FPZ) of the four series (FV, FP, FVZ, FPZ) of PVDF and FRPP centrifugal pump and the self-priming pump.The PVDF pump is suitable for strong acid, strong oxidizer, halogen, aromatic hydrocarbons, chemical media such as fat, chlorinated solvents, practical temperature to-40 ° C to + 140 ° C . The FRPP pump is suitable for strong alkali, acid & alkali salts and its derivatives commonly.For secondary pump drive general Y type energy-saving motor, and it’s operating temperature is -40 ° C —+90 ° C .The explosion proof motor only supplied with according requisition.With special requirements for flow, lift, rotating speed and power, our factory can provide technical service to meet customer's requirement

    PUMP TYPE

    Centrifugal Pump/Self-Priming Pump Flow Graph

    Installation Maintenance



    1.After long-distance transportation,the pump should be checked before installation , whether the parts of pump machine are intact, the fasteners are loose, and should be re-tightened to check the concentricity of the shaft of the pump shaft and motor shaft. If there is any loose,it should be corrected.The pump should be check before installation especially for the spare parts; shaft connection and locks should be a djusted on the right position tightly.
    2.The pump body is all PVDF and FRPP resin injection molding,so the inlet and outlet pipe lines should have support or suspension structure, should not be supported only by the joint flanges. The inlet pipeline should not have more than 2pcs 90° elbow. The FP, FV type centrifugal pump shall be installed at the front end of the suction tube to ensure that the pump is filled with liquid before starting the pump.The suction nozzle or the bottom valve shall be installed with a strainer, or a strainer shall be installed at the inlet to prevent the sundries from being sucked into the pump and ensure that the pump can function properly.
    3.All connection should be tight and without leakage of air, otherwise the pump will not working properly and give the designed flow and lift.



    Self-Priming Pump

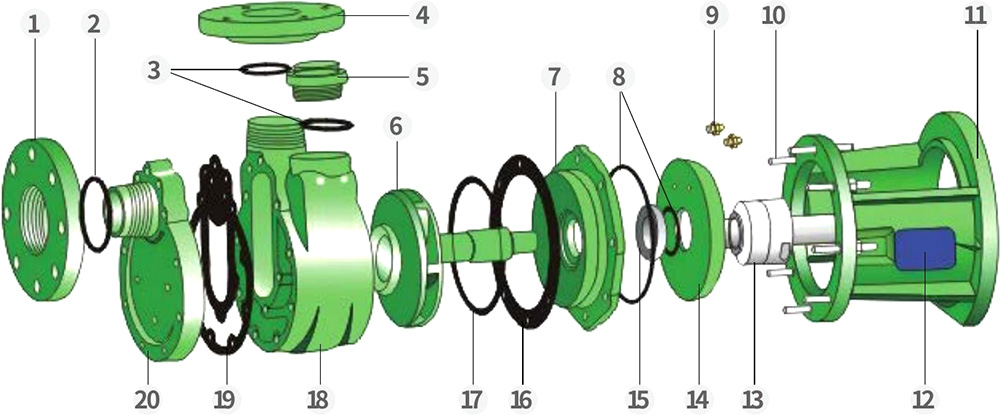

    Direct Connection Type Self-priming Pump Assembly Detail Drawing

    Part Material Table

    No.

    Name

    Material

    1

    Inlet flange

    FRPP,PVDF

    2

    Ring

    EPDM'FPM

    3

    Ring

    EPDM,FPM

    4

    Pump body

    FRPP,PVDF

    5

    Fluid injectin lid

    FRPP,PVDF

    6

    Impeller shaft

    FRPP/ Steel PVDF Steel

    7

    Back cover

    FRPP,PVDF

    8

    Ring

    EPDM,FPM

    9

    Cooling water cover

    Steel

    10

     Double headed stud

    Steel,Stainless steel

    11

    Suppot

    Aluminum

    12

    Date plate

    FRPP,PVDF

    13

    The mechanical seal moves

    Sic

    14

     Cools the lid

    FRPP

    15

    Mechanical seal static link

    Sic

    16

    Seal film

    EPDM'FPM

    17

    Ring

    EPDM,FPM

    18

    Self-priming pump pump body

    FRPP,PVDF

    19

    Door

    EPDM'FPM

    20

    Front cover

    FRPP,PVDF
    Fpv Self-Priming Pump

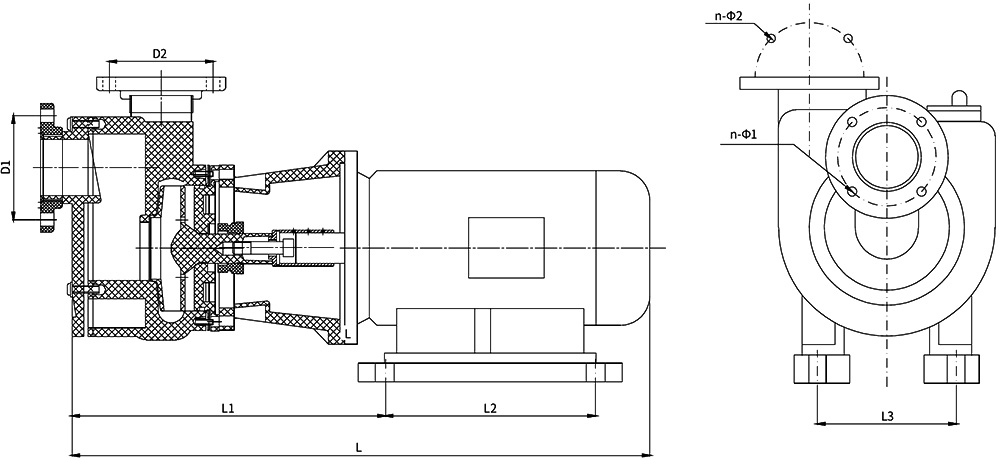

    DIMENSION LIST              UNIT：mm

    Type/
    Dimension

    Installed size

    Inlet flange

    Pump body

    L

    LI

    L2

    L3

    D1(Φ)

    n-Φ1

    D2

    n-Φ2

    25F

    		 p (D)-8

    500

    300

    145

    110

    25

    Shrink

    Φ25

    Shrink
    v

    32F

    		 p (D)-11

    500

    300

    145

    110

    32

    Shrink

    Φ25

    Shrink
    v

    40F

    		 p (D)-18

    560

    320

    145

    140

    110

    4-Φ18

    100

    4-Φ18
    v

    50F

    		 p (D)-22

    590

    320

    145

    140

    125

    4-Φ18

    110

    4-Φ18
    v

    80F

    		 p (D)-30

    750

    415

    140

    325

    160

    8-Φ18

    145

    4-Φ18
    v

    80F

    		 p (D)-32

    750

    415

    140

    325

    160

    8-Φ18

    145

    4-Φ18
    v
