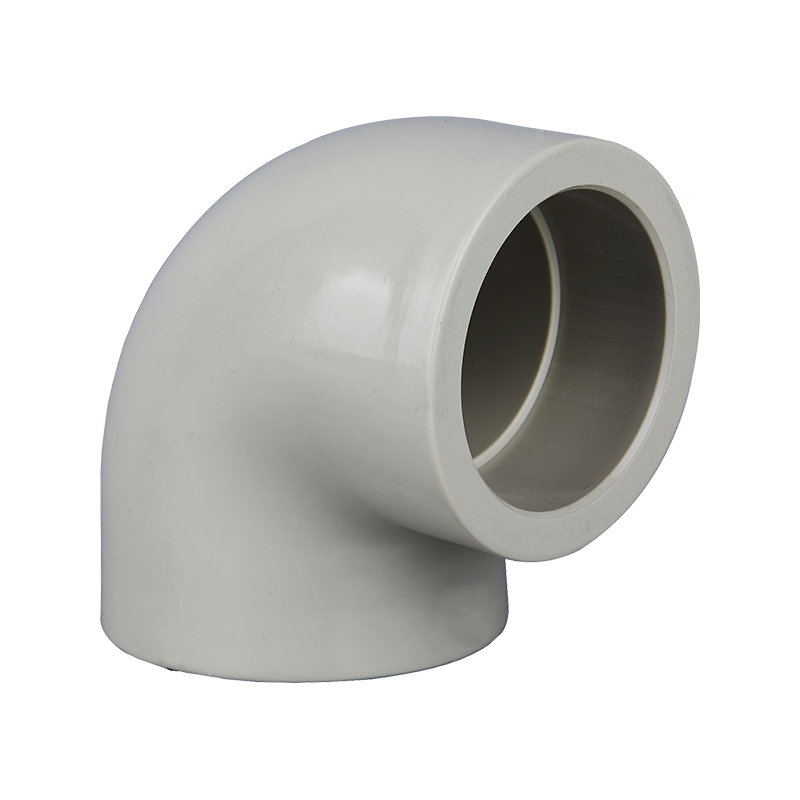

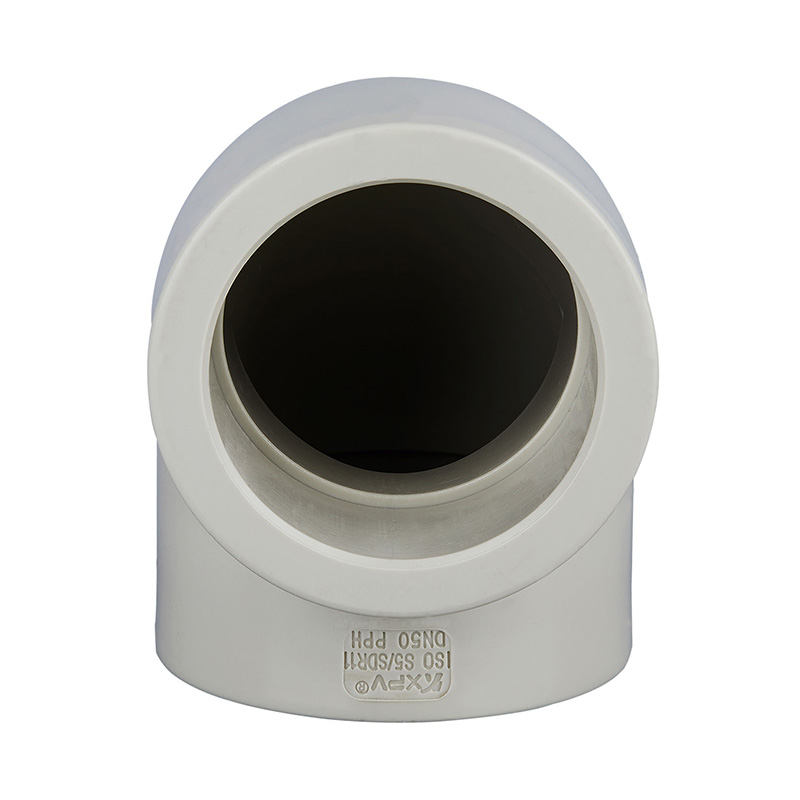

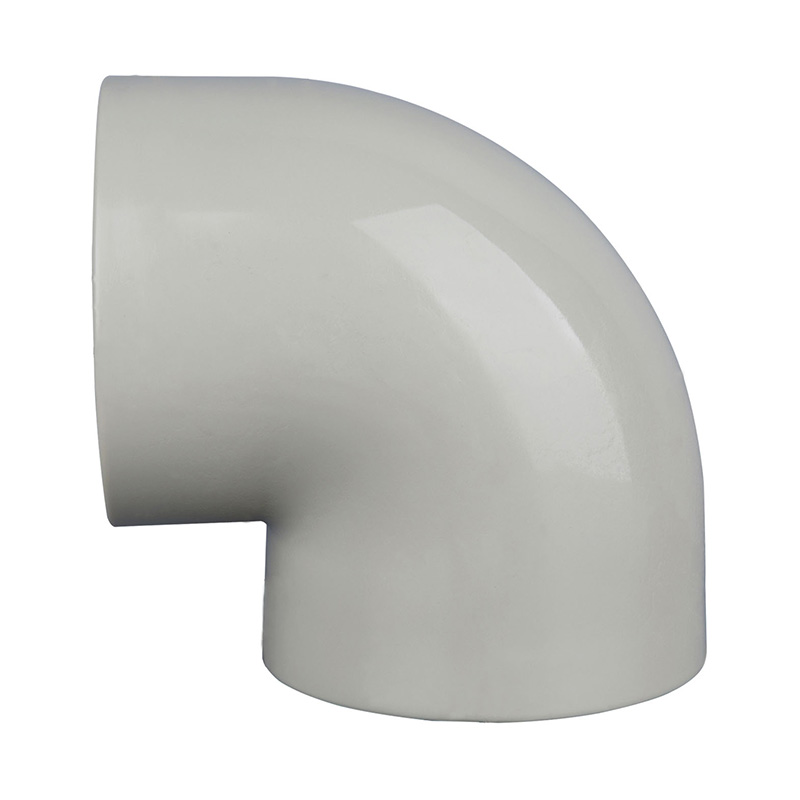

PPH Hot Melt Socket 90° Elbow DN15-100 GB Standard

High Quality Earthy Yellow CPVC 90° Elbow Equal shape DN15-DN100 1.0-1.6Mpa Working Pressure Plastic Pipe Fitting For Chemical And water industry
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Equal
Material: CPV
Color: Earthy Yellow
Head Code: Square
Color: Earthy Yellow
Size: DN15-DN100
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

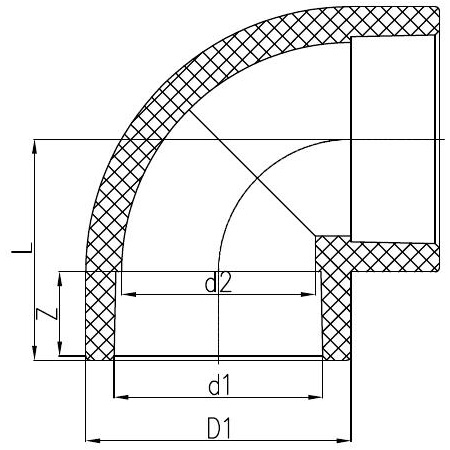

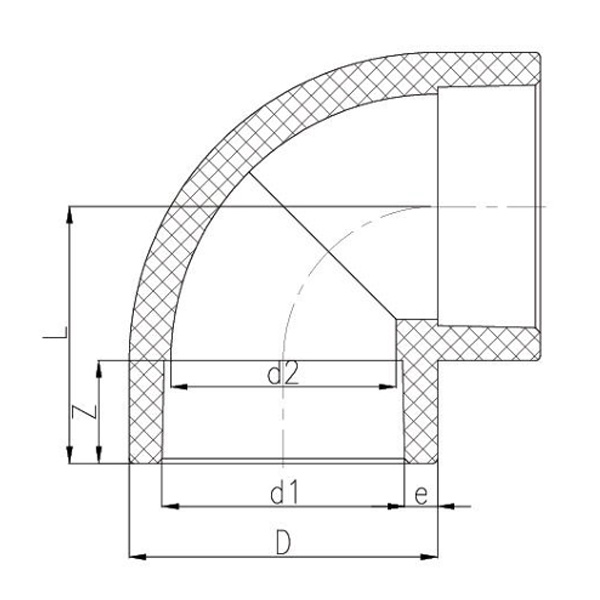

PPH Hot Melt Socket 90° Elbow

DN D d1 d2 L Z e
15  26  20  16  28  15
20  31  25  20  32  18
25  39  32  26.5  38  20  3.5
32  51  40  34.5  47.5  22  5.5
40  63.5  50  44.5  57  25  6.75
50  80  63  57  68.5  28  8.5
65  92  75  68  77.5  31  8.5
80  109  90  80  90  35  9.5
100  132  110  100  108  41  11
