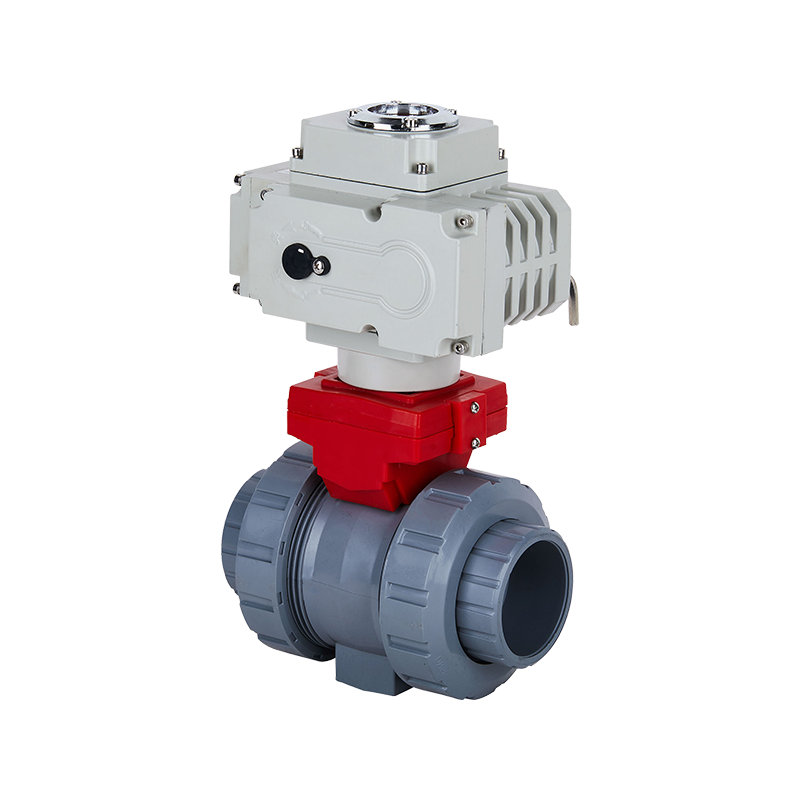

High Temperature Grey Plastic UPVC Industrial Chemical Valve Motorized Electric Actuated Socket Welded Ball Valve for water and Agriculture industry
Application:General
Temperature of Media:High Temperature
Power:Pneumatic
Media:Acid
Port Size:DN15-100
Structure:Ball
Product name:Electric Actuated flange Ball Valve
Color:Grey
Connection:Socket Welded
Standard:ANSI BS DIN JIS
Working pressure:1.0-1.6Mpa (10-25bar)
Brand:kxpv
Suitable medium:Chemical Industry
Body material:UPVC
Warranty:12 Months
Packing:Standard Carton Box
Part material list |
No. | Name | Number | Material |
1 | Electric actuators | 1 | Aluminum alloy |
2 | Stem | 1 | RPP、UPVC、CPVC、PVDF、PPH |
3 | Limit circle | 1 | RPP、UPVC、CPVC、PVDF、PPH |
4 | Stents | 1 | Steel |
5 | Body | 1 | RPP、UPVC、CPVC、PVDF、PPH |
6 | Sealing ring | 4/5 | PTFE |
7 | Sealing ring | 2 | PTFE |
8 | Ball | 1 | RPP、UPVC、CPVC、PVDF、PPH |
9 | Seal seat | 1 | RPP、UPVC、CPVC、PVDF、PPH |

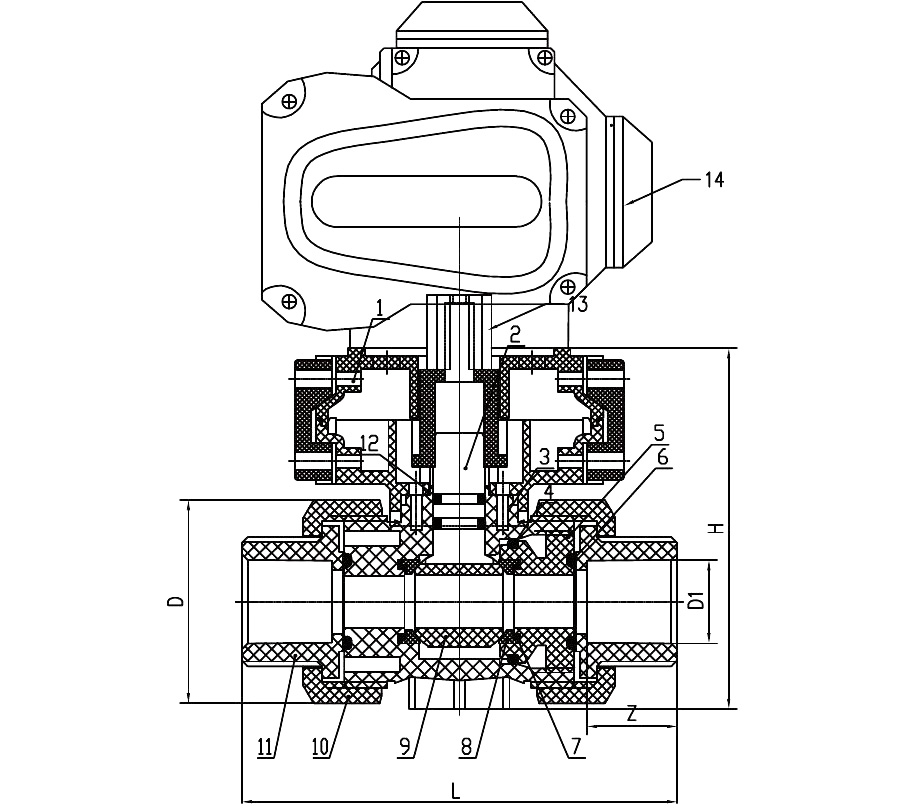

Dimension List |
