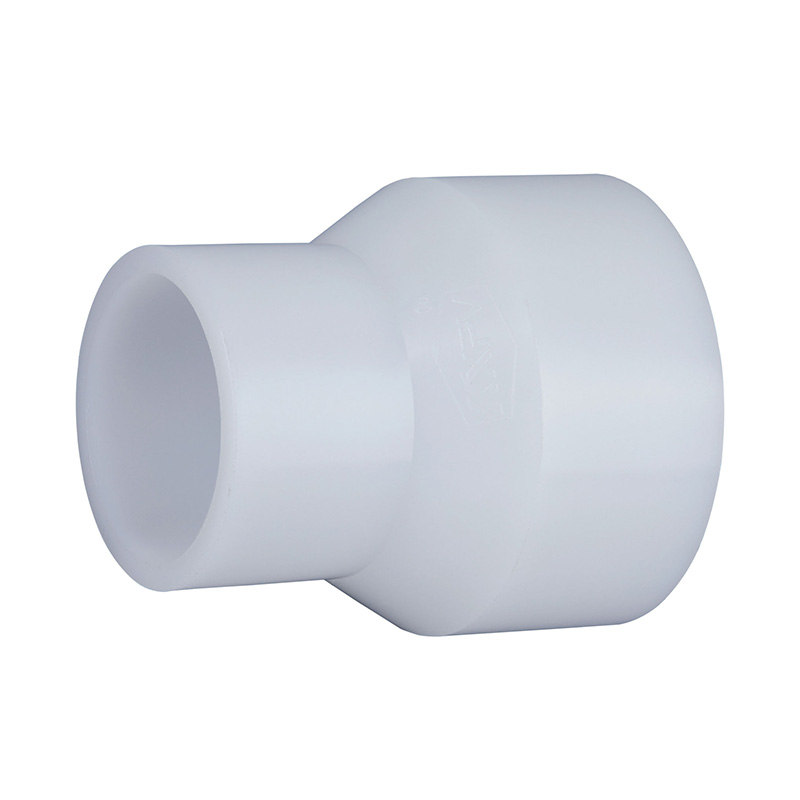

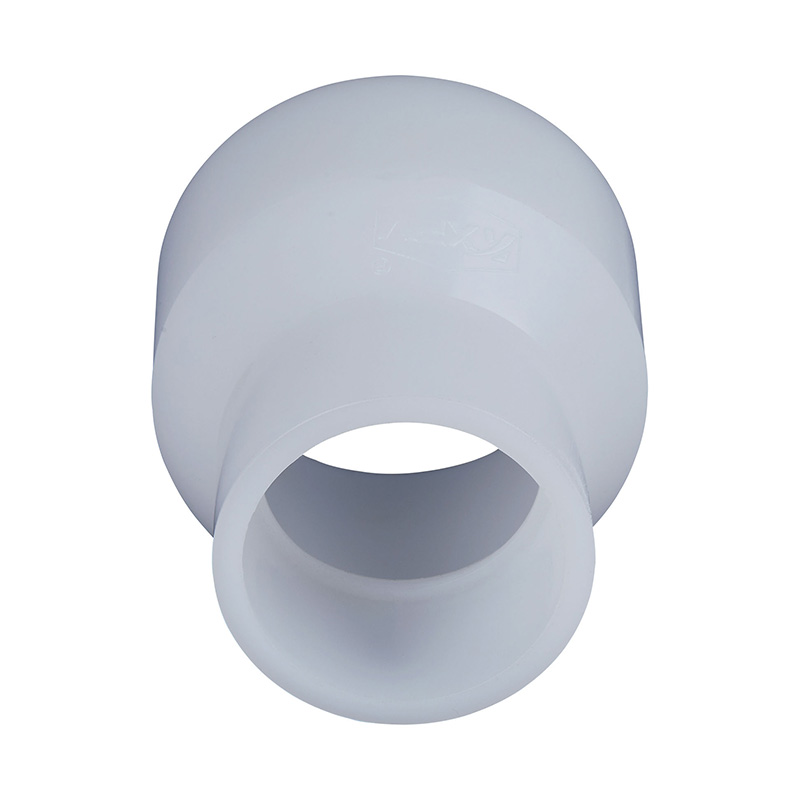

PVDF Hot Melt Socket Reducer DN15*20-100*80 GB Standard

PVDF Hot Melt Socket Reducer DN15*20-100*80 GB Standard

White PVDF pipe end caps DN15*20-100*80 industrial plastic reducer fittings for chemical and water supply applications
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: Socket
Material: PVDF
Shape: Equal
Head Code: Square
Color: White
Size: DN15*20-100*80
Application: Industry
Packing: Carton Box
Working Pressure: 1.6MPA
Delivery Time: 7 Days
MOQ: 1 Piece

Contact Us
PREV：PVDF Hot Melt Socket Coupling DN15-100 GB Standard
NEXT：PVDF Hot Melt Socket End Cap DN15-100 GB Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Excellent heat resistance and high dielectric strength
PVDF has a highly regular molecular structure. The fluorine and chlorine atoms in the molecule are of similar size, resulting in densely packed polymer chains and strong hydrogen bonding. Consequently, the polymer exhibits high tensile strength, compressive strength, and impact toughness. PVDF also has a melting point of around 170°C, offering excellent processability and easy molding.
2. Wear resistance, high mechanical strength, and toughness
It boasts exceptional toughness among fluoroplastics, a low coefficient of friction, and aging resistance, resulting in strong wear and impact resistance. Furthermore, it exhibits high resistance to fading and UV rays in harsh and hostile environments.
3. Weather resistance, UV resistance, and nuclear radiation resistance
It boasts high purity, excellent chemical stability, corrosion resistance, high temperature resistance, high barrier properties, oxidation resistance, weather resistance, and radiation resistance, as well as special properties such as piezoelectricity, dielectricity, and thermoelectricity.
4. Wide range of applications
PVDF piping systems are widely used in the storage and transportation of high-purity chemicals in the petrochemical, electrical and electronic industries, fluorocarbon coatings, nuclear power projects, the semiconductor industry, and the petrochemical industry.

PVDF Male Adaptor

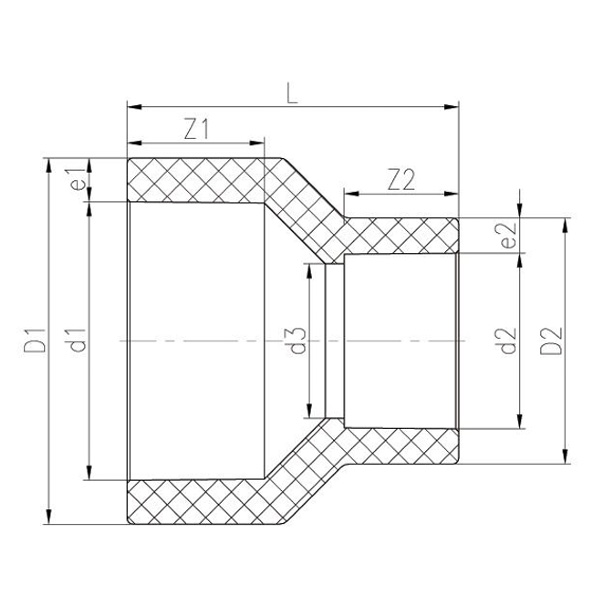

DN D1 D2 d1 d2 d3 L Z1 Z2 e1 e2
20*15 35  29  25  20  16  40  18  15  5  4.5
25*15 43  29  32  20  16  46  20  15  5.5  4.5
25*20 43  35  32  25  20  47  20  18  5.5  5
32*20 51  35  40  25  20  53  22  18  5.5  5
32*25 51  43  40  32  27  52  22  20  5.5  5.5
40*20 64  35  50  25  20  60  24  18  7  5
40*25 64  43  50  32  27  58  24  20  7  5.5
40*32 64  51  50  40  35  56  24  22  7  5.5
50*25 82  44  63  32  27  70  28.5  20.5  9.5  6
50*32 82  52  63  40  36  68  28.5  22.5  9.5  6
50*40 82  65  63  50  46  65  28.5  24.5  9.5  7.5
65*32 94  52  75  40  36  76  31  22  9.5  6
65*40 94  65  75  50  45  73  31  24  9.5  7.5
65*50 94  82  75  63  57  71  31  28  9.5  9.5
80*40 115.5  66  90  50  45  85  35  24  13  8
80*50 115.5  82.5  90  63  56  83  35  28  13  10
80*65 116  95  90  75  68  80  35  31.5  13  10
100*40 134  64.5  110  50  45  99  41  24  12  7.5
100*50 134  81.5  110  63  56.5  97  41  28  12  9.5
100*65 134  93  110  75  67.5  95  41  31  12  9
100*80 136  116  110  90  82  93.5  41  36  13  13
