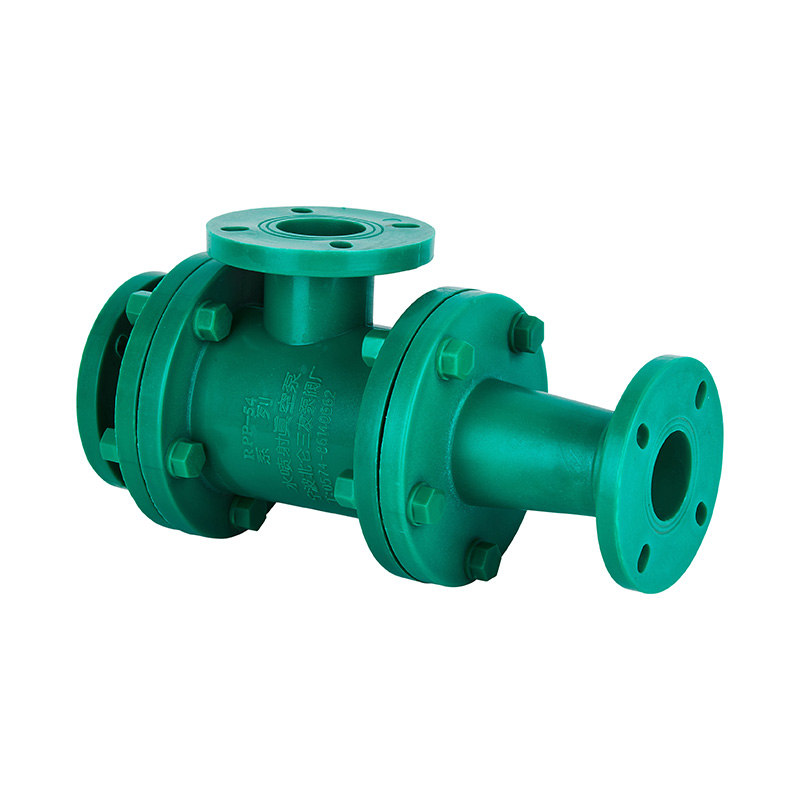

RPP Jet Pump GB Standard

Custom Low Noise Aerated Water Series Connection Jet Pump Plastic FRPP/RPP Jet Water Pump For Water and Chemical Industry
Brand Name: KXPV
Place of Origin: Ningbo, Zhejiang
Application:Water Treatment Solutions, Chemical
Structure:Ejector Pump
Outlet Size:custom
Material: FRPP
Color: Green
Voltage: Custom
Power: Electric
Pressure: High Pressure
Product name: Jet Pump
Feature:Low Noise
Size: FRPP-25-20/FRPP-80-500
Delivery time: 7 Days
MOQ: 1 piece
Usage: Industry
Supply Ability: 10000 Piece/Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

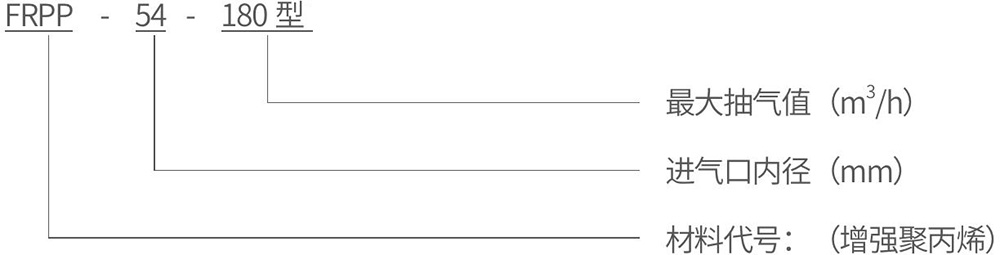

Pump Type

Part Material Table

No.

Name

Material

1

Inlet flange

FRPP,PVDF

2

Ring

EPDM,FPM

3

Ring

EPDM,FPM

4

Pump body

FRPP,PVDF

5

Fluid injection lid

FRPP,PVDF

6

Seal film

EPDM,FPM

7

Ring

EPDM,FPM

8

Cools the lid

FRPP,PVDF

9

Cooling water cover

Steel



Application Scope And Features

The mobile, energy-saving, and eco-friendly all-plastic horizontal water jet vacuum pump unit is entirely constructed from reinforced polypropylene, including the centrifugal pump, jet pump, ejector, buffer water tank, and check valve. The unit features a lightweight and compact design, low noise operation, corrosion resistance, non-toxicity, high vacuum efficiency, large exhaust capacity, and a well-engineered structure. It ensures reliable performance, easy installation, and convenient maintenance.

Widely used in various vacuum processes across industries such as chemical, pharmaceutical, textile, brewing, metallurgy, light industry, and environmental protection — including vacuum absorption, filtration, crystallization, concentration, drying, conveying, deodorization, deoxidization, and oxygenation. Our factory provides complete vacuum pump units, and customers may also choose from our range of corrosion-resistant accessories, including check valves, ball valves, and piping systems.

FRPP

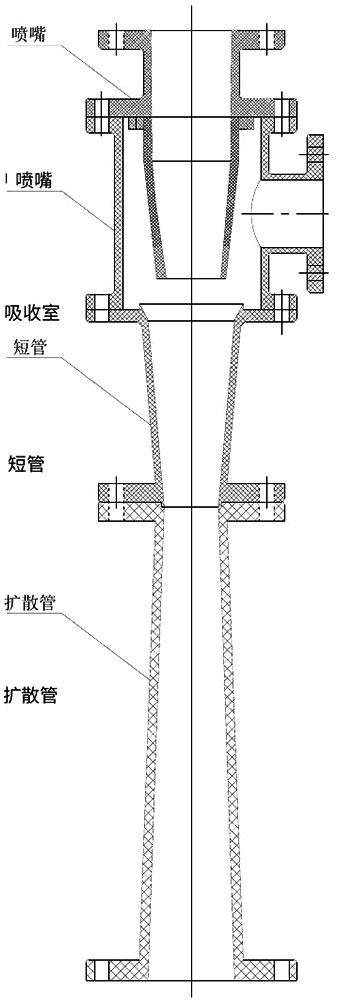

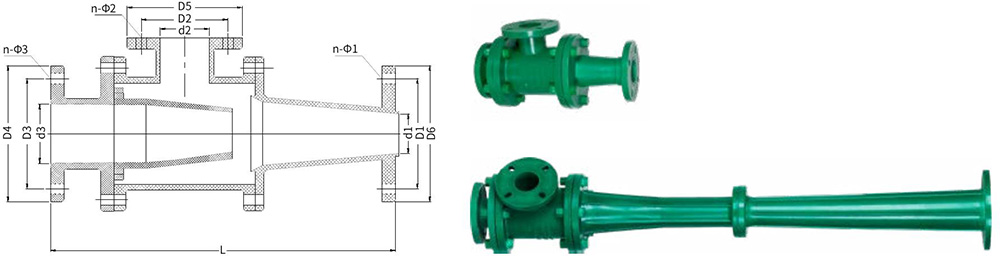

Aerated Water Series Connection Jet Pump Assembly Detail Drawing

Part Material Table



No.

Name

Material

1

Spray mouth

FRPP,PVDF

2

Rubber pads

EPDM,FPM

3

Absorb room

FRPP,PVDF

4

Hexagonal bolts and nuts

Steel

5

Rubber pads

EPDM,FPM

6

2 long nozzle

FRPP,PVDF

7

Hexagonal bolts and nuts

Steel

8

Rubber pads

EPDM,FPM

9

Expand pipe

FRPP,PVDF

Whole Set Type Technical Parameters And Specifications

Type The limit vacuum degree
Mpa
The pledge vacuum degree
Mpa
The maximum suction volume
(m3/h)
necessary centrifugal pump power
(kw)
Horizontal set figuration size
long*breadth*height
remark
FRPP-25-20 0.0985 0.098 20 40FP(D)-20(1.5) 800x600x800 Attention: Terminal vacuum is according to local
atmosphere*technology parameter ensure vacuum degree.
FRPP-32-30 0.0985 0.098 30 50FP(D)-22(2.2) 800x700x800
FRPP-40-60 0.098 0.097 60 40FP(D)-25(3) 1500x900x1150
FRPP-54-90 0.098 0.097 90 50FP(D)-28(4) 1500x1000x1200
FRPP-54-110 0.0985 0.0975 110 80FP(D)-30(5.5) 1500x1000x1200
FRPP-54-180 0.0993 0.098 180 80FP(D)-30(5.5) 1800x1000x1250
FRPP-54-220 0.0996 0.0984 220 100FP(D)-32(15) 1850x1000x1300
FRPP-65-280 0.0993 0.098 280 80FP(D)-32(7.5) 1900x1000x1300
FRPP-65-360 0.0995 0.098 360 100FP(D)-32(11) 2000x1200x1300
FRPP-80-500 0.0995 0.098 500 100FP(D)-32(15) 2000x1200x1500
Steam spray pump 0.1 0.0996 Idem Aerated water series connection equip with 180,280,360, working pressure is 0.3Mpa.





FRPP

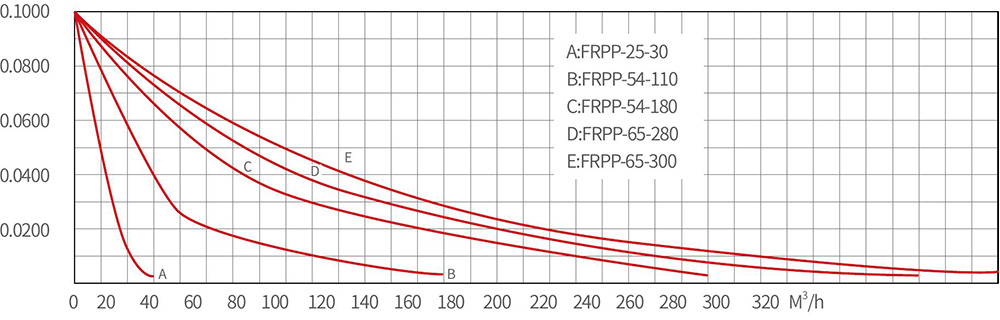

FRPP Type Spb Water Jet Vacuum Pump Measured Parameter Performance Curve

真空度 Mpa
