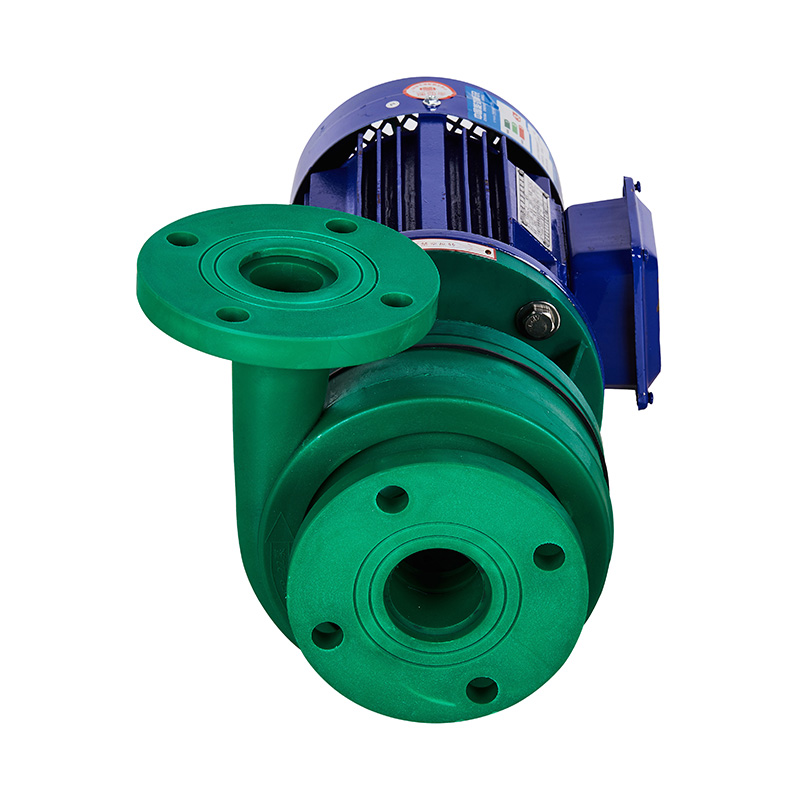

FP Direct Type Centrifugal Pump

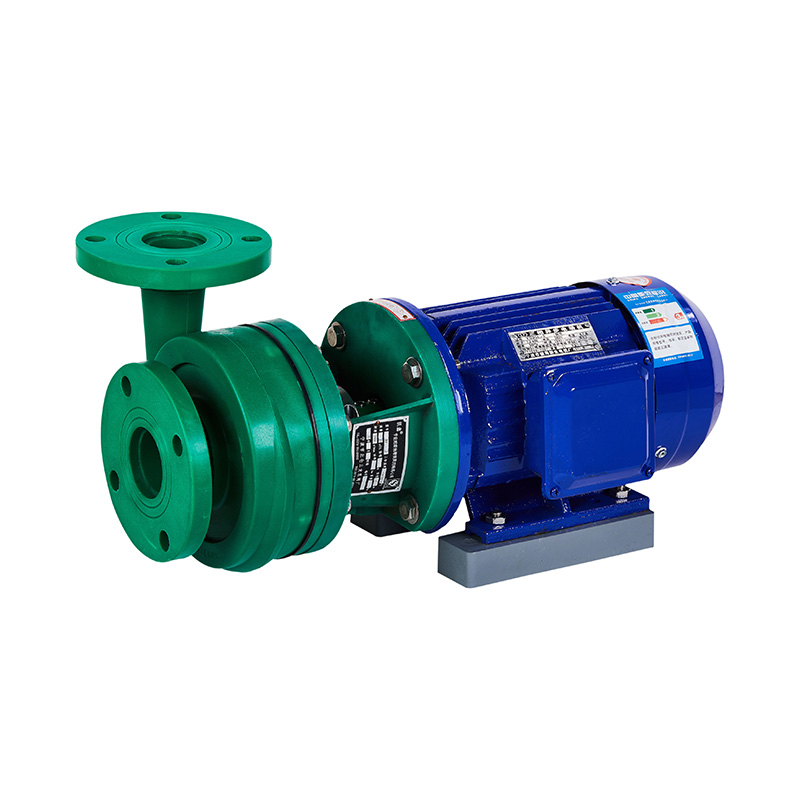

FP Direct Type Centrifugal Pump

0086 180 6712 3173 Contact Us
  • Description
  • Additional Information
  • PVDF&FRPP Pumps Specification

    Our factory specializes in the production of four series (FV, FP, FVZ, FPZ) of the four series (FV, FP, FVZ, FPZ) of PVDF and FRPP centrifugal pump and the self-priming pump.The PVDF pump is suitable for strong acid, strong oxidizer, halogen, aromatic hydrocarbons, chemical media such as fat, chlorinated solvents, practical temperature to-40 ° C to + 140 ° C . The FRPP pump is suitable for strong alkali, acid & alkali salts and its derivatives commonly.For secondary pump drive general Y type energy-saving motor, and it’s operating temperature is -40 ° C —+90 ° C .The explosion proof motor only supplied with according requisition.With special requirements for flow, lift, rotating speed and power, our factory can provide technical service to meet customer's requirement

    PUMP TYPE

    Centrifugal Pump/Self-Priming Pump Flow Graph

    Installation Maintenance



    1.After long-distance transportation,the pump should be checked before installation , whether the parts of pump machine are intact, the fasteners are loose, and should be re-tightened to check the concentricity of the shaft of the pump shaft and motor shaft. If there is any loose,it should be corrected.The pump should be check before installation especially for the spare parts; shaft connection and locks should be a djusted on the right position tightly.
    2.The pump body is all PVDF and FRPP resin injection molding,so the inlet and outlet pipe lines should have support or suspension structure, should not be supported only by the joint flanges. The inlet pipeline should not have more than 2pcs 90° elbow. The FP, FV type centrifugal pump shall be installed at the front end of the suction tube to ensure that the pump is filled with liquid before starting the pump.The suction nozzle or the bottom valve shall be installed with a strainer, or a strainer shall be installed at the inlet to prevent the sundries from being sucked into the pump and ensure that the pump can function properly.
    3.All connection should be tight and without leakage of air, otherwise the pump will not working properly and give the designed flow and lift.



    Centrifugal Pump



    Shaft Connection Type Centrifugal Pump Assembly Detail Drawing

    Part Material Table

    No.

    Name

    Material

    1

    Ring

    EPDM，FPM

    2

    Pump body

    FRPP,PVDF

    3

    Ring

    EPDM,FPM

    4

    Ring

    EPDM,FPM

    5

    Cooling water cover

    Steel

    6

    Double headed stud

    Steel, Stain less steel

    7

    Oil-hole plug

    FRPP

    8

    Carrying axle

    Steel

    9

    Coupling

    Cast iron

    10

    Date plate

    Aluminum

    11

    Suppot

    FRPP/Cast iron PVDF/Cast iron

    12

    The mechanical seal moves

    Sic

    13

    Coola the lid

    FRPP

    14

    Mechanical seal static link

    Sic

    15

    Cover

    FRPP,PVDF

    16

    Seal film

    EPDM，FPM

    17

    Impeller

    FRPP/  Steel PVDF  Steel

    18

    Pump body

    FRPP,PVDF

    19

    Pump body

    FRPP,PVDF

    Fpv Centrifugal Pump



     DIMENSION LIST                                                     UNIT：mm

    Type/
    Dimension


    Installed size


    Inlet flange


    Pump body

    L

    L1

    L2

    B1

    B2

    H

    H1

    4-Φ

    D1

    n-Φ2

    D2

    n-Φ1

    40F

    		 p (D)-25

    830

    		 185

    415

    245

    340

    310

    170

    4-16

    110

    4-18

    100

    4-18
    v

    50F

    		 p (D)-28

    840

    300

    430

    250

    340

    322

    170

    4-16

    125

    4-18

    110

    4-18
    v

    65F

    		 p (D)-26

    850

    295

    430

    250

    		 340

    345

    182

    4-16

    145

    4-18

    125

    4-18
    v

    80F

    		 p (D)-30

    960

    330

    430

    250

    340

    380

    185

    4-16

    160

    8-18

    145

    4-18
    v

    80F

    		 p (D)-32

    960

    330

    		 430 250

    340

    380

    185

    4-16

    160

    8-18

    145

    4-18
    v

    100F

    		 p (D)-20

    1140

    275

    635

    285

    405

    450

    250

    4-18

    180

    8-18

    160

    8-18
    v

    100F

    		 p (D)-32 1200

    275

    635

    285

    405

    450

    250

    4-18

    180

    8-18

    160

    8-18
    v
