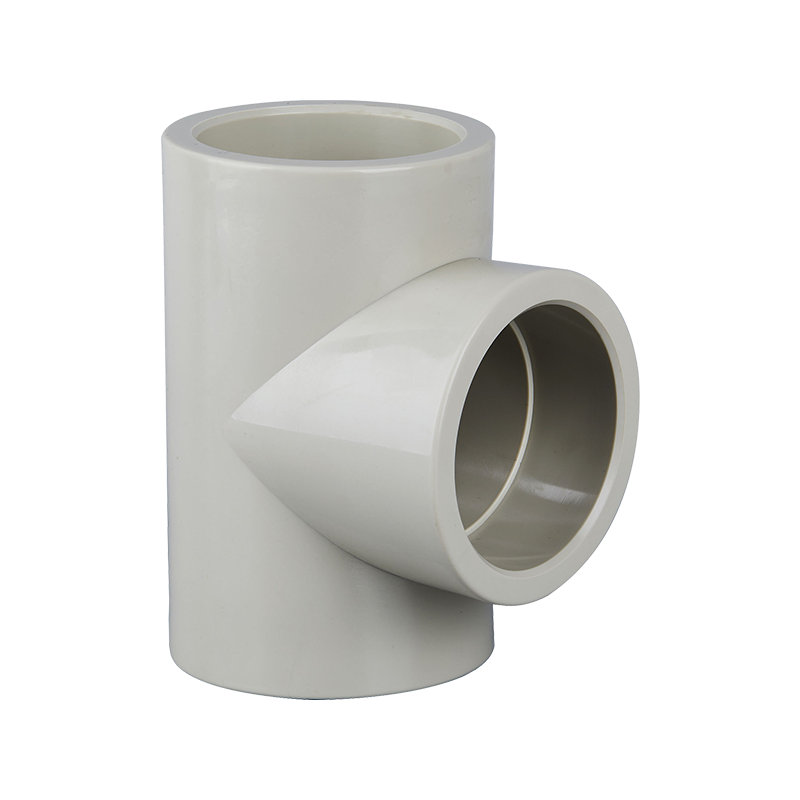

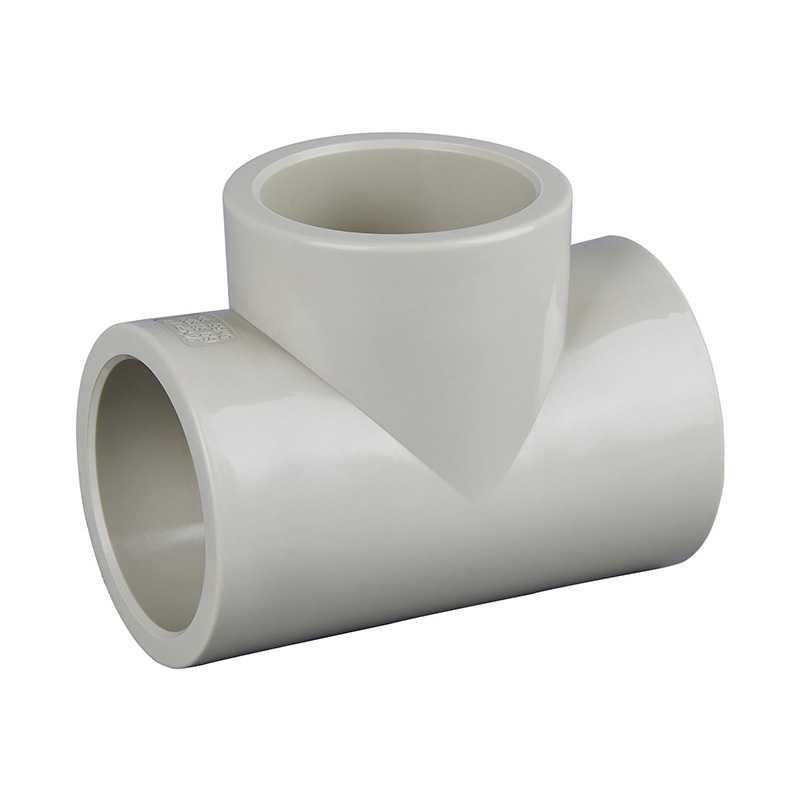

PPH Butt-Weld Tee DN15-400 GB Standard

Factory Price Earthy Yellow PPH Butt Weld Tee Equal Shape Plastic Pipe Connector DN15-DN800 Water Pipe Joint Straight Tee Coupling for drain and sanitary
Place of Origin: China
Brand Name: KXPV
Material: CPVCColour: Earthy Yellow
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Earthy Yellow
Size: DN15-DN400
Application: Industry
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece
Working Pressure: 1.0MPA

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

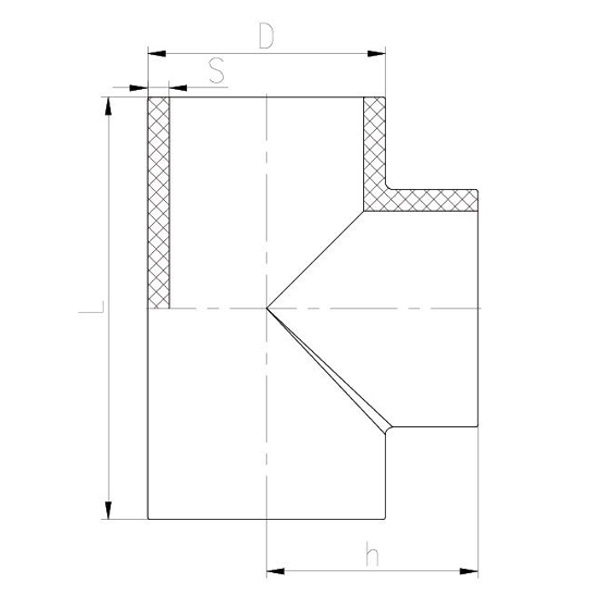

PPH Butt Welding Tee

DN D S L h
15  20  2.5  70  35
20  25  2.7  80  40
25  32  89  44.5
32  40  3.7  100  50
40  50  4.6  120  60
50  63  5.8  149  74.5
65  75  6.9  175  87.5
80  90  8.2  181  90.5
100  110  10  225  112.5
125  140  12.8  293  146.5
150  160  14.6  315  157.5
200  225  20.5  400  200
250  280  25.4  500  250
300  315  28.6  555  277.5
350  355  32.2  615  307.5
