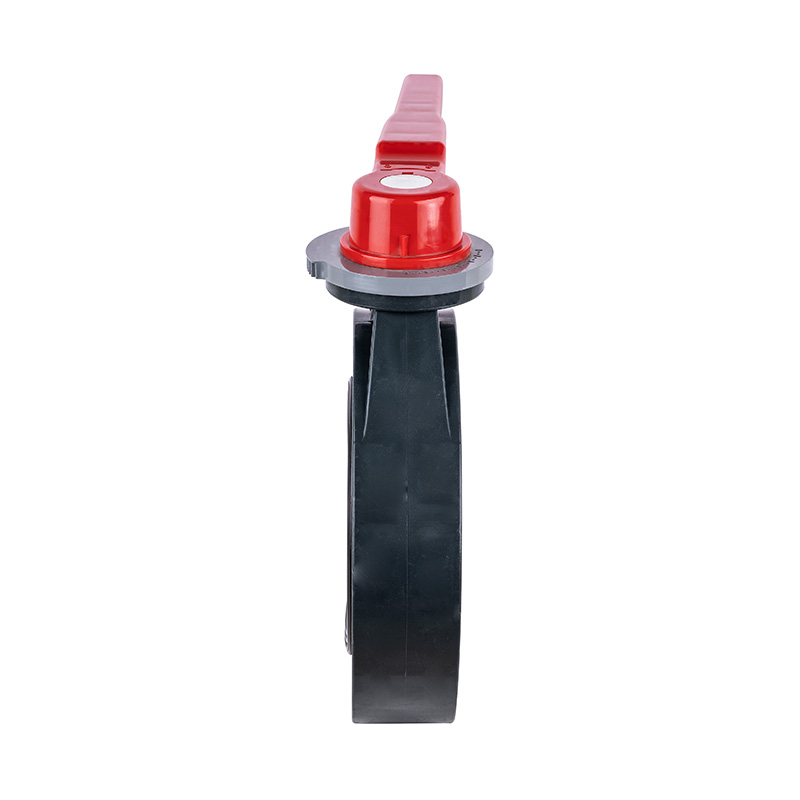

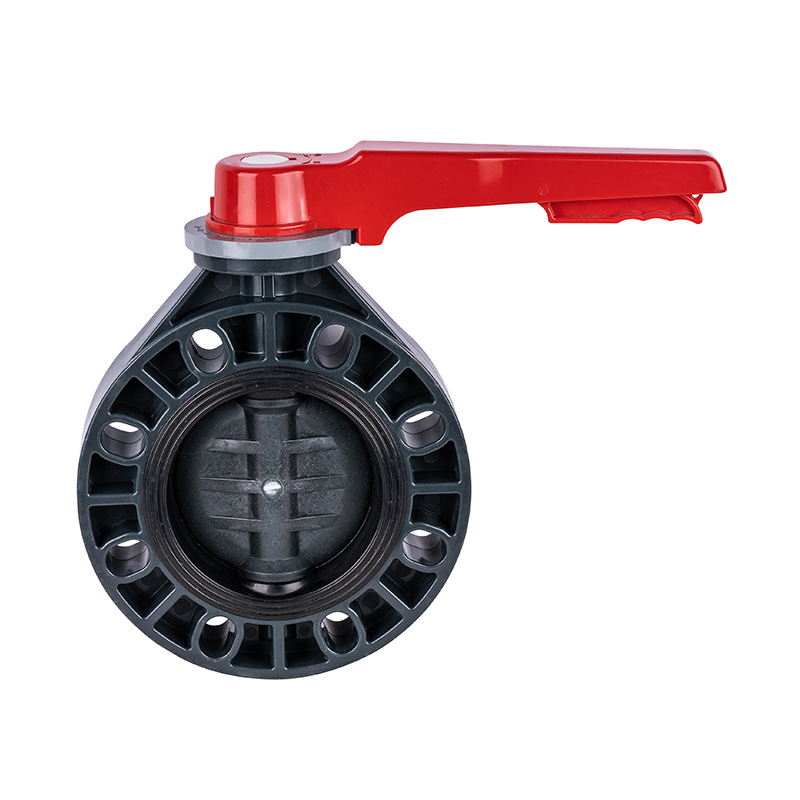

PVC-U D71X-10U Handle Butterfly Valve DN15-200 15A-200A JIS Standard

New Arrival PVC-U Manual Butterfly Valve DN15-200, Industrial Soft Sealing, Center Sealing Plastic Valve, JIS Standard
Model: DN15-200
Power Mode: Manual
Connection Type: Wafer
Structure: Center Sealing
Sealing Type: Forced Sealing
Valve Stem: Standard
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -5~45°C
Sealing Material: Soft Sealing
Application: Industrial Use, Water Industry Use
Valve Stem Material: Steel, Stainless Steel
Brand: KXPV
Size: DN15-200
Origin: Zhejiang, Ningbo

Product Structural Features
1.The valve is compact and lightweight, easy to disassemble and maintain, and can be installed in any position.
2.Simple and compact structure with low operating torque, allowing rapid 90° rotation for quick opening.
3.Linear flow characteristics with excellent regulating performance
App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No.

Name

Material

1

Handle head

Alloy material

2

Hexagonal nut

Steel,StainlessSteel

3

Handle

Alloy material

4

Stem

Steel,StainlessSteel

5

Spring

Steel

6

Adjust the positioning plate

Alloy material

7

Pin

Steel

8

Locating rod

Alloy material

9

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

10

Sealing rubber

EPDM,FPM

11

Disc

FRPP,PVDF,PVC-C,PVC-U,PPH

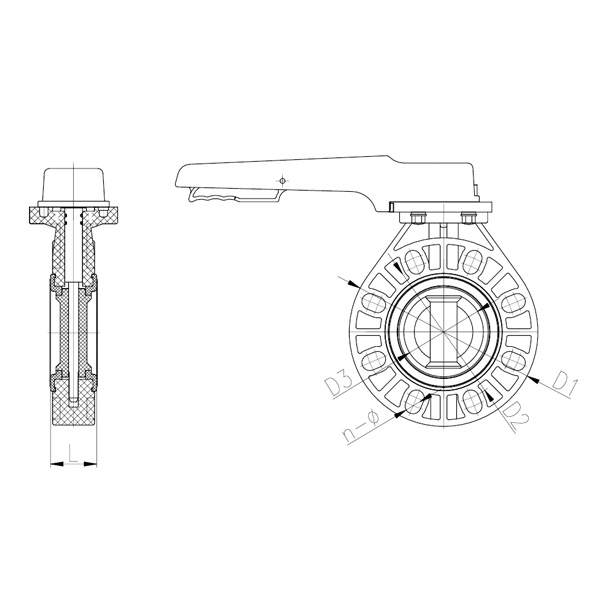

Handle Butterfly Valve Assembly Detail Drawing



Part Material Table



NO.

Parts Name

Material

Qty.

1

Handle

Alloy material

1

2

Locating rod

Alloy material

1

3

Positioning plate

Alloy material

1

4

Nut Cup

FRPP

 4

5

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

1

6

Disc

FRPP,PVDF,PVC-C,PVC-U,PPH

1

7

Sealing rubber

EPDM, FPM

1

8

Stem

Steel,StainlessSteel

1

9

Pin

Steel

1

Dimension List



DN (mm) D1 D2 D3 L n-ø
GB JIS ANSI GB JIS ANSI
32(1 1/4") 140 100 100 3.45 35 35 4-ø17X25 4-ø17X25 4-ø17X25
40(1 1/2") 148 110 105 3.88 41.5 39 4-ø19X25 4-ø19X25 4-ø19X25
50(2") 162 125 120 4.74 50 40 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
65(2 1/2") 180 145 140 5.49 64 42 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
80(3") 198 160 150 6 77 42 8-ø19X25 8-ø19X24 4-ø19X25
100(4")) 225 180 175 7.5 96 52 8-ø19X32 8-ø19X32 8-ø19X32
125(5") 255 210 210 8.5 120 61 8-ø23X33 8-ø23X33 8-ø23X33
150(6") 285 240 240 9.51 145 71 8-ø23X34 8-ø23X34 8-ø22X34
200(8") 340 295 290 11.75 196.5 81 8-ø23X33.5 12-ø23X27 8-ø23X33.5
