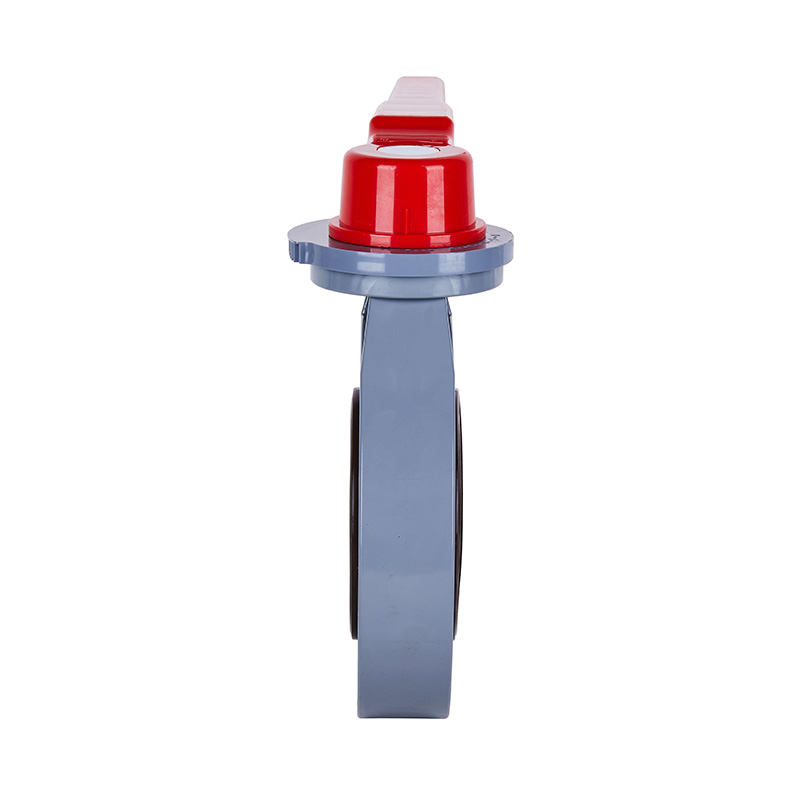

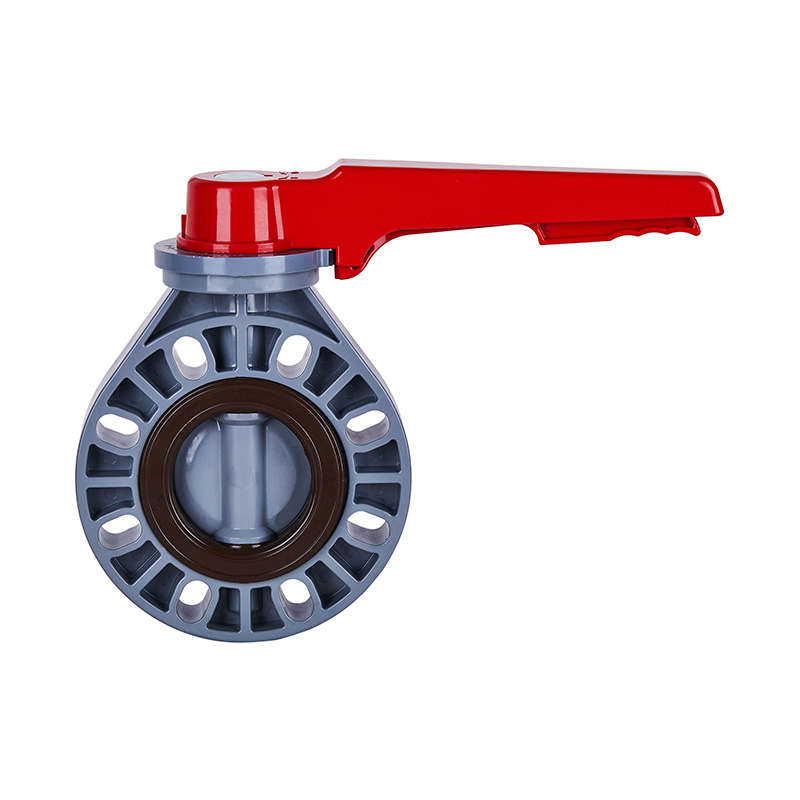

PVC-C D71X-10V Handle Butterfly Valve DN15-200 15A-200A JIS Standard

Custom New PVC-C Manual Butterfly Valve with Shaft DN15-200, Gray, DIN JIS ANSI Standard, 4-inch Flanged End Plastic Valve, JIS Standard
Brand Name: KXPV
Model: D71X-10V
Application: General
Material: Plastic
Color: Gray, Black, Red
Medium Temperature: High, Medium
Pressure: Medium
Power Source: Manual
Medium: Acid
Port Size: DN15-200
Structure: Butterfly
Body Material: PVC-C
Connection: Flanged End
Standard: GB/T27725
Use: Industrial
Working Temperature: -20~95°C
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Pressure Class: 1.0Mpa(10bar)

Product Structural Features
1.The valve is compact and lightweight, easy to disassemble and maintain, and can be installed in any position.
2.Simple and compact structure with low operating torque, allowing rapid 90° rotation for quick opening.
3.Linear flow characteristics with excellent regulating performance
App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No.

Name

Material

1

Handle head

Alloy material

2

Hexagonal nut

Steel,StainlessSteel

3

Handle

Alloy material

4

Stem

Steel,StainlessSteel

5

Spring

Steel

6

Adjust the positioning plate

Alloy material

7

Pin

Steel

8

Locating rod

Alloy material

9

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

10

Sealing rubber

EPDM,FPM

11

Disc

FRPP,PVDF,PVC-C,PVC-U,PPH

Handle Butterfly Valve Assembly Detail Drawing



Part Material Table



NO.

Parts Name

Material

Qty.

1

Handle

Alloy material

1

2

Locating rod

Alloy material

1

3

Positioning plate

Alloy material

1

4

Nut Cup

FRPP

 4

5

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

1

6

Disc

FRPP,PVDF,PVC-C,PVC-U,PPH

1

7

Sealing rubber

EPDM, FPM

1

8

Stem

Steel,StainlessSteel

1

9

Pin

Steel

1

Dimension List



DN (mm) D1 D2 D3 L n-ø
GB JIS ANSI GB JIS ANSI
32(1 1/4") 140 100 100 3.45 35 35 4-ø17X25 4-ø17X25 4-ø17X25
40(1 1/2") 148 110 105 3.88 41.5 39 4-ø19X25 4-ø19X25 4-ø19X25
50(2") 162 125 120 4.74 50 40 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
65(2 1/2") 180 145 140 5.49 64 42 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
80(3") 198 160 150 6 77 42 8-ø19X25 8-ø19X24 4-ø19X25
100(4")) 225 180 175 7.5 96 52 8-ø19X32 8-ø19X32 8-ø19X32
125(5") 255 210 210 8.5 120 61 8-ø23X33 8-ø23X33 8-ø23X33
150(6") 285 240 240 9.51 145 71 8-ø23X34 8-ø23X34 8-ø22X34
200(8") 340 295 290 11.75 196.5 81 8-ø23X33.5 12-ø23X27 8-ø23X33.5
