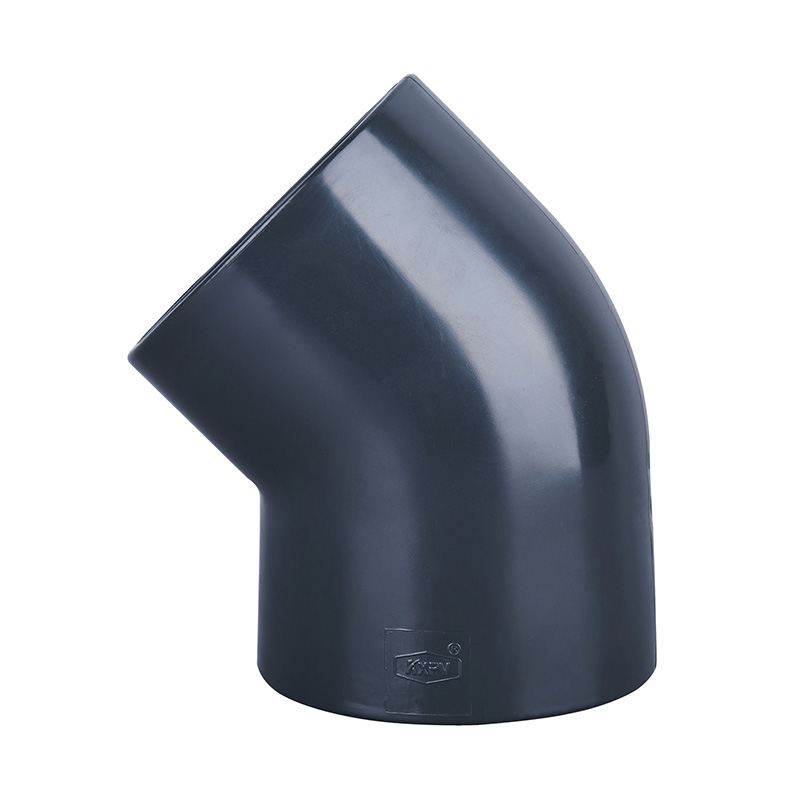

PVC-U 45° Elbow DN15-600 GB Standard

Extra Durable Dark Gray PVC-U 45° Conformal Elbow, Professional Standard Size DN15-DN600 Plastic Pipe Fittings, PVC-U Conformal 45° Elbow
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Equal
Color: Dark Gray
Head Code: Square
Size: DN15-DN600
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

PVC-U Elbow

DN D d1 d2 L Z e
15 27 20 16 21.6 16 3.5
20 32 25 21 25.6 19 3.5
25 40 32 28 30.3 22 4
32 50 40 36 36.4 26 5
40 61 50 45 43.6 31 5.5
50 75 63 58 53.5 38 6
65 88 75 70 62.2 44 6.5
80 104 90 85 72.5 51 7
100 127 110 104 87.3 61 8.5
125 161 140 136 107 76 10.5
150 184 160 154 122 86 12
200 260 225 218 171 119 17.5
250 310 280 270 210 146 15
300 346 315 304 236 164 15.5
350 390 355 340 265 184 17.5
400 440 400 386 298 206 20
450 496 450 442 335 231 22
500 551 500 491 375 256 24
