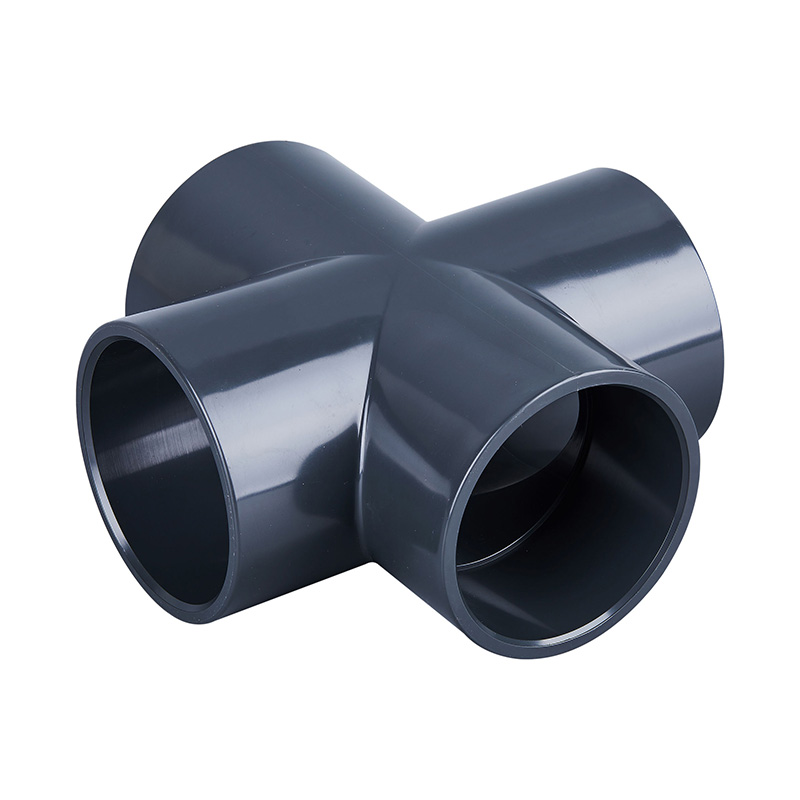

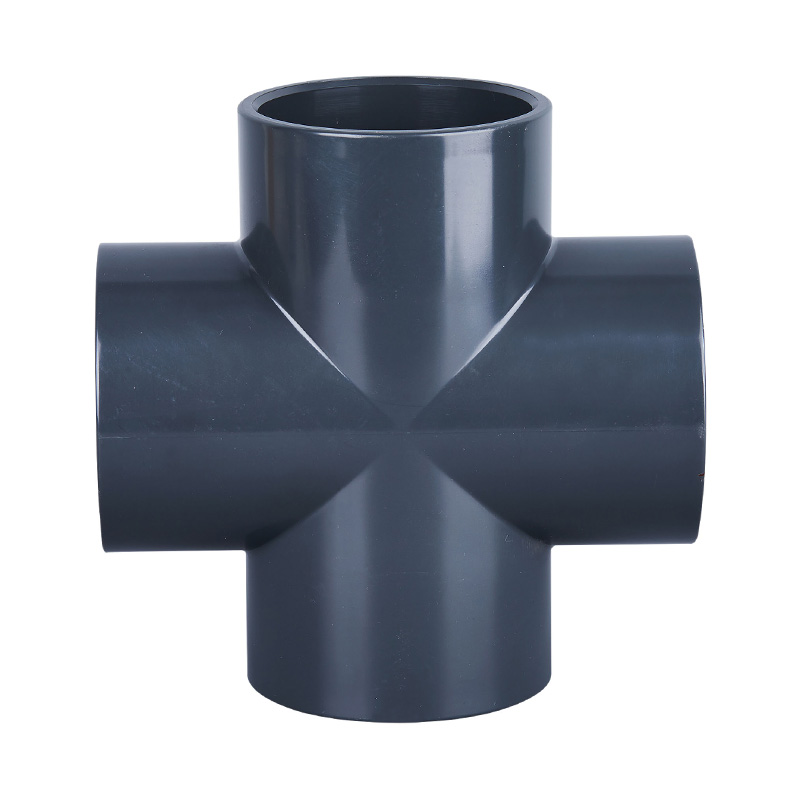

PVC-U Cross DN15-200 GB Standard

Competitively priced dark gray PVC-U seamless, equal-clamp, cross, tee, and cross fittings, DN15-DN600 Sanitary and Water Supply Plastic Pipe Fittings
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Material: PVC-U
Color: Dark Gray
Size: DN15-DN600
Application: Industry
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

PVC-U Cross

DN D d1 d2 L Z e
25  40  32  26  80  22
32  50  40  33  98  26
40  61  50  47  120  31  5.5
50  75  63  59  148  37.5
65  88  75  71  169  44  6.5
80  104  90  86  198  51
100  127  110  105  238  61  8.5
125  161  140  135  298  76  10.5
150  184  160  154  338  86  12
200  249  225  219  480  118.5  12
