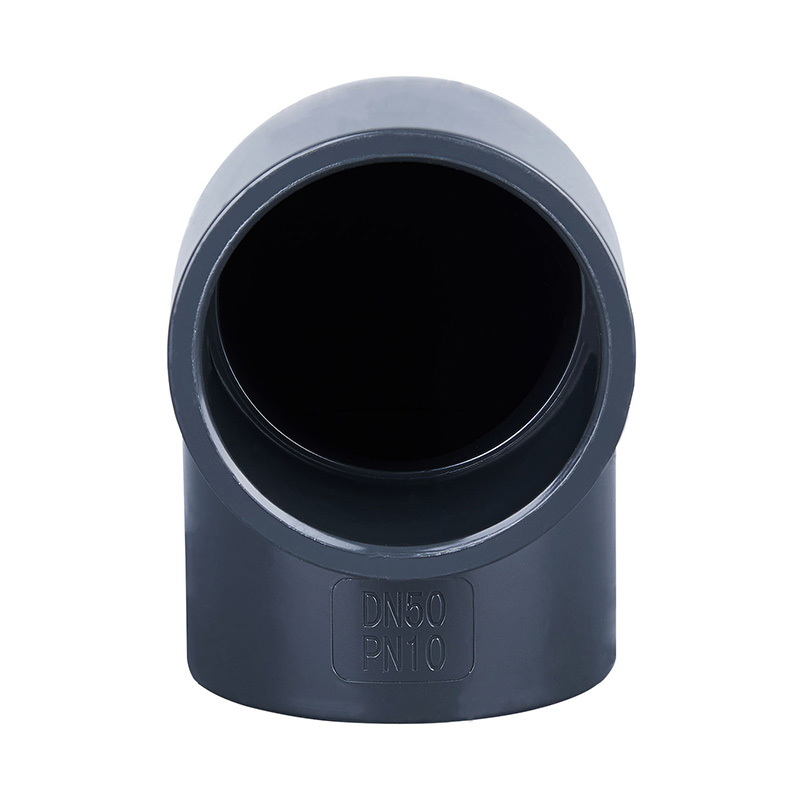

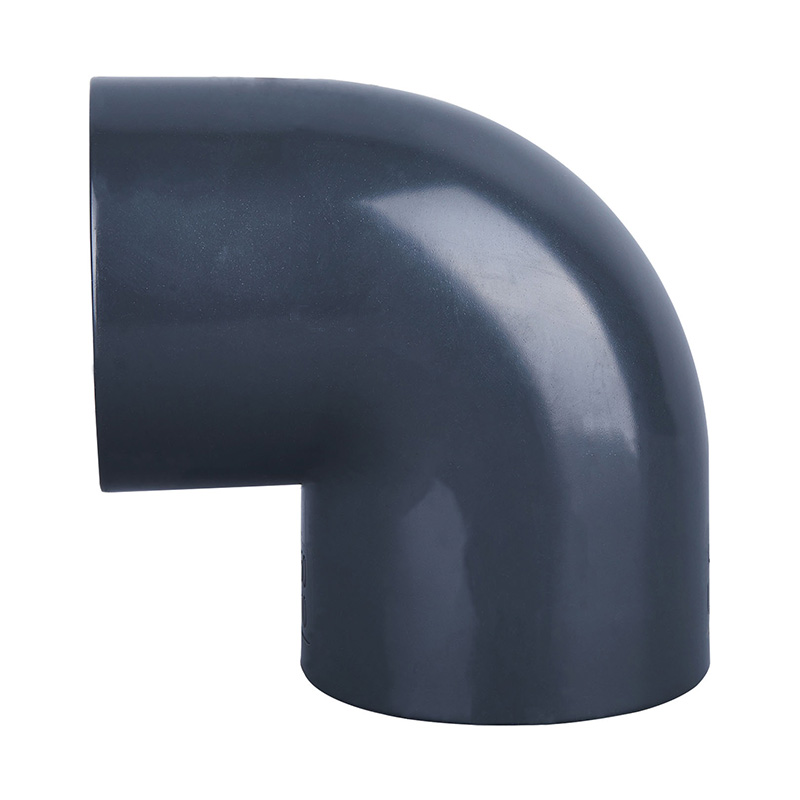

PVC-U 90° Elbow DN15-600 GB Standard

High quality dark gray PVC-U 90° elbow shaped DN15-DN600 1.0-1.6 MPa working pressure plastic pipe fittings for the chemical and water industries.
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Right-angle
Material: PVC-U
Color: Dark Gray
Head Code: Square
Size: DN15-DN600
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

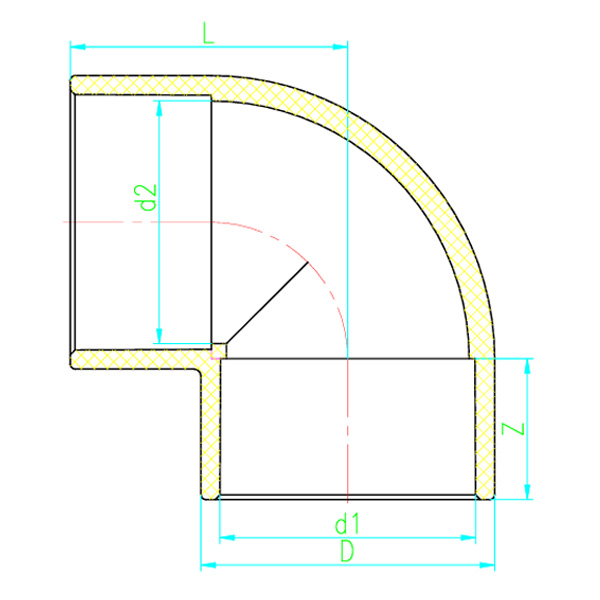

PVC-U Elbow

DN D d1 d2 L Z e
15 27 20 18 28 16 3.5
20 32 25 23 34 18.5 3.5
25 40 32 30 41 22 4
32 50 40 38 49 26 5
40 61 50 47 61 31 5.5
50 75 63 60 74 37.5 t6
65 88 75 72 83 44 6.5
80 104 90 86 99 51 7
100 127 110 105 120 61 8.5
125 161 140 134 150 76 10.5
150 184 160 154 172 86 12
200 249 225 219 237 119 12
250 310 280 270 301 146 15
300 346 315 310 331 164 15.5
350 392 355 350 372 184 18.5
400 442 400 395 416 206 21
450 494 450 430 483 231 22
500 548 500 480 521 256 24
600 670 630 600 654 321 20
700 758 710 666 951 361 22.5
