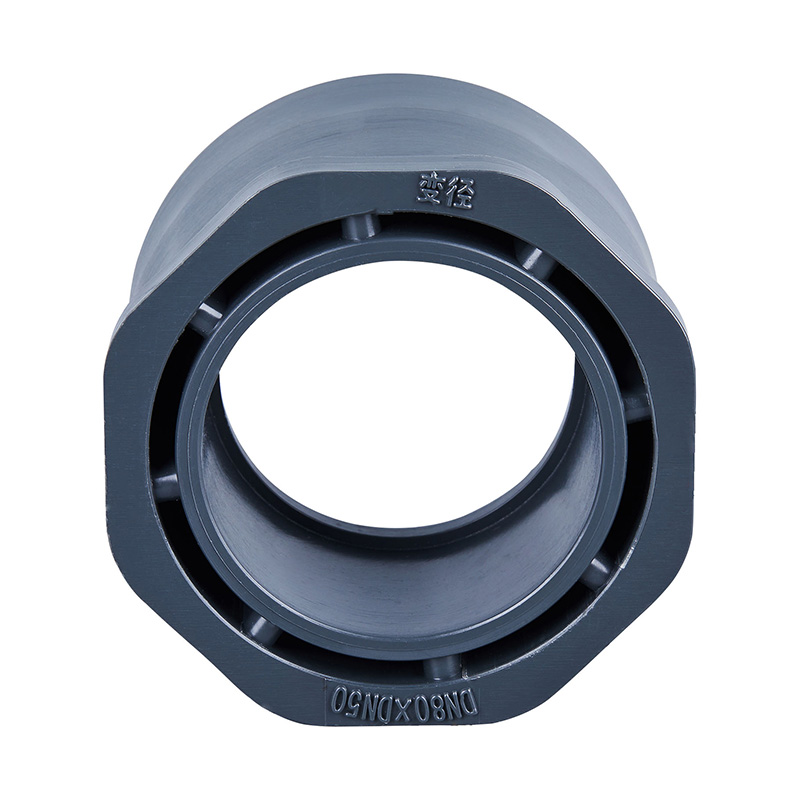

PVC-U Reducer Bushing DN15*20-400*350 GB Standard

PVC-U Reducer Bushing DN15*20-400*350 GB Standard

High Quality Custom PVC-U Reducer Bushing DN15-DN600 Plastic pipe fittings for water supply and construction projects
Applicable Industry: Chemical Industry
Place of Origin: Ningbo, Zhejiang
Brand Name: KXPV
Type: Flange
Material: Plastic
Color: Dark Gray
Size: DN15*20-400*350
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 10000 Piece / Pieces per Month

Contact Us
PREV：PVC-U Male Threaded Adapter DN15-50 GB Standard
NEXT：PVC-U 90° Elbow DN15-600 GB Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

PVC-U Bushing

DN D d1 d2 L1 L2 Z S
150*100 160  110  106  100  86  61  164.5
150*125 160  140  136  100  86  76  164.5
200*150 225  160  155  135  119  86  228.5
250*50 280  63  60  146  128  37.5  285
250*200 280  225  210  146  128  119  285
300*250 315  280  265  178  158  131  324
350*250 355  280  270  199  184  146  355
350*300 355  315  304  199  184  164  355
400*150 400  160  154  221  206  86  400
400*250 400  280  270  221  206  146  400
400*350 400  355  340  221  206  184  400

DN D d1 d2 L1 L2 Z S
20*15 25  20  16.5  25  21  16  27.5
25*15 32  20  16.5  27  22  16  35
25*20 32  25  21  27  22  19  35
32*15 40  20  16.5  32  26  16  42.5
32*20 40  25  21  32  26  18  42.5
32*25 40  32  27.5  32.5  26.5  21.5  42.5
40*15 50  20  16.5  39  31  16  54
40*20 50  25  21  39  31  19  54
40*25 50  32  28  39  31  22  54
40*32 50  40  36  39  31  26  54
50*15 63  20  16.5  47  38  16  67
50*20 63  25  21  47  38  19  67
50*25 63  32  28  47  38  22  67
50*32 63  40  36  47  38  26  67
50*40 63  50  46  47  38  31  67
65*25 75  32  28  53  44  22  79
65*32 75  40  36  53  44  26  79
65*40 75  50  46  53  44  31  79
65*50 75  63  58.5  53  44  38  79
80*32 90  40  35.5  61  51  26  93.5
80*40 90  50  46  61  51  31  93.5
80*50 90  63  59  61  51  38  93.5
80*65 90  75  70  61  51  43.5  93.5
100*32 110  40  35.5  72.5  60.5  31  113.5
100*40 110  50  46  73  61  31  113.5
100*50 110  63  59  73  61  38  113.5
100*65 110  75  71  73  61  44  113.5
100*80 110  90  84  73  61  49  113.5
125*50 140  63  60  88  76  38  144
125*80 140  90  85  88  76  56  144
125*100 140  110  105  88  76  61  144
150*50 160  63  60  100  86  38  165
