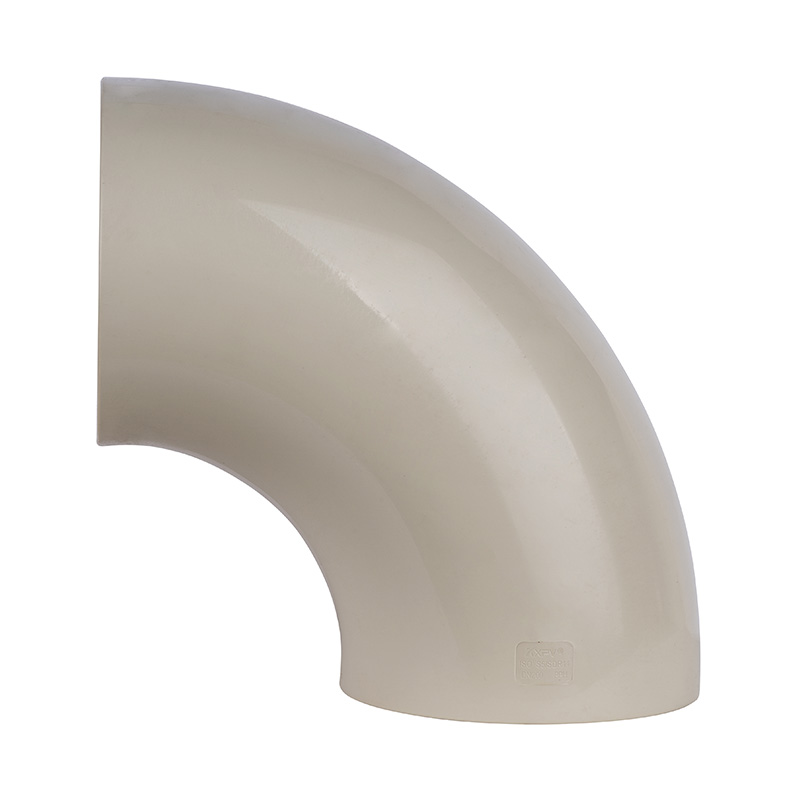

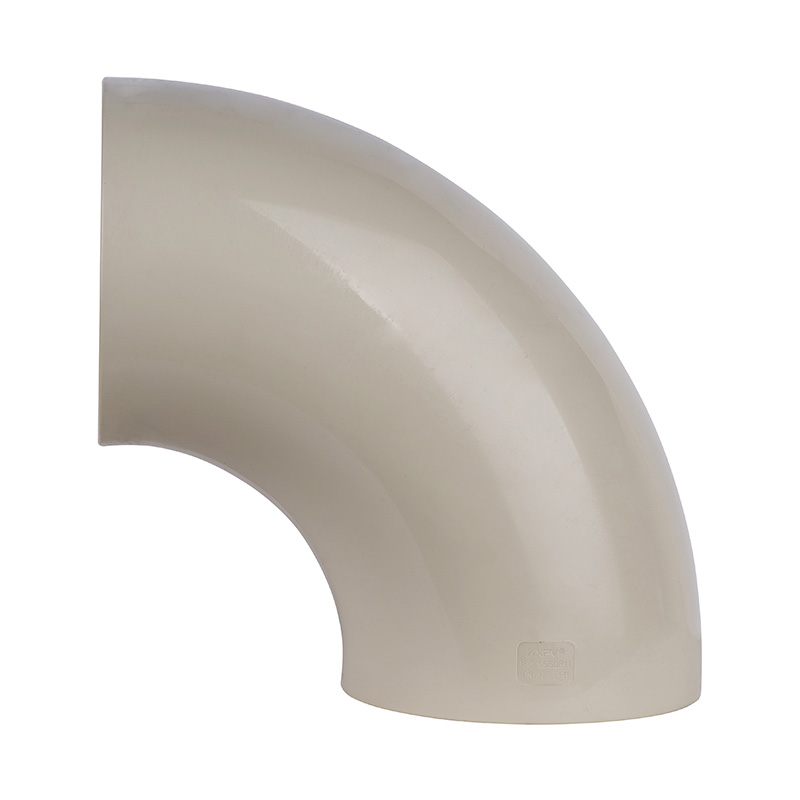

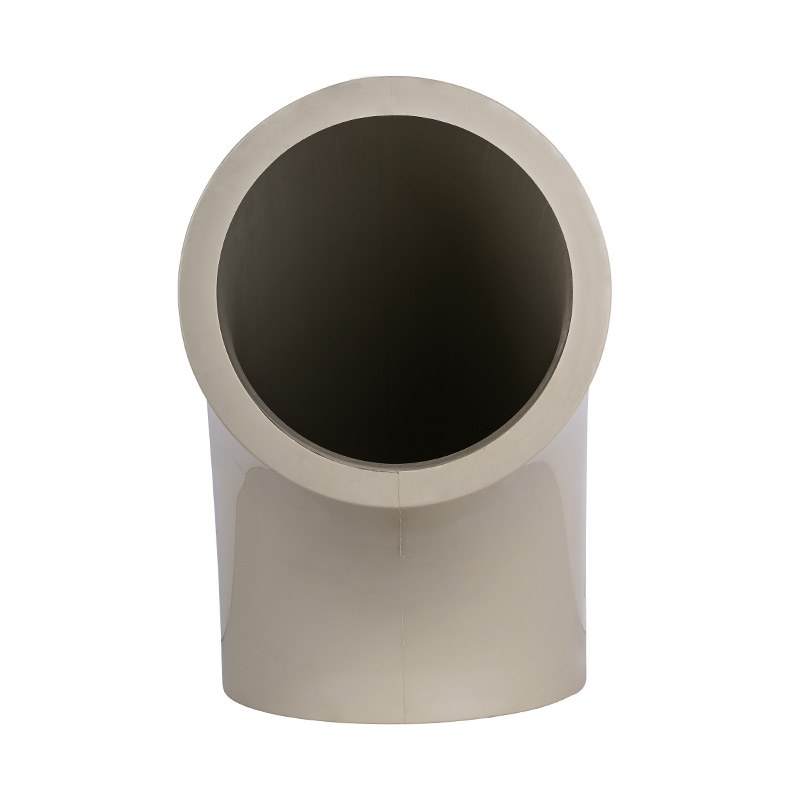

PPH Butt Weld 90° Elbow DN15-400 GB Standard

High quality Earthy Yellow PVC-C 90° Elbow shaped DN15-DN400 1.0-1.6 Mpa Working Pressure Plastic pipe fittings for Chemical and Water Industry
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Equal
Material: CPV
Color: Earthy Yellow
Head Code: Square
Size: DN15-DN400
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

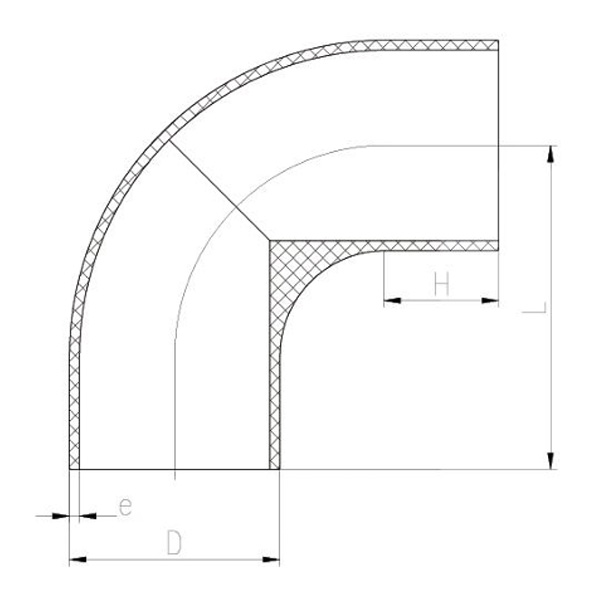

PPH Butt Welding 90° Elbow

DN D e L H
15  20  2.5  51  33
20  25  2.7  56  33
25  32  63  33
32  40  3.7  72  34
40  50  4.6  84  34
50  63  5.8  97  34
65  75  6.9  110  35
80  90  8.2  123  35
100  110  10  142  35
125  140  12.8  170  20
150  160  14.6  185  20
200  225  20.5  245  22
250  280  25.4  250  90
300  315  28.6  277.5  95
350  355  32.2  307.5  100
400  400  36.3  350  127
450  450  40.9  380  130
