CPVC Pneumatic Butterfly Valve Manufacturers

CPVC Pneumatic Butterfly Valve

CPVC Pneumatic Butterfly Valve

CPVC Pneumatic Butterfly Valve DN32-1000 Remote Control Plastic Actuator Butterfly Valve with Flange Ends for water and Chemical industry

Place of Origin:China

Brand Name:KXPV

Model Number:D671X-10V

Application:General

Material:Plastic

Temperature of Media:High Temperature, Medium Temperature

Pressure:Medium Pressure

Power:Pneumatic

Media:Acid

Port Size:DN32-1000

Structure:Butterfly

Body material:CPVC

Connection:Flange Ends

Standard:DIN3352 F4

Usage:Industry

Working Temperature:-10--70

Delivery Time:7 Days

MOQ:1 Piece

Contact Us

CPVC Pneumatic Butterfly Valve Details

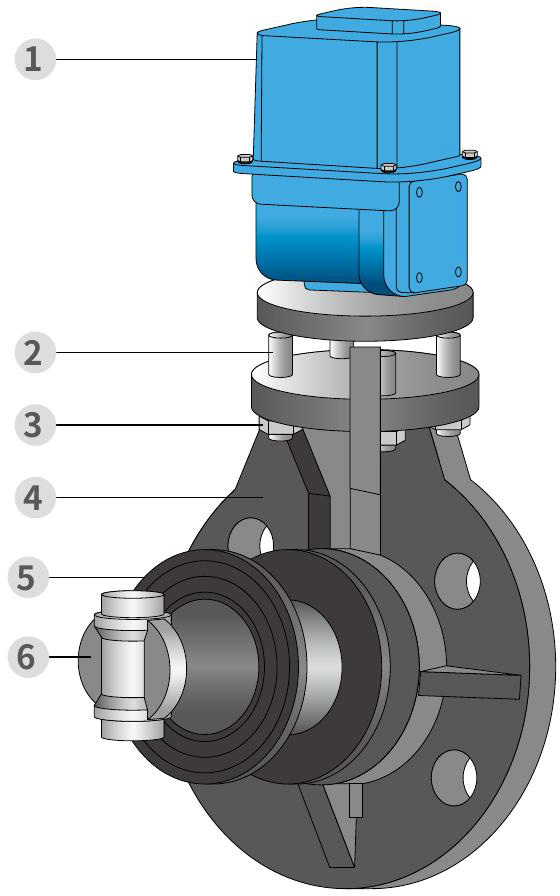

Part material list



No. Name Material
1 Pneumatic Aluminum alloy
2 Headed stud Steel,Stainless steel
3 Hex nuts Steel
4 Body FRPP,PVDF,CPVC,UPVC,PPH
5 Rubber seal EPDM,FPM
6 Disc FRPP,PVDF,CPVC,UPVC,PPH

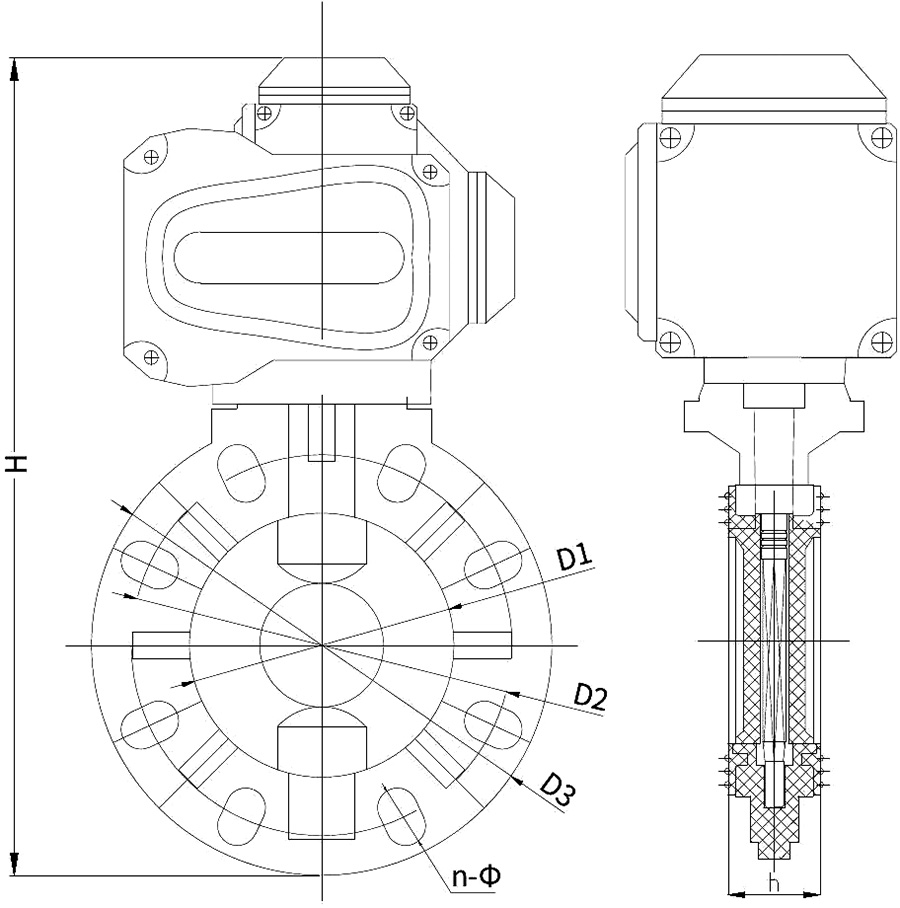

Pneumatic butterfly valve specification and dimension list
