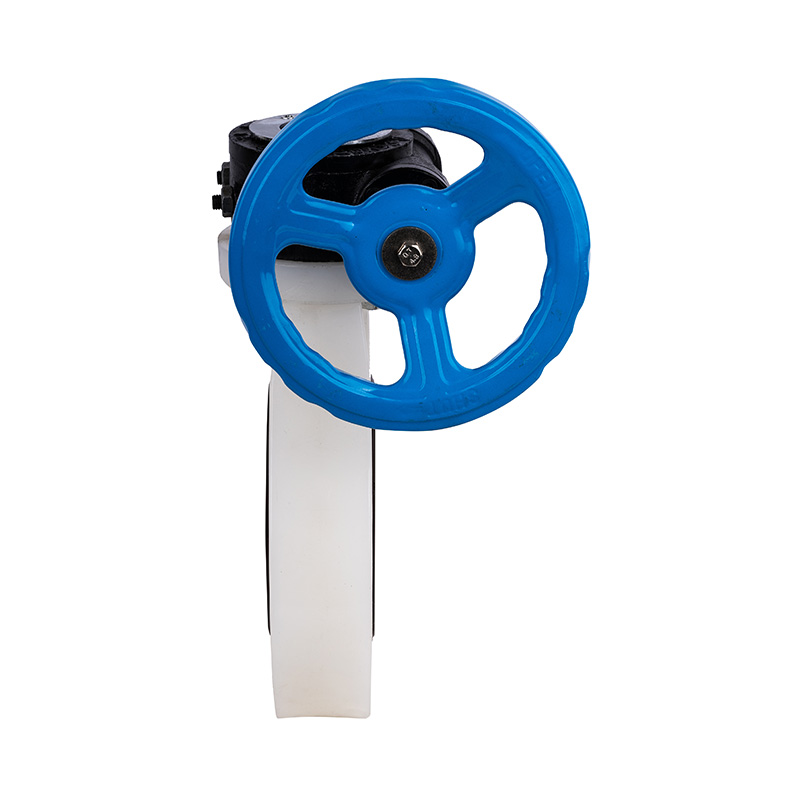

PVDF D371X-10F Worm-Gear Butterfly Valve DN32-1000 GB Standard

PVDF worm gear butterfly valve manual center seal soft seal DN32-1000 industrial and household plastic lever handle valve
Driving Mode: Manual
Connection Form: Wafer
Structure: Center Sealing
Seal Type: Forced Sealed
Valve Stem: Ordinary
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -40~150°C
Material of Seal Surface: Soft Sealed
Application: Industrial Usage, Water Industrial Usage
Valve Stem: Steel, Stainless Steel
Trademark: KXPV
Specifications: DN32-1000
Origin: Ningbo, Zhejiang

Product Structural Features
1. The valve is small and light, easy to disassemble and repair, and can be installed at any position.
2. The structure is simple & compact, and the operating torque is small, and the 90° rotation is opened quickly.
3. The flow characteristics tend to be straight and the adjustment performance is good.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No.

Name

Material

1

Wheel cast iron,Aluminium alloy

2

Worm gear bear Steel

3

Data Ipate Aluminium

4

Hexagon bolt Steel,StainlessSteel

5

Worm gear lid cast iron,Aluminium alloy

6

Worm gear cast iron,Aluminium alloy

7

Limit bolt Steel,StainlessSteel

8

Stem Steel,StainlessSteel

9

Double headed stud Steel,StainlessSteel

10

Hexagonal nut Steel,StainlessSteel

11

Sealing rubber EPDM,FPM
12 Valve Plate FRPP,PVDF,PVC-C,PVC-U,PPH
13 Body FRPP,PVDF,PVC-C,PVC-U,PPH

Worm-gear Type Butterfly Valve Assembly Detail Drawing



Part Material Table



NO.

Parts Name

Material

Qty.

1

Wheel cast iron

1

2

Worm gear cast iron

1

3

Pin Steel

1

4

Nut Cup FRPP

 4

5

Body FRPP,PVDF,PVC-C,PVC-U,PPH

1

6

Valve Plate FRPP,PVDF,PVC-C,PVC-U,PPH

1

7

Sealing rubber EPDM,FPM

1

8

Stem Steel,StainlessSteel

1

Dimension List



DN(mm) D1 D2 D3 T n-Φ
GB JIS ANSI GB JIS ANSI
32(11/4") 140  100  100  88.9  33  35  4-Φ17 4-Φ17 4-Φ17
40(11/2") 150  110  105  98.4  41.5  39  4-Φ19X25 4-Φ19X25 4-Φ19X25
50(2") 160  125  120  120.7  50  40  4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
65(21/2") 180  145  140  139.7  64  42  4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
80(4") 200  160  150  152.4  77  42  8-Φ19X25 8-Φ19X25 4-Φ19X20
100(4") 225  180  175  190.5  96  52  8-Φ19X32 8-Φ19X32 8-Φ19X32
125(5") 255  210  210  215.9  120  61  8-Φ23X33 8-Φ23X33 8-Φ23X33
150(6") 290  240  240  241.3  145  71  8-Φ23X34 8-Φ23X34 8-923X34
200(8") 340  295  290  298.5  196.5  81  8-Φ23X33.5 12-Φ23X27 8-Φ23X33.5
250(10") 420  350  355  362  245.5  110  12-Φ23.5X32 12-Φ23.5X32  12-Φ23.5X32
300(12") 500  400  431.8  291.5  115  12-Φ28X48  12-Φ28X48
350(14") 550  460  476.3  340  127  16-Φ26 12-Φ33
400(16") 619  515  510  539.8  399  140  16-Φ36X52 16-Φ36X52 16-Φ36X52
450(18") 655  565  565  577.9  446  150  20-Φ25 20-Φ27 16-Φ33
500(20") 705  620  620  635  494  150  20-Φ26X33 20-Φ27X33 20-26X33
600(24") 816  725  749.3  570  170  20-Φ28X38 20-Φ28X38
700(28") 910  840  840  670  185  24-Φ33X44 24-Φ33X44
800(32") 1055  960  950  977.9  755  240  24-Φ44.5X65 28-Φ36X52 24-Φ44.5X65
1000(40") 1230  1160  1160  935  236  28-Φ36X52 28-Φ39


DN(mm) D1 D2 D3 T n-Φ
GB JIS ANSI GB JIS ANSI
40(11/2") 148  110  105  98.4  41.5  39  4-Φ19X25 4-Φ19X25 4-Φ19X25
50(2") 162  125  120  120.7  50  40  4-Φ19X26.5 4-Φ19X25.6 4-Φ19X25.6
65(21/2") 180  145  140  139.7  64  42  4-Φ19X26.5 4-Φ19X25.6 4-Φ19X25.6
80(3") 198  160  150  152.4  77  42  8-Φ19X25 8-Φ19X24 4-Φ19X20
100(4") 225  180  175  190.5  96  52  8-Φ19X32 8-Φ19X32 8-Φ19X32
125(5") 255  210  210  215.9  120  61  8-Φ23X33 8-Φ23X33 8-Φ23X33
150(6") 285  240  240  241.3  145  71  8-Φ23X34 8-Φ23X34 8-Φ22X34
200(8") 340  295  290  298.5  196.5  81  8-Φ23X33.5 12-Φ23X27 8-Φ22X33.5
