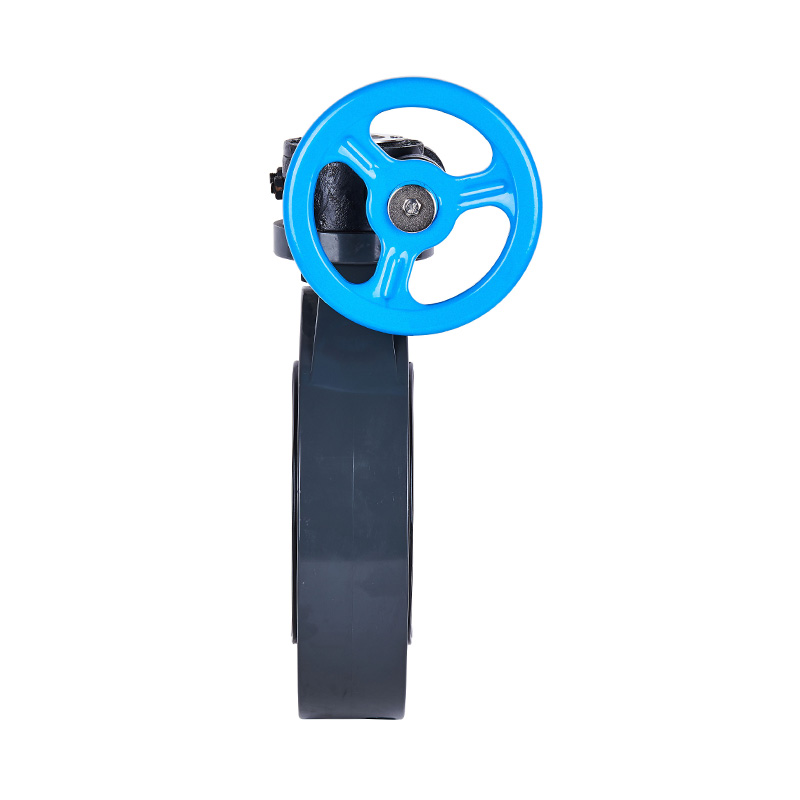

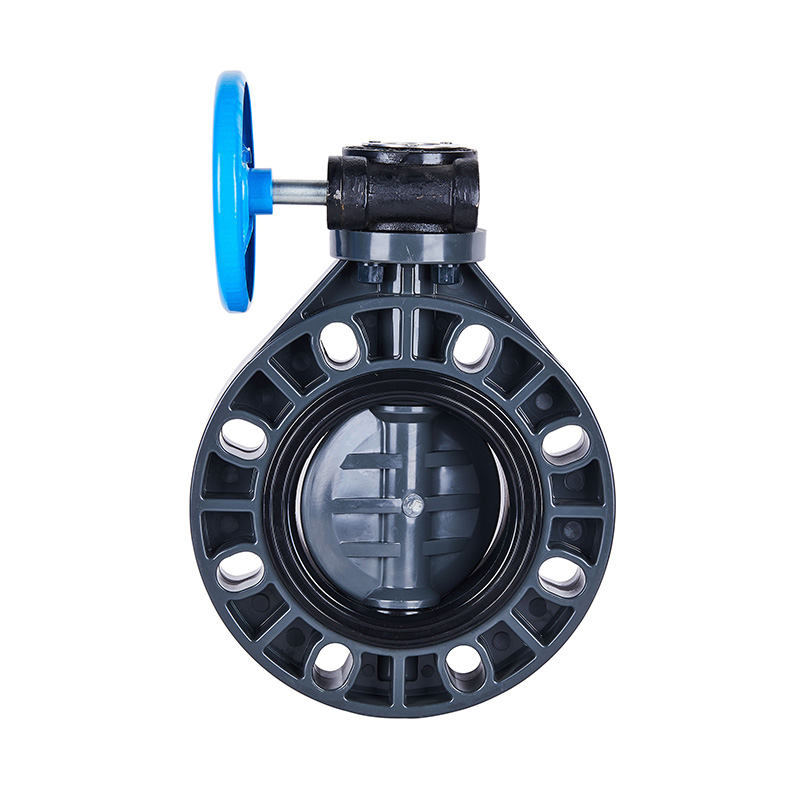

PVC-U D371X-10U Worm-Gear Butterfly Valve DN40-1000 40A-1000A JIS Standard

New Arrival PVC-U Worm Gear Butterfly Valve, DN40-1000, Industrial Soft Seal Center Seal Plastic Valve, JIS Standard
Model: DN40-1000
Power Source: Manual
Connection Type: Wafer
Structure: Center Seal
Sealing Type: Forced Seal
Stem: Standard
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -5~45°C
Sealing Surface Material: Soft Seal
Application: Industrial Use, Water Industry Use
Stem Material: Steel, Stainless Steel
Brand: KXPV
Specification: DN40-1000
Origin: Zhejiang, Ningbo

Product Structural Features
1.The valve is compact and lightweight, easy to disassemble and maintain, and can be installed in any position.
2.Simple and compact structure with low operating torque, allowing rapid 90° rotation for quick opening.
3.Linear flow characteristics with excellent regulating performance



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No.

Name

Material

1

Wheel cast iron,Aluminium alloy

2

Worm gear bear Steel

3

Data Ipate Aluminium

4

Hexagon bolt Steel,StainlessSteel

5

Worm gear lid cast iron,Aluminium alloy

6

Worm gear cast iron,Aluminium alloy

7

Limit bolt Steel,StainlessSteel

8

Stem Steel,StainlessSteel

9

Double headed stud Steel,StainlessSteel

10

Hexagonal nut Steel,StainlessSteel

11

Sealing rubber EPDM,FPM
12 Valve Plate FRPP,PVDF,PVC-C,PVC-U,PPH
13 Body FRPP,PVDF,PVC-C,PVC-U,PPH

Worm-gear Type Butterfly Valve Assembly Detail Drawing



Part Material Table



NO.

Parts Name

Material

Qty.

1

Wheel cast iron

1

2

Worm gear cast iron

1

3

Pin Steel

1

4

Nut Cup FRPP

 4

5

Body FRPP,PVDF,PVC-C,PVC-U,PPH

1

6

Valve Plate FRPP,PVDF,PVC-C,PVC-U,PPH

1

7

Sealing rubber EPDM,FPM

1

8

Stem Steel,StainlessSteel

1

Dimension List



DN (mm) D1 D2 D3 L n-ø
GB JIS ANSI GB JIS ANSI
32(1 1/4") 140 100 100 3.45 35 35 4-ø17X25 4-ø17X25 4-ø17X25
40(1 1/2") 148 110 105 3.88 41.5 39 4-ø19X25 4-ø19X25 4-ø19X25
50(2") 162 125 120 4.74 50 40 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
65(2 1/2") 180 145 140 5.49 64 42 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
80(3") 198 160 150 6 77 42 8-ø19X25 8-ø19X24 4-ø19X25
100(4")) 225 180 175 7.5 96 52 8-ø19X32 8-ø19X32 8-ø19X32
125(5") 255 210 210 8.5 120 61 8-ø23X33 8-ø23X33 8-ø23X33
150(6") 285 240 240 9.51 145 71 8-ø23X34 8-ø23X34 8-ø22X34
200(8") 340 295 290 11.75 196.5 81 8-ø23X33.5 12-ø23X27 8-ø23X33.5
250(10") 395 350 355 14.25 245.5 110 12-ø23X32.5 12-ø25X32.5 12-ø25X32.5
400(16") 597 515 510 21.26 399 140 16-ø27X43 16-ø27 16-ø30X43
450(18") 635 560 565 22.76 446 150 20-ø26X28.5 20-ø26X28.5 16-ø32X34. 5
500(20") 700 620 620 25 494 150 20-ø26X44 20-ø26X44 20-ø32X44
700(28") 928 820 840 34.02 670 185 24-ø31X44 24-ø33 24-ø35
800(32") 1060 950 950 38.5 755 220 24-ø41X60 28-ø33X38 24-ø41X60
1000(40") 1210 1160 1160 46.26 935 236 28-ø36X52 28-ø39 32-ø41
800 (32") 1060 950 950 38.5 755 220 24-Φ41X60 28-Φ33X39 24-Φ41X60
1000 (40") 1230 1160 1160 46.26 935 236 28-Φ36X52 28-Φ39 32-Φ41
