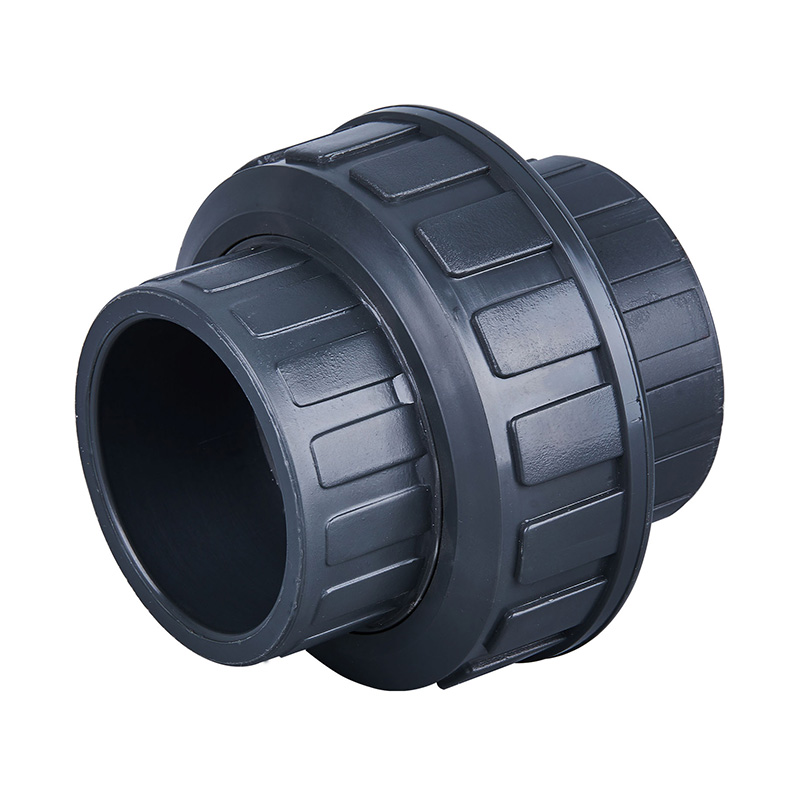

PVC-U Union Fitting DN15-100 GB Standard

Wholesale High-Quality Dark Gray PVC-U Union Socket Connector 1.0-1.6 MPa Working Pressure, DN15-DN100 for the Sewage and Chemical Industries
Brand Name: KXPV
Material: PVC-U
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Gray Black
Size: DN15-DN100
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

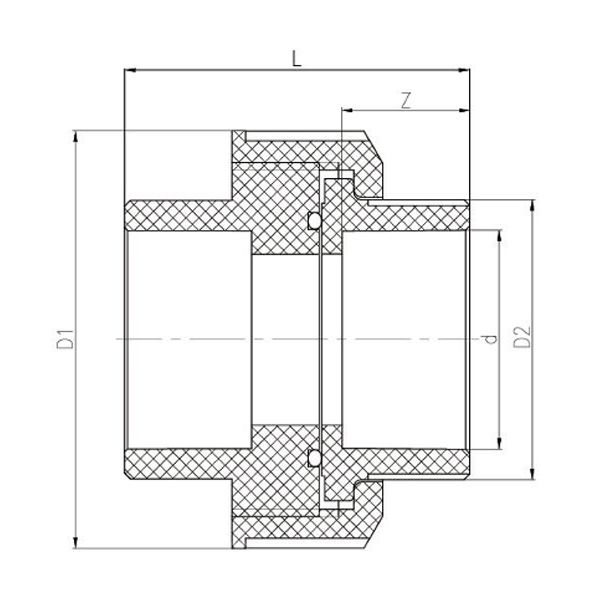

PVC-U Union

DN D1 D2 d L Z
15  50  27  20  52.5  20
20  58  34  25  63  24
25  70  41  32  66  27
32  85  52  40  77.5  30
40  98  63  50  79.5  32
50  127  78  63  88.5  38
65  144  96  75  119  44
80  158  107  90  131  51
100  192  126  110  158  61
