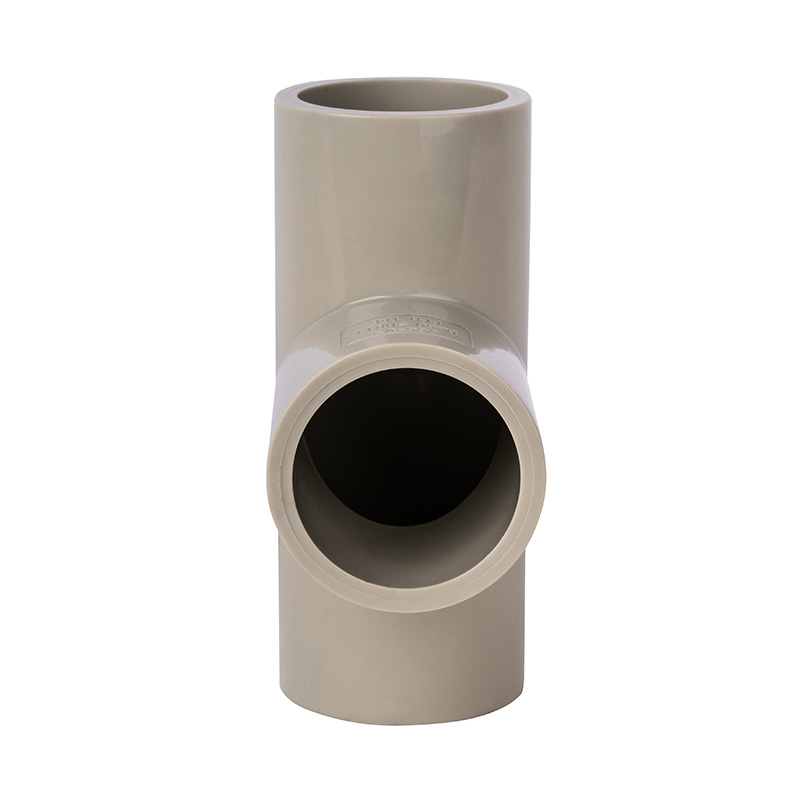

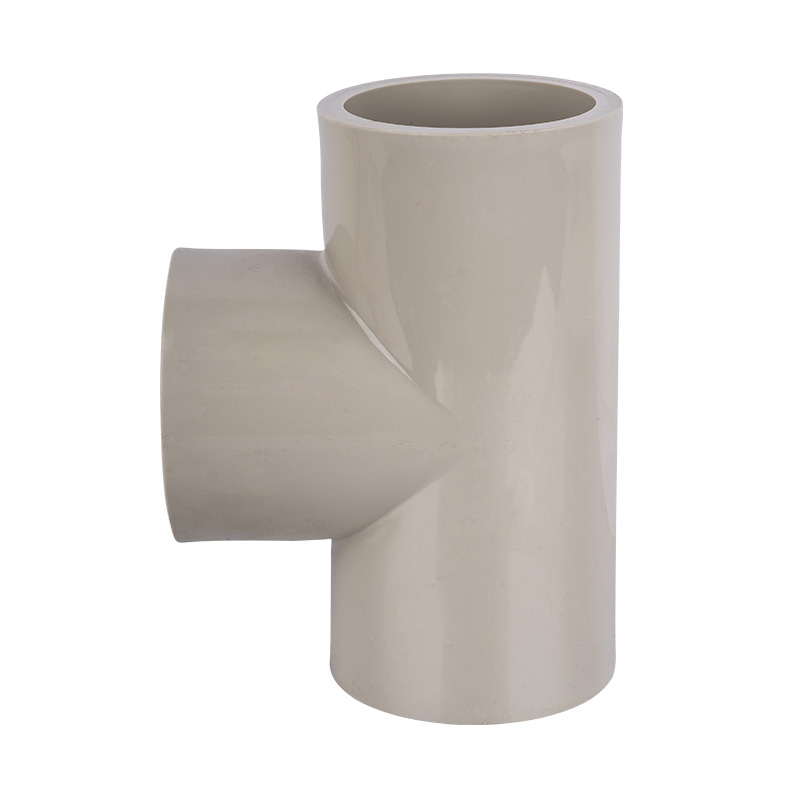

PPH Hot Melt Socket Tee DN15-100 GB Standard

Factory Price Earthy Yellow PPH Tee Equal Shape Plastic Pipe Connector DN15-DN800 Water Pipe Joint Straight Tee Coupling for drain and sanitary
Place of Origin: China
Brand Name: KXPV
Material: CPVCColour: Earthy Yellow
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Earthy Yellow
Size: DN15-DN100
Application: Industry
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece
Working Pressure: 1.0MPA

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

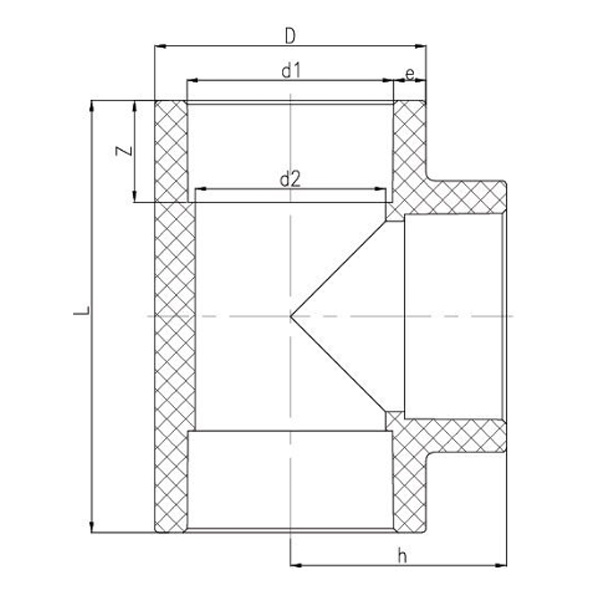

PPH Hot Melt Socket Tee

DN D d1   d2 L Z h e
15  26  20    16  55  14.5  28
20  31  25    20  63  17.5  32
25  39  32    27  75  20  37.5  3.5
32  51  40    35  87  22  44  5.5
40  64  50    45  102  23.5  50
50  80.5  63    57  122  28  60  8.5
65  93  75    68  150  31  76
80  112.5  90    82  174  35  85  11
100  133  110    100  210  41  104.5  11.5
