PPH Butt-Weld Reducer DN50*40-300*250 GB Standard

PPH Butt-Weld Reducer DN50*40-300*250 GB Standard

Earthy Yellow PPH  Butt-Weld Reducers DN50*40-300*250 Custom 4 inches Industrial plastic pipe cap fittings for chemical and water supply
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Material: PPH
Shape: Equal
Head Code: Square
Color: Earthy Yellow
Size: DN50*40-300*250
Application: Industry
Packing: Carton Box
Working Pressure: 1.6MPA
Delivery Time: 7 Days
MOQ: 1 Piece

Contact Us
PREV：PPH Eccentric Reducer DN65*500-200*150 GB Standard
NEXT：PPH Hot Melt Socket Reducer DN20*15-100*80 GB Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

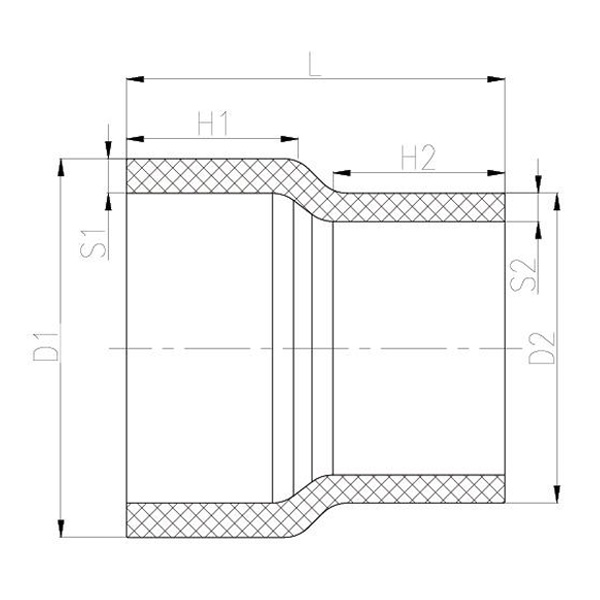

PPH Butt Welding Reducer

DN D1 S1   D2 S2 L H1 H2
150*65 160  14.6    75  6.8  162  40  61
150*80 160  14.6    90  8.2  159  40  61
150*100 160  14.6    110  10  153  40  61
150*125 160  14.6    140  12.7  146  40  61
200*80 225  20.5    90  8.2  200  55  62
200*100 225  20.5    110  10  194  55  62
200*125 225  20.5    140  12.7  187  55  62
200*150 225  20.5    160  14.6  182  55  62
250*100 280  25.4    110  10  234  70  62
250*125 280  25.4    140  12.7  227  70  62
250*150 280  25.4    160  14.6  222  70  62
250*200 280  25.4    225  20.5  207  70  62
300*150 315  28.6    160  14.6  247  80  62
300*200 315  28.6    225  20.5  232  80  62
300*250 315  28.6    280  25.4  225  80  70

DN D1 S1   D2 S2 L H1 H2
20*15 25  2.3    20  2  93  45  45
25*15 32  2.9    20  2  96  45  45
25*20 32  2.9    25  2.3  94  45  45
32*15 40  3.7    20  2  100  45  45
32*20 40  3.7    25  2.3  98  45  45
32*25 40  3.7    32  2.9  94  45  45
40*15 50  4.6    20  2  105  45  45
40*20 50  4.6    25  2.3  102.5  45  45
40*25 50  4.6    32  2.9  99  45  45
40*32 50  4.6    40  3.7  95  45  45
50*20 63  5.8    25  2.3  109  45  45
50*25 63  5.8    32  2.9  105.5  45  45
50*32 63  5.8    40  3.7  101.5  45  45
50*40 63  5.8    50  4.6  96.5  45  45
65*25 75  6.8    32  2.9  121.5  50  50
65*32 75  6.8    40  3.7  117.5  50  50
65*40 75  6.8    50  4.6  112.5  50  50
65*50 75  6.8    63  5.8  106  50  50
80*32 90  8.2    40  3.7  125  50  50
80*40 90  8.2    50  4.6  120  50  50
80*50 90  8.2    63  5.8  113.5  50  50
80*65 90  8.2    75  6.8  107.5  50  50
100*40 110  10    50  4.6  130  50  50
100*50 110  10    63  5.8  123.5  50  50
100*65 110  10    75  6.8  117.5  50  50
100*80 110  10    90  8.2  110  50  50
125*50 140  12.7    63  5.8  155  35  61
125*65 140  12.7    75  6.8  152  35  61
125*80 140  12.7    90  8.2  149  35  61
125*100 140  12.7    110  10  143  35  61
150*50 160  14.6    63  5.8  165  40 61
