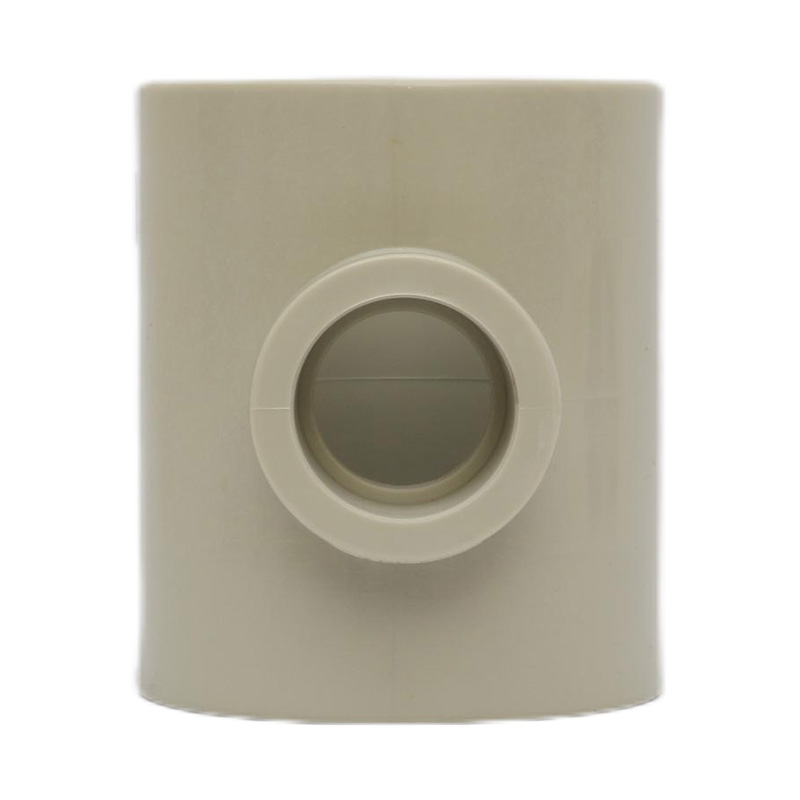

PPH Hot Melt Reducing tee DN20*15-100*80 GB Standard

High quality Earthy Yellow PPH Hot Melt Reducing tee DN20*15-100*80 Socket plastic pipe fitting for chemical and water usage
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection:Socket
Shape: Reducing
Head Code: Round
Color: Earthy Yellow
Application: Industrial & Chemical
Material: PPH
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

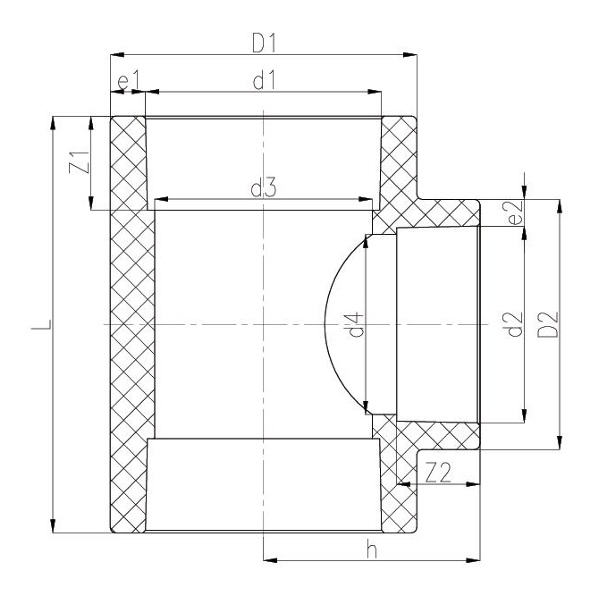

PPH Hot Melt Socket Reducing Tee

DN D1 D2 d1 d2 d3 d4 L h Z1 Z2 e1 e2
DN20*15 35  29  25  20  20  16  60  29  18  15  4.5
DN25*15 43  29  32  20  26  16  64  32  20  15  5.5  4.5
DN25*20 43  35  32  25  26  20  68  35  20  18  5.5
DN32*15 51  29  40  20  34  16  70  37  22  15  5.5  4.5
DN32*20 51  35  40  25  34  20  74  40  22  18  5.5
DN32*25 51  43  40  32  34  26  80  42  22  20  5.5  5.5
DN40*15 64  29  50  20  44  16  76  43  24  15  4.5
DN40*20 64  35  50  25  44  20  80  46  24  18
DN40*25 64  43  50  32  44  26  86  48  24  20  5.5
DN40*32 64  51  50  40  44  34  94  50  24  22  5.5
DN50*25 81  43  63  32  57  26  94  54.5  28  20  5.5
DN50*32 81  51  63  40  57  34  102  56.5  28  22  5.5
DN50*40 81  64  63  50  57  44  12  58.5  28  24
DN65*25 93  43  75  32  67  26  103  61  31  20  5.5
DN65*32 93  51  75  40  67  34  111  63  31  22  5.5
DN65*40 93  64  75  50  67  44  12  65  31  24
DN65*50 93  81  75  63  67  57  134  69  31  28
DN80*40 114  64  90  50  81  44  132  73.5  35  24  12
DN80*50 114  81  90  63  81  57  145  77.5  35  28  12
DN80*65 114  93  90  75  81  67  155  80.5  35  31  12
DN100*25 134  43  110  32  100  27  131  80  42  20  12  5.5
DN100*32 134  51  110  40  100  34  138  82  42  22  12  5.5
DN100*40 134  64  110  50  100  44  146  84  41  24  12
DN100*50 134  81  110  63  100  57  159  88  41  28  12
DN100*65 134  93  110  75  100  67  169  91  41  31  12
DN100*80 134  114  110  90  100  81  183  95  41  35  12  12
