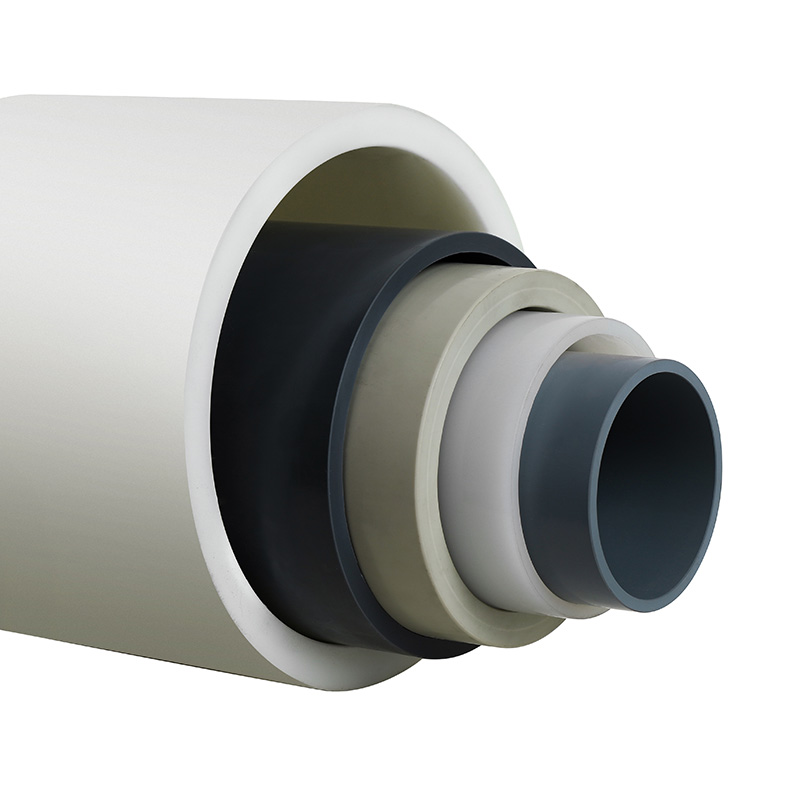

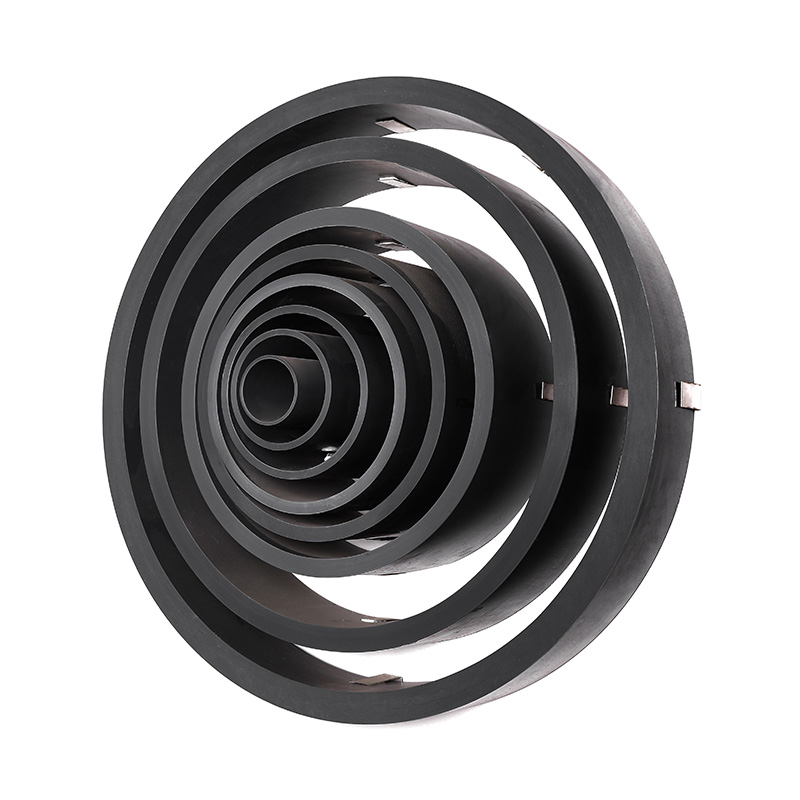

PVC-U Pipes DN15-600 GB Standard

Top quality Gray UPVC Pipe DN15-800 custom size 150mm 250mm 300mm 600mm PN10-16 high pressure Plastic PVC-U Sanitary Drainage Pipe
Place of Origin: Zhejiang, China
Brand Name: KXPV
Material: PVC-U
Specification: DN15-600
Length: 4000mm
Standard: DIN
Working pressure: PN10-16
Color: Gray
Raw material: PVC-U
Size: DN15-600
Delivery Time: 7 Days
Supply Ability: 100000 Meter / Meters per Month

Product Structural Features
PVC-U (rigid polyvinyl chloride) offers a high overall cost-effectiveness. Its smooth interior and exterior surfaces resist fouling, and it is resistant to acids, alkalis, and corrosion. PVC-U offers low resistance to media in pipelines, high flow rates, and is non-heat and non-conductive. It is flame-retardant and mechanically strong. Compared to steel and copper, PVC-U is significantly lighter, making it easier to transport, install, and construct. It is widely used in industries such as steel, metallurgy, petroleum, chemicals, fertilizers, pharmaceuticals, power generation, sewage treatment, copper foil, polysilicon, rare earth metals, graphite, new energy, energy storage, electronics and semiconductors, and chlor-alkali.
App Temperature Bound List
Material        Medium temperature° C Material Medium temperature° C
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
PVC-U Pipes

inch

D

L

S

mm

mm

PN1.6MPa

KG/M

PN1.0MPa

KG/M

1/2"

20

4000

2.0

0.16

2.0

0.16

3/4"

25

4000

2.3

0.24

2.0

0.21

1"

32

4000

2.9

0.38

2.0

0.27

1-1/4"

40

4000

3.0

0.51

2.0

0.35

1-1/2"

50

4000

3.7

0.78

2.4

0.52

2"

63

4000

4.7

1.25

3.0

0.82

2-1/2"

75

4000

5.6

1.77

3.6

1.17

3"

90

4000

6.7

2.54

4.3

1.68

4"

110

4000

8.1

3.76

5.3

2.53

5"

140

4000

10.3

6.08

6.7

4.07

6"

160

4000

11.8

7.96

7.7

5.34

8"

225

4000

16.6

15.75

10.8

10.53

10"

280

4000

20.6

24.33

13.4

16.27

12"

315

4000

23.2

30.82

15

20.49

14"

355

4000

26.1

39.08

16.9

26.02

16"

400

4000

29.4

49.61

19.1

33.12

18"

450

4000





21.5

41.95

20"

500

4000





23.9

51.81

24"

630

4000





30

81.95

This standard is formulated in accordance with the national standard GB/T 4219-2008. Pipe lengths may be customised to meet customer requirements.
