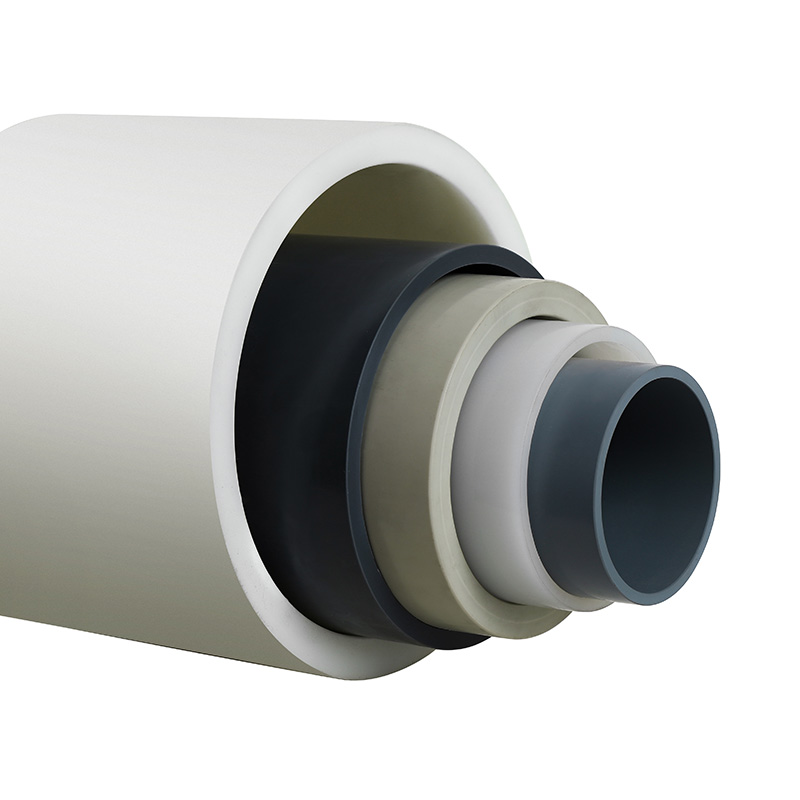

PPH Pipes DN15-600 GB Standard

Earthy Yellow Custom Large Diameter Thin PPH Culvert Pipe Light Weight ISO Certificate DN15-DN600 Plastic Pipe Tube For Industrial And Chemical Usage
Place of Origin: Zhejiang, China
Brand Name: KXPV
Material: PPH
Specification: DN15 - DN600
Length: 5000mm
Standard: DIN
Connection: Hot melt
Packing: Plastic Film
Certification: ISO Certificate
Color: Earthy Yellow
Usage: Chemical
Pressure: 0.6-1.6Mpa
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 100000 Meter / Meters per Month

Product Structural Features
FRPP (reinforced polypropylene) incorporates glass fiber within polypropylene, overcoming its inherent mechanical weakness. It can withstand corrosion from highly concentrated acids and alkalis with a pH range of 1-14, maintaining excellent corrosion resistance while operating in temperatures ranging from -20°C to 120°C. FRPP offers low cost, a long service life, and easy installation, making it widely used in industries such as steel, metallurgy, petroleum, chemicals, fertilizers, pharmaceuticals, power generation, wastewater treatment, copper foil, polysilicon, rare earth metals, graphite, new energy, energy storage, electronics and semiconductors, and chlor-alkali.
App Temperature Bound List
Material        Medium temperature° C Material Medium temperature° C
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
PVC-U Pipes

inch D L S
mm mm SDR7.4
1.6MPa
SDR11
1.0MPa
 SDR17.6
 0.6MPa
SDR26
0.4MPa
SDR33
0.32MPa
SDR41
0.25MPa
1/2" 20  5000  2.8  2.0
3/4" 25  5000  3.5  2.3
1" 32  5000  4.4  2.9
1-1/4" 40  5000  5.5  3.7    2.3
1-1/2" 50  5000  6.9  4.6    2.9
2" 63  5000  8.6  5.8    3.6
2-1/2" 75  5000  10.3  6.8    4.3
3" 90  5000  12.3  8.2    5.1  3.5
4" 110  5000  15.1  10    6.3  4.2
5" 140  5000  12.7    8.3  5.4
6" 160  5000  14.6    9.1  6.2  4.9
8" 225  5000  20.5   12.8  8.6  6.9
10" 280  5000  25.4   15.9  10.7  8.6  6.9
12" 315  5000  28.6   17.9  12.1  9.7  7.7
14" 355  5000  32.2   20.1  13.6  11.3  8.7
16” 400  5000  36.3   22.7  15.3  12.3  9.8
18" 450  5000  40.9   25.5  17.2  13.8  11
20" 500  5000   28.4  19.1  15.3  12.3
24" 630  5000   35.7  24.1  19.3  15.4
