FRP/PVC-C、FRP/PVC-U FRP Lined Pipe DN15-600 GB Standard

Wholesale Custom Reinforced Polymer Mortar Pipe FRP/PVC-C、FRP/PVC-U Composite Pipe Fittings for water and construction usage
Place of Origin: Ningbo, Zhejiang
Brand Name: KXPV
Material: FRP/PVC-C、FRP/PVC-U
Standard: DIN
Packing: Plastic Film
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 100000 Meter/Meters per Month

Product Structural Features

FRP/PVC-U and FRP/PVC-C (composite pipes and fittings) are lined with chemical-grade PVC-U and PVC-C pipes and fittings, reinforced with fiberglass reinforced plastic (FRP) using an interfacial adhesive and specialized mechanical winding techniques.

Combining the excellent corrosion resistance of PVC-U and PVC-C with the high strength and temperature resistance of FRP, they overcome the shortcomings of PVC-U and PVC-C, such as poor pressure resistance at high temperatures and susceptibility to outdoor aging. This expands the application range of single PVC-U and PVC-C piping systems and FRP pipes. FRP/PVC-U and FRP/PVC-C composite pipes and fittings offer excellent impact resistance, low fluid resistance, and resistance to electrochemical corrosion. They are suitable for use in industries such as steel, metallurgy, petroleum, chemicals, fertilizers, pharmaceuticals, power generation, sewage treatment, copper foil, polysilicon, rare earth metals, graphite, new energy, energy storage, electronics and semiconductors, and chlor-alkali.

App Temperature Bound List
Material        Medium temperature° C Material Medium temperature° C
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

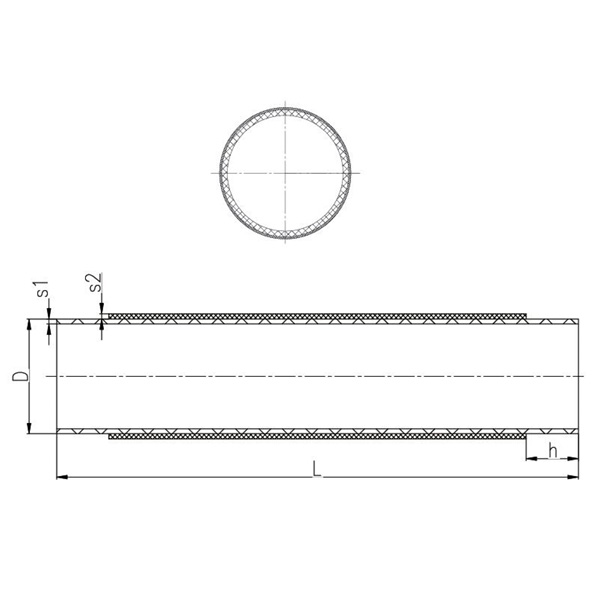

PVC-U Pipes

DN D S1 S2 L
(mm)
h
1.0Mpa 1.6Mpa 0.6MPa 1.0Mpa 1.6Mpa
15  20  4000  25
20  25  2.3  4000  30
25  32  2.9  4000  35
32  40  4000  40
40  50  2.4  3.7  4000  45
50  63  4.7  4000  50
65  75  3.6  5.6  4000  55
80  90  4.3  6.7  4000  65
100  110  5.3  8.1  2.5  4000  75
125  140  6.7  10.3  4000  90
150  160  7.7  11.8  2.5  3.5  4000  100
200  225  10.8  16.6  4000  130
250  280  13.4  20.6  2.5  4000  160
300  315  15  23.2  2.5  4.5  6.5  4000  180
350  355  16.9  26.1  7.5  4000  200
400  400  19.1  29.4  3.5  5.5  8.5  4000  225
450  450  21.5  3.5  9.5  4000  250
500  500  23.9  6.5  10.5  4000  280
600  630  30.3  12.5  4000  350
