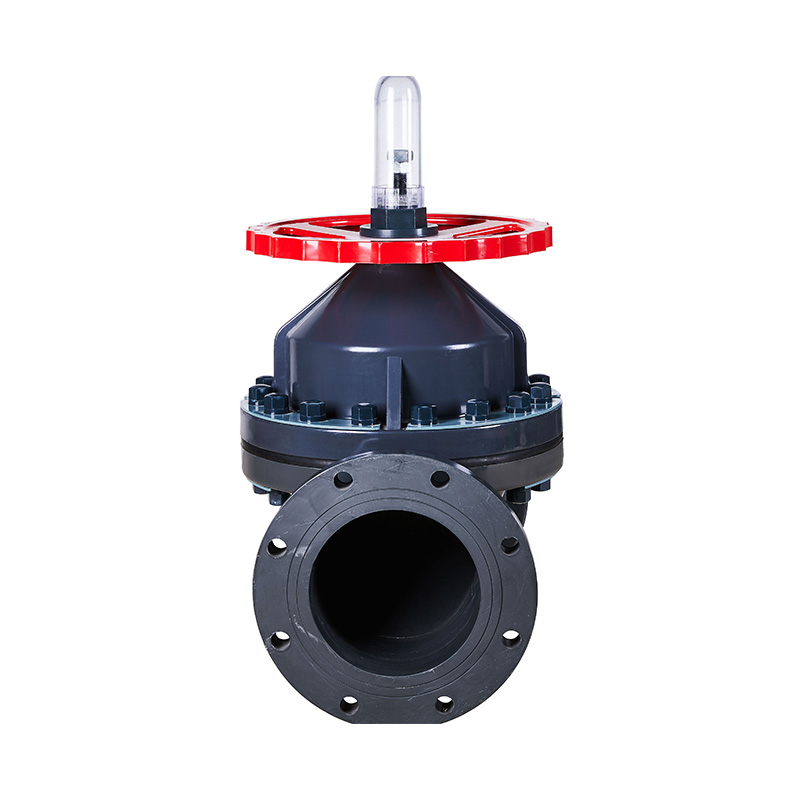

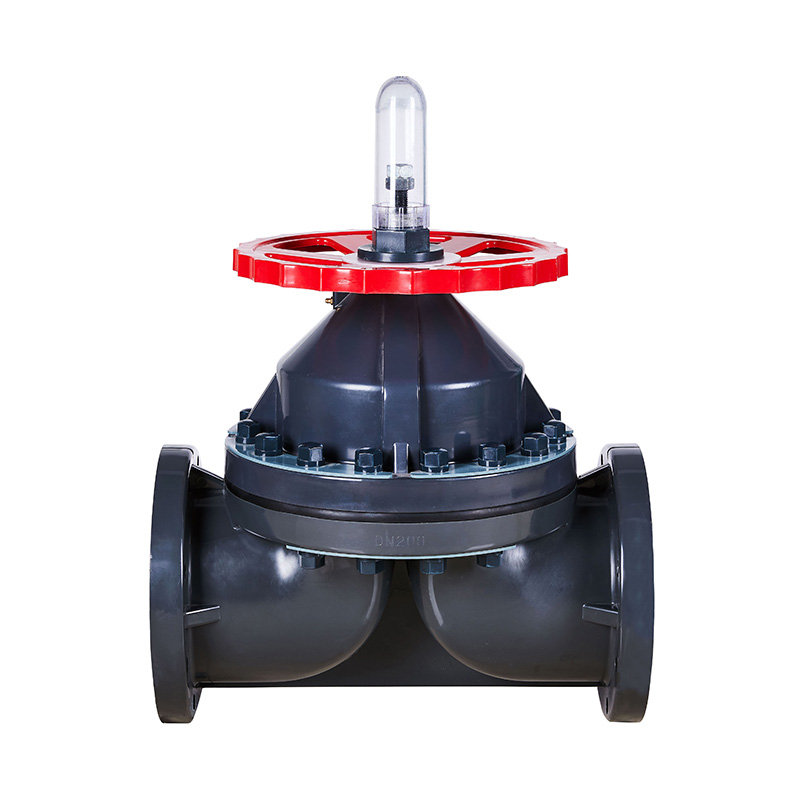

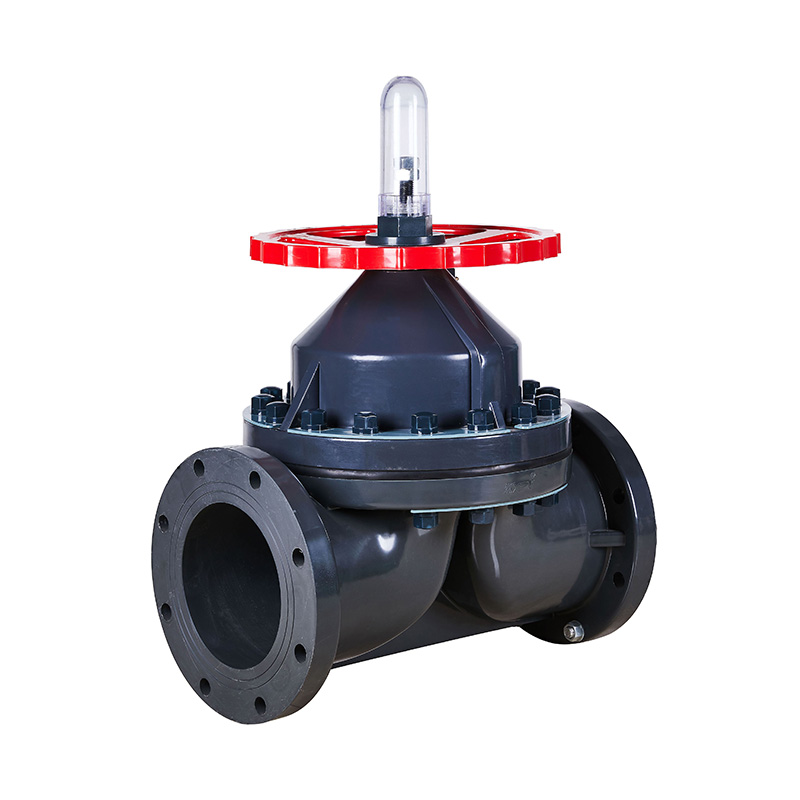

PVC-U G41F-10U Type A Flanged Diaphragm Valve DN15–300 1/2"-12" ANSI Standard

Hot Selling Factory Direct DN15–DN300 New High-Temperature PVC-U Flanged Diaphragm Valve for Chemical Plants, Latest Design, ANSI Standard
Application: General
Medium Temperature: High, Medium
Power Supply: Manual
Medium: Acid
Port Size: DN15–DN300
Structure: Diaphragm
Product Name: PVC-U Diaphragm Valve
Connection: Flanged End
Certificate: ISO9001
Pressure Class: 1.0Mpa(10bar)
Valve Type: 1-Way
Sealing: EPDM + F46
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Product Structural Features
1.The sealing diaphragm is made of F46 or PFA, with a flexing endurance of ≥120,000 cycles and corrosion resistance equivalent to F4.
2.The valve adopts a screw-lifting structure, featuring low operating torque and excellent stability.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
Part Material Table
No. Name Material Qty.
1 Cover Limit AS 1
2 Screw Steel 1
3 Retaining Nut 65Mn 1
4 Wheel FRPP,FRPP,FRPP,PPH,FRPP 1
5 Bonnet PVC-C,PVC-U,PVDF,PVDF,FRPP 1
6 Nut Copper 1
7 Platen Steel
8 Screw Steel
9 Platen Steel
10 Body Stell
11 Stem PVC-C,PVC-U,PVDF,PVDF,FRPP 1
12 Nut Cap PVC-C,PVC-U,PVDF,PPH,FRPP 1
13 Disc PVDF,Iron 1
14 Flim EPDM 1
15 Diaphragm F46/PFA/PTFE 1

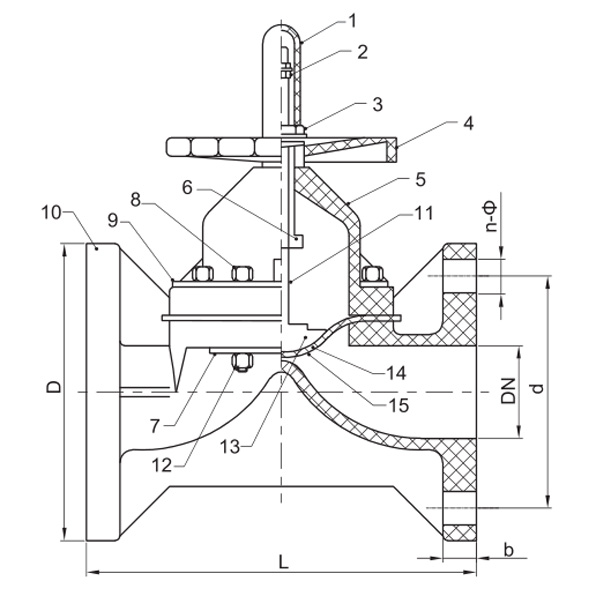

Dimension List

Specification d
(mm)
D
(mm)
L
(mm)
b
(mm)
n-Ф
(mm)
1/2"(15) 60 95 125 14 4-Φ16
3/4"(20) 70 115 135 18 4-Φ16
1"(25) 79 115 145 18 4-Φ16
1¼"(32) 89 135 160 18 4-Φ18
1½"(40) 98 145 180 20 4-Φ19
2"(50) 121 160 210 22 4-Φ19
2½"(65) 140 180 250 24 4-Φ19
3"(80) 152 195 300 24 8-Φ19
4"(100) 191 229 350 26 8-Φ19
5"(125) 216 250 400 30 8-Φ22
6"(150) 241 280 455 30 8-Φ23
8"(200) 299 343 570 40 8-Φ23
10"(250) 362 406 680 40 12-Φ23
