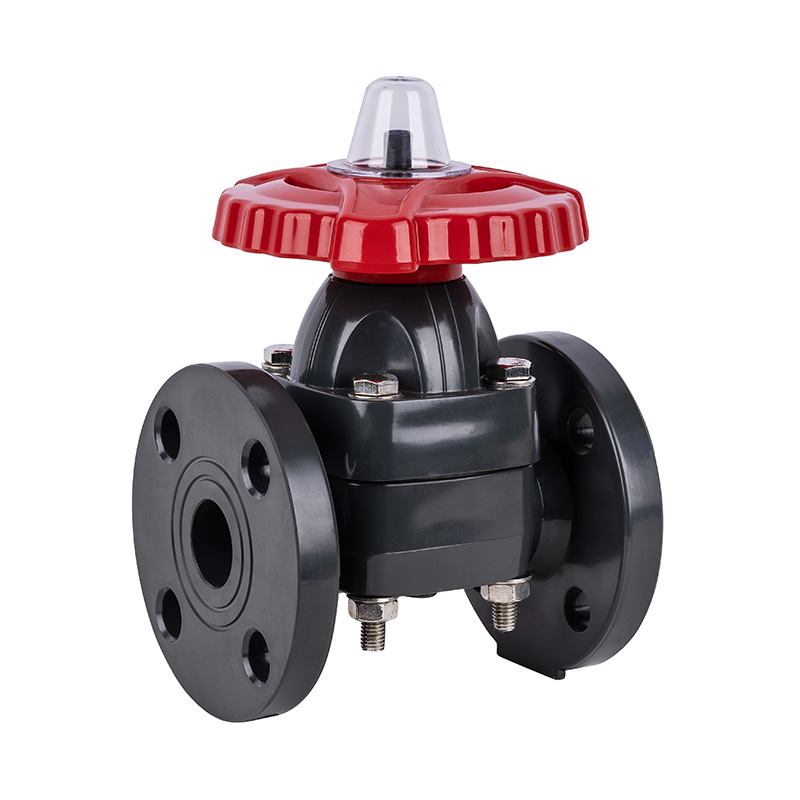

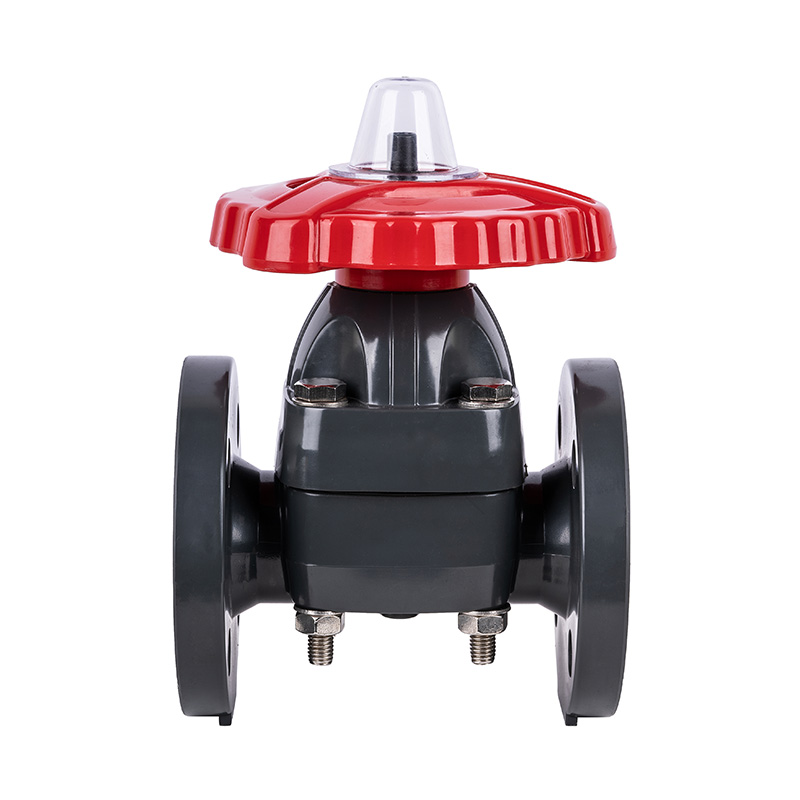

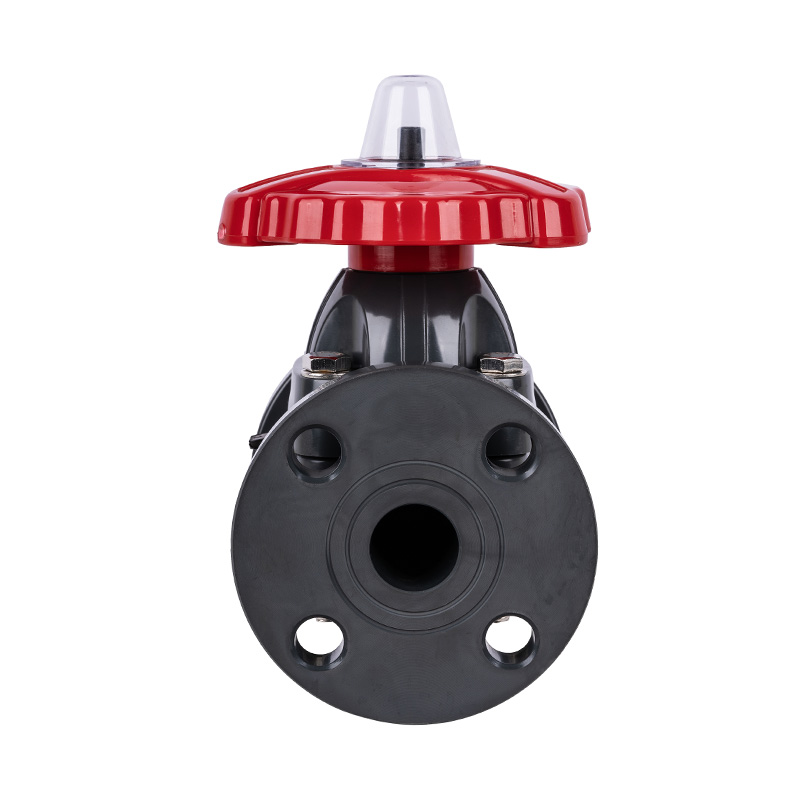

PVC-U G41F-10U Flanged Diaphragm Valve DN20、DN32-150 20A、32A-150A JIS Standard

Hot Sale Factory Direct DN20-150 High Temperature Latest Design PVC-U Flanged Diaphragm Valve for Chemical Plants, JIS Standard
Application: General
Medium Temperature: High, Medium
Power Source: Manual
Medium: Acid
Port Size: DN20-150
Structure: Diaphragm
Product Name: PVC-U Diaphragm Valve
Connection: Flanged End
Certificate: ISO9001
Pressure Class: 1.0Mpa(10bar)
Valve Type: 1-way
Sealing: EPDM + F46
Delivery Time: 7 days
Minimum Order Quantity: 1 Piece

Product Structural Features
1.The sealing diaphragm is made of F46 or PFA, with a flexing endurance of ≥120,000 cycles and corrosion resistance equivalent to F4.
2.The valve adopts a screw-lifting structure, featuring low operating torque and excellent stability.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

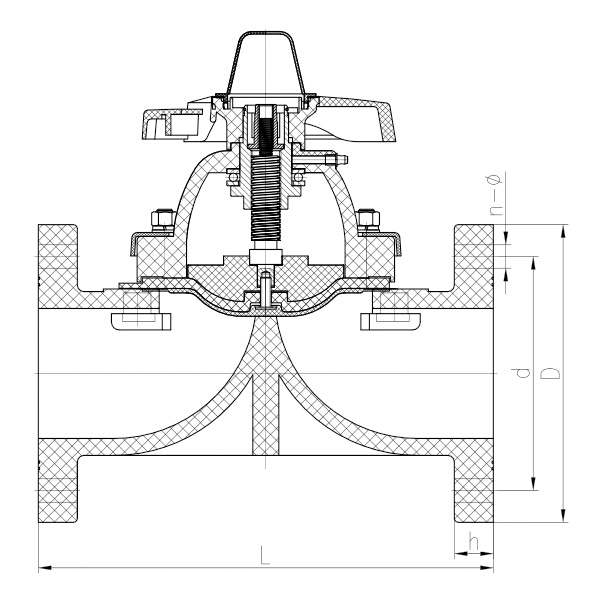

Diaphragm Valve Assembly Detail Drawing
No. Name Material
1 Cover limit AS
2 Stud Steel,StainlessSteel
3 Retaining Nut FRPP
4 Washer FRPP
5 Wheel Alloy material
6 Platen Steel,StainlessSteel
7 Double headed stud and Nut Steel,StainlessSteel
8 Bonnet FRPP、PVDF、PVC-U、PVC-C、PPH
9 Yoke Nut Steel, copper Ht300
10 Stem Steel,StainlessSteel
11 Disc cast iron、FRPP、PVDF、PVC-U、PVC-C、PPH、Steel,StainlessSteel、C.I.FRP
12 Flim EPDM,FPM
13 Diaphragm F46.PFA
14 Body FRPP、PVDF、PVC-U、PVC-C、PPH
15 Platen Steel,StainlessSteel



Dimension List

DN (mm) D d L h n Ø
20(3/4") 105 75 120 18 4 15X16
25(1) 115 90 130 18 4 19X20.5
32(1 1/4") 135 100 160 20 4 19X20.5
40(1 1/2") 145 105 180 20 4 19X20.5
50(2") 160 120 210 21 4 19X20.5
65(2 1/2") 180 140 250 22 4 19X20.5
80(3") 195 150 280 22 8 19X20.5
100(4") 229 175 340 24 8 19X20.5
125(5") 250 210 410 24 8 23
150(6") 280 240 480 26 8 23
