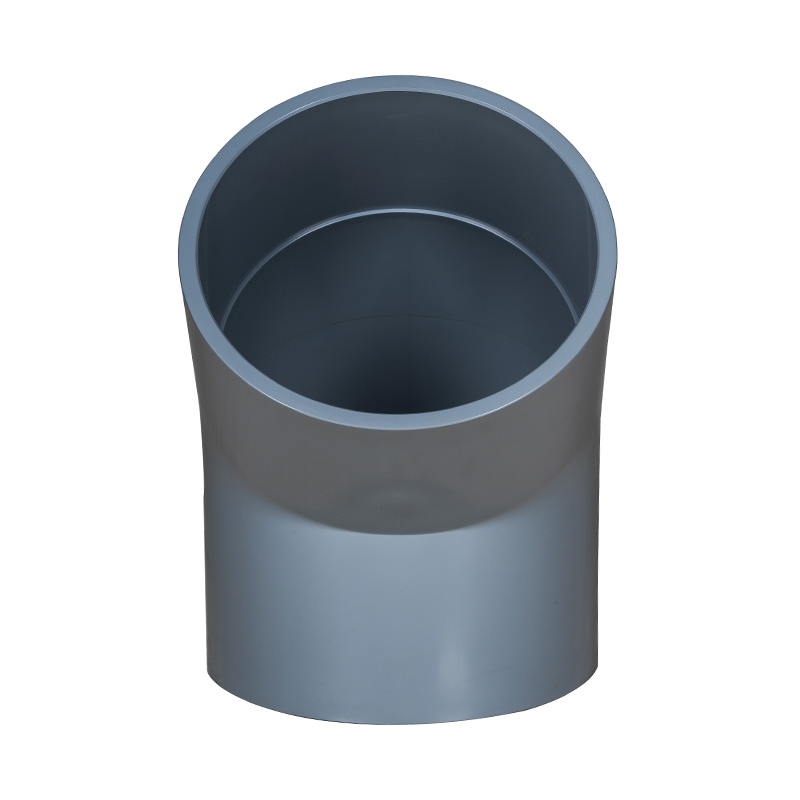

PVC-C 45°Elbow DN15-600 1/2"-24" ANSI Standard

Super Durable Light Gray PVC-C 45° Equal Elbow, Professional Standard Sizes DN15-DN600, PVC-C 45° Elbow Pipe Fitting, ANSI SCH80 Standard
Origin: China
Brand Name: KXPV
Material: Plastic
Process: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Color: Light Gray
Size: DN15-DN600
Application: Industry
Packaging: Carton
Working Pressure: 1.0-1.6 MPa (10-25 bar)
Supply Capacity: 10,000 Pieces/Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.Excellent Chemical Resistance: The temperature range is wide from -20℃ to 95℃. The ion content in the medium meets ultra-pure water standards. Hygiene performance complies with national sanitation standards.
2.Outstanding Strength, Toughness, and Chemical Corrosion Resistance: The material offers superior strength and resistance to chemical corrosion.
3.Durability: Exceptional aging resistance and UV resistance significantly extend the lifespan compared to other piping systems.
4.Low Thermal Conductivity: Thermal conductivity is approximately 1/200 of steel; flame retardant properties are self-extinguishing.
5.Lightweight: Weighs only about 1/5 of steel pipes and 1/6 of copper pipes.
6.Low Resistance, High Flow Rate: The smooth and clean pipe wall results in minimal friction resistance and adhesion when transporting fluids.
7.Easy Installation, Low Cost: Can be connected using bonding, threading, and most simply with adhesive, offering a cost-effective and user-friendly solution.

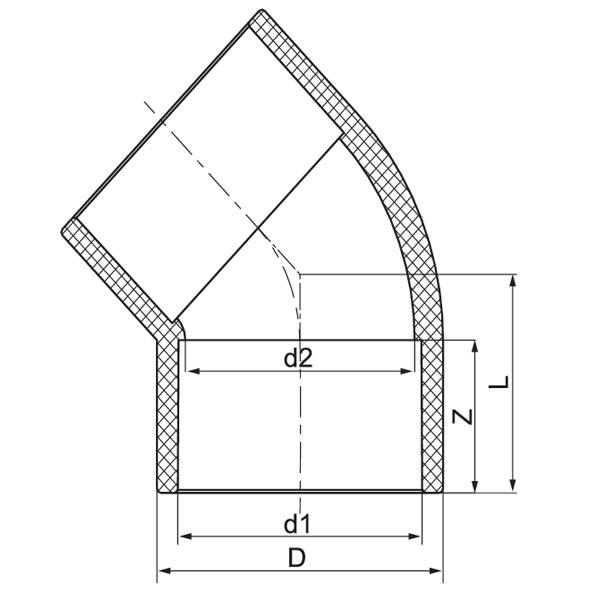

Dimension List

Specification D
(mm)
d1
(mm)
d2
(mm)
L
(mm)
Z
(mm)
1/2" (15) 31.5  21.34  18  29  22.5
3/4" (20) 37  26.67  23  33.16  25.5
1" (25) 45  33.4  29  38.32  29
1¼" (32) 54.5  42.16  38  43.29  32
1½" (40) 61  48.26  44  47.6  35
2" (50) 74  60.32  55  53.8  38.5
2½" (65) 90  73.02  68  63.6  45
3" (80) 107  88.9  84  70.2  48
4" (100) 134  114.3  109  85.3  57.5
5" (125) 163  141.3  134  100.8  67
6" (150) 192  168.28  160  116.3  76.5
8" (200) 247  219.08  210  153.2  102
