Home / Products / Plastic Pipe/Pipe Fittings Series / PVC-C Pipe/Pipe Fittings Series / PVC-C Reducing Tee DN15*20-600*500 1/2*3/4"-24*20" ANSI Standard
PVC-C Reducing Tee DN15*20-600*500 1/2*3/4

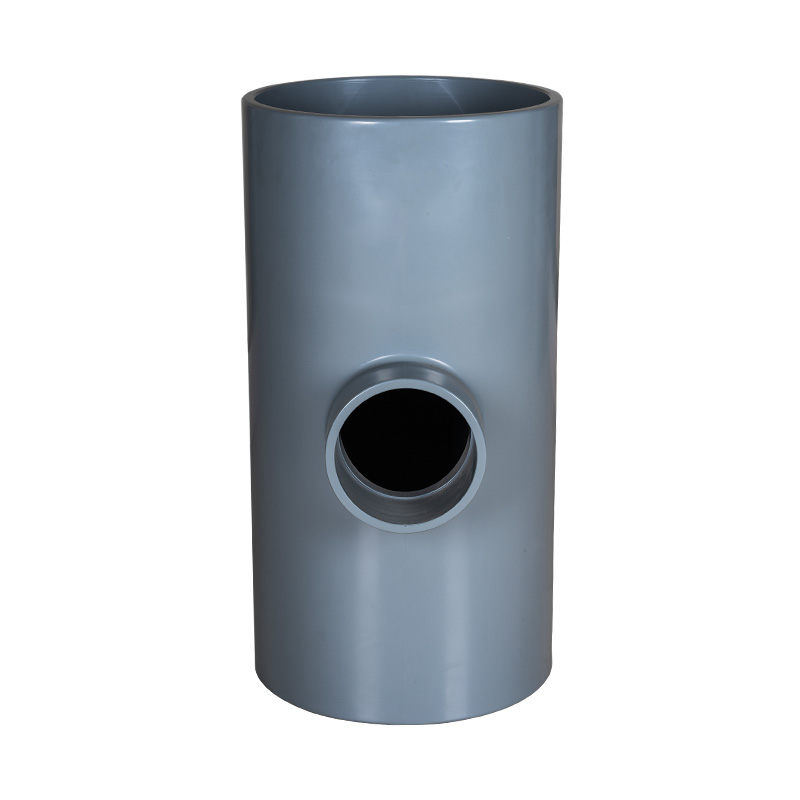

PVC-C Reducing Tee DN15*20-600*500 1/2*3/4"-24*20" ANSI Standard

High-Quality Light Gray PVC-C Reducing Tee with Internal Thread and Socket Connection, Plastic Pipe Fitting for Chemical and Water Use, ANSI SCH80 Standard
Origin: China
Brand Name: KXPV
Process: Forged
Connection Type: Female, Socket
Shape: Reducing
Head Code: Round
Color: Light Gray
Application: Industrial and Chemical
Material: PVC-C
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece
Supply Capacity: 10,000 Pieces/Month

Contact Us
PREV：PVC-C 45°Elbow DN15-600 1/2"-24" ANSI Standard
NEXT：PVC-C Tee DN15-600 1/2"-24" ANSI Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.Excellent Chemical Resistance: The temperature range is wide from -20℃ to 95℃. The ion content in the medium meets ultra-pure water standards. Hygiene performance complies with national sanitation standards.
2.Outstanding Strength, Toughness, and Chemical Corrosion Resistance: The material offers superior strength and resistance to chemical corrosion.
3.Durability: Exceptional aging resistance and UV resistance significantly extend the lifespan compared to other piping systems.
4.Low Thermal Conductivity: Thermal conductivity is approximately 1/200 of steel; flame retardant properties are self-extinguishing.
5.Lightweight: Weighs only about 1/5 of steel pipes and 1/6 of copper pipes.
6.Low Resistance, High Flow Rate: The smooth and clean pipe wall results in minimal friction resistance and adhesion when transporting fluids.
7.Easy Installation, Low Cost: Can be connected using bonding, threading, and most simply with adhesive, offering a cost-effective and user-friendly solution.

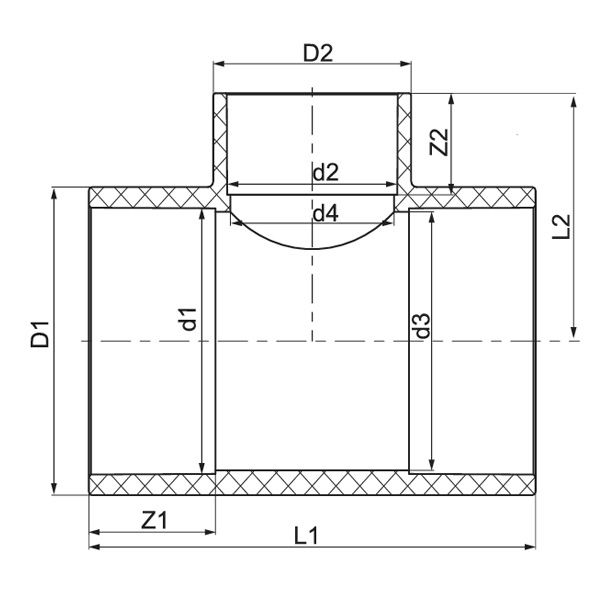

Dimension List

Specification D1
(mm)		 D2
(mm)		 d1
(mm)		 d2
(mm)		 d3
(mm)		 d4
(mm)		 L1
(mm)		 L2
(mm)		 Z1
(mm)		 Z2
(mm)
3/4″* 1/2″（20*15） 37  31.5  26.67  21.34  23  18  78  38.5  25.5  22.5
1″* 1/2″（25*15） 45  31.5  33.4  21.34  29  18  87  42.5  29  22.5
1″* 3/4″（25*10） 45  37  33.4  26.67  29  23  92  45.5  29  25.5
1¼″* 1/2″（32*15） 54.5  31.5  42.16  21.34  38  18  93  47  32  22.5
1¼″* 3/4″（32*20） 54.5  37  42.16  26.67  38  23  99  50  32  25.5
1¼″* 1″（32*25） 54.5  45  42.16  33.4  38  29  104  53.5  32  29
1½″* 3/4″（40*20） 61  37  48.26  26.67  44  23  105  53.5  35  25.5
1½″* 1″（40*25） 61  45  48.26  33.4  44  29  115  57  35  29
1½″* 1¼″（40*32） 61  54.5  48.26  42.16  44  38  120  60  35  32
2″* 1″（50*25） 74  45  60.32  33.4  55  29  119  63  38.5  29
2″* 1¼″（50*32） 74  54.5  60.32  42.16  55  38  128  66  38.5  32
2″* 1½″（50*40） 74  61  60.32  48.26  55  44  134  69  38.5  35
2½″* 1¼″（65*32） 90  54.5  73.02  42.16  68  38  143  73.5  45  32
2½″* 1½″（65*40） 90  61  73.02  48.26  68  44  149  76.5  45  35
2½″* 2″（65*50） 90  74  73.02  60.32  68  55  160  80  45  38.5
3″* 1½″（80*40） 107  61  88.9  48.26  83  44  157  85  48  35
3″* 2″（80*50） 107  74  88.9  60.32  83  55  168  88.5  48  38.5
3″* 2½″（80*65） 107  90  88.9  73.02  83  68  181  95  48  45
4″* 2″（100*50） 134  74  114.3  60.32  109  55  188  102  57.5  38.5
4″* 2½″（100*65） 134  90  114.3  73.02  109  68  201  108.5  57.5  45
4″* 3″（100*80） 134  107  114.3  88.9  109  83  216  111.5  57.5  48
5″* 2½″（125*65） 162  90  141.3  73.02  134  68  223  122.5  67  45
5″* 3″（125*80） 162  107  141.3  88.9  134  83  238  125.5  67  48
5″* 4″（125*100） 162  134  141.3  114.3  134  109  264  135  67  57.5
6″* 3″（150*80） 192  107  168.28  88.9  160  84  260  140  76.5  48
6″* 4″（150*100） 192  134  168.28  114.3  160  105  286  149.5  76.5  57.5
6″* 5″（150*125） 192  162  168.28  141.3  160  132  311  159  76.5  67
8″* 4″（200*100） 247  134  219.08  114.3  210  86  340  176  102  57.5
8″* 5″（200*125） 247  162  219.08  141.3  210  105  365  185.5  102  67
8″* 6″（200*150） 247  192  219.08  168.28  210  154  391  195  102  76.5
