What is the difference between a wafer butterfly valve and a flange butterfly valve

Update:22-07-2021
Summary:

Wafer butterfly valves and flange butterfly valves are […]

Wafer butterfly valves and flange butterfly valves are two common types of butterfly valves. Both types of butterfly valves have a very wide range of applications, but many friends can’t distinguish between wafer butterfly valves and flanged butterfly valves, and they don’t know the difference between the two. The butterfly valve's wafer and flange are two connection methods. In terms of price, the wafer type is relatively cheaper, the price is roughly 2/3 of the flange.

Wafer type valves have longer bolts and require higher construction accuracy. If the flanges on both sides are not aligned, the bolts will be subjected to greater shearing force, and the valve is prone to leakage.

Wafer-type valve bolts are generally relatively long. Under high temperature conditions, the expansion of the bolt may cause leakage, so it is not suitable for large pipe diameters under high temperature conditions. In addition, wafer-type butterfly valves generally cannot be used in the end of the pipeline and downstream situations that need to be disassembled, because when the downstream flange is disassembled, the wafer-type valve will fall off. In this case, a sub-joint must be made separately. In order to disassemble, and the flange type butterfly valve does not have the above problems, but the cost will be higher.

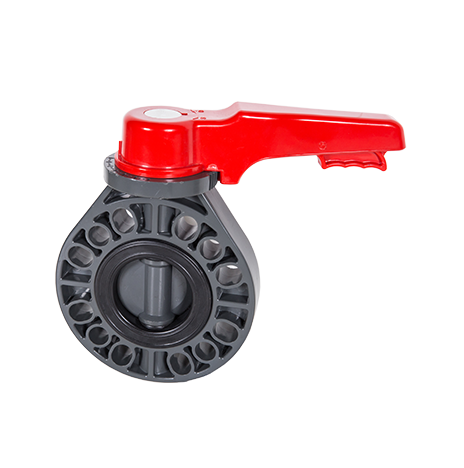

The wafer butterfly valve has no flanges at both ends of the valve body, only a few guide bolt holes, and the valve is connected with the flanges at both ends by a set of bolts/nuts. In contrast, disassembly is more convenient, and the valve cost is lower, but the disadvantage is that one sealing surface has a problem, and both sealing surfaces have to be disassembled.

The flange type butterfly valve has flanges at both ends of the valve body, which are connected with the pipe flange, and the sealing is relatively more reliable, but the valve manufacturing cost is relatively high.
