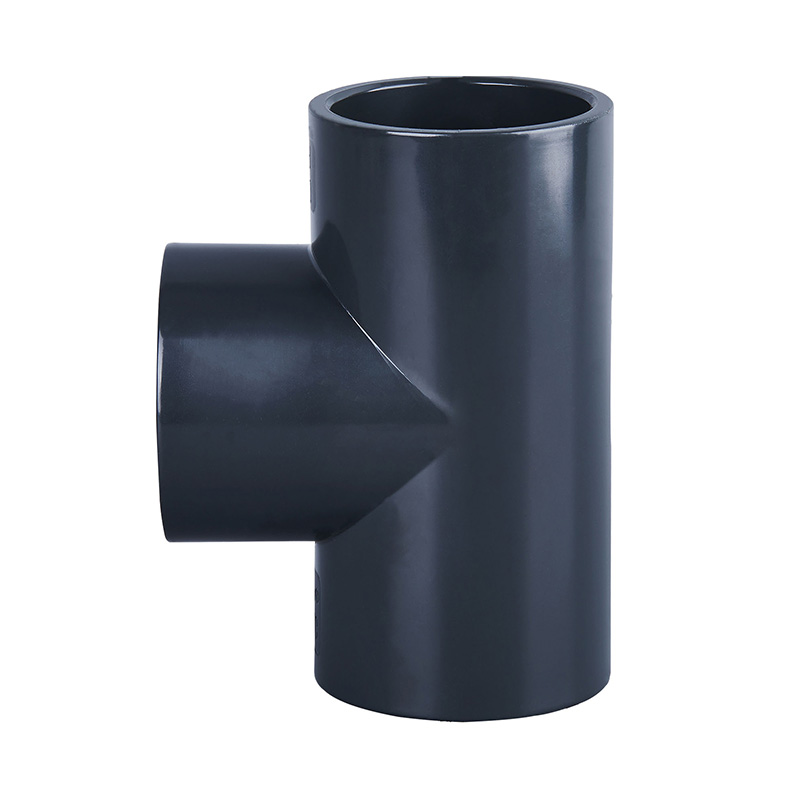

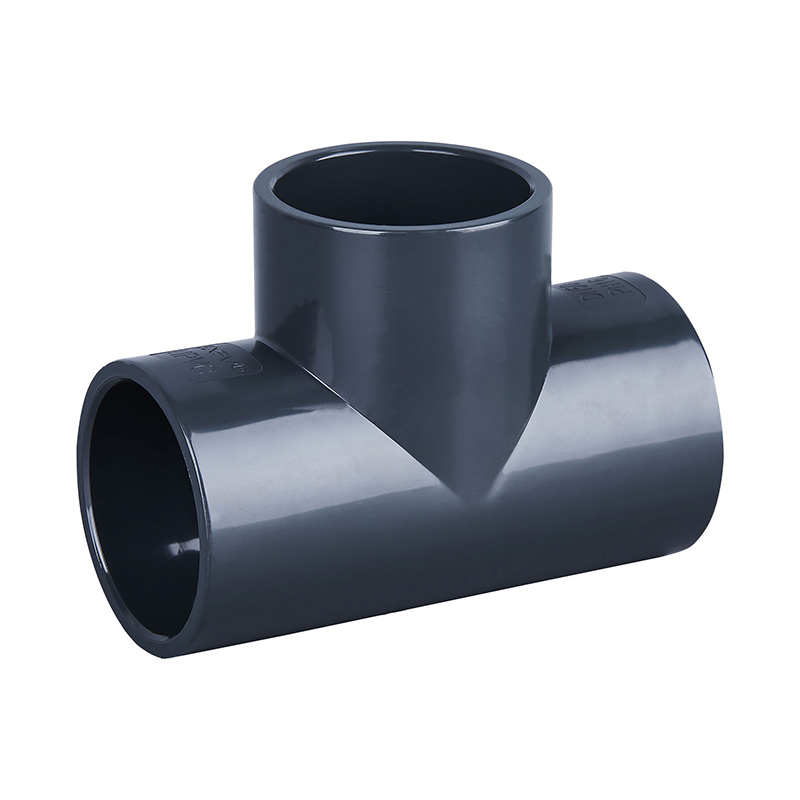

PVC-U Tee DN15-600 1/2"-24" ANSI Standard

Factory Price Dark Gray PVC-U Tee, Equal, DN15-DN600, Water Pipe Fitting for Drainage and Sanitation, ANSI SCH80 Standard
Origin: China
Brand Name: KXPV
Material: PVC-U
Color: Dark Gray
Process: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Size: DN15-DN600
Application: Industry
Packaging: Carton
Working Pressure: 1.0 MPa
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.Lightweight: PVC-U material has only 1/10 the weight of cast iron, making transportation and installation easy, thus reducing costs.
2.Excellent Chemical Resistance: PVC-U offers excellent resistance to acids and alkalis, except for near-saturated strong acids and bases.
3.Durable: PVC-U has outstanding weather resistance and is not susceptible to corrosion by bacteria or fungi.
4.Non-conductive: PVC-U material does not conduct electricity, nor is it subject to corrosion from electrical currents, thus eliminating the need for secondary processing. It is non-flammable and will not support combustion, so there are no fire hazards.
5.Low Resistance, High Flow Rate: The smooth inner walls minimize fluid flow loss, and dirt is not easily attached to the smooth pipe surface, making maintenance easier and reducing maintenance costs.
6.Easy Installation, Low Cost: Cutting and connecting PVC-U pipes is simple. PVC glue connections are proven to be safe, reliable, easy to operate, and cost-effective.

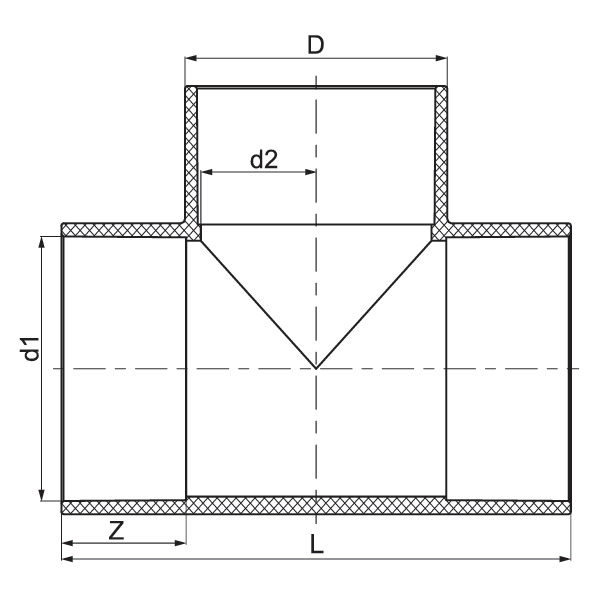

UPVC Tee

Specification      D
(mm)
d1
(mm)
d2
(mm)
L
(mm)
Z
(mm)
1/2" (15) 30  21.34  18  72  22.5
3/4" (20) 36  26.67  23  83  25.5
1" (25) 44  33.4  29  98  29
1¼" (32) 53  42.16  38  113  32
1½" (40) 60  48.26  44  126  35
2" (50) 73  60.32  55  145  38.5
2½"(65) 89  73.02  68  173  45
3" (80) 106  88.9  83  196  48
4" (100) 134  114.3  109  242  57.5
5" (125) 162  141.3  134  289  67
6" (150) 192  168.28  160  337  76.5
8" (200) 247  219.08  210  441  102
