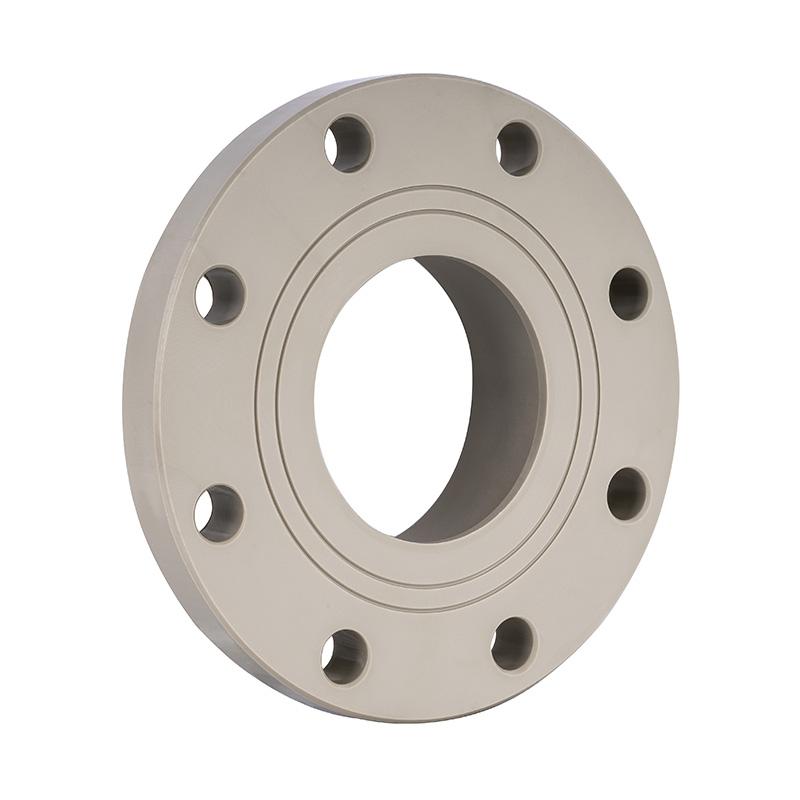

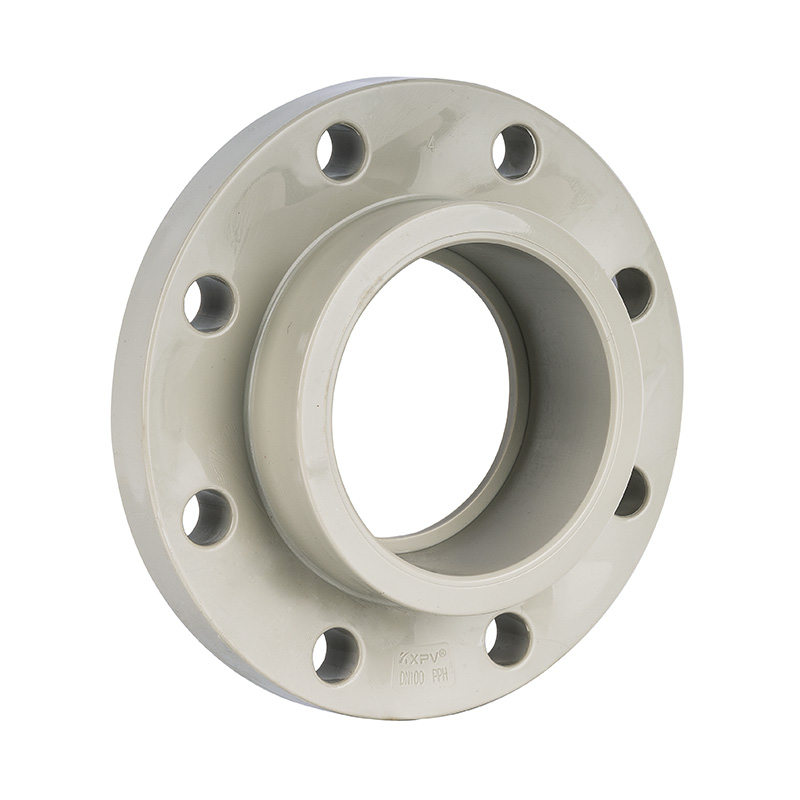

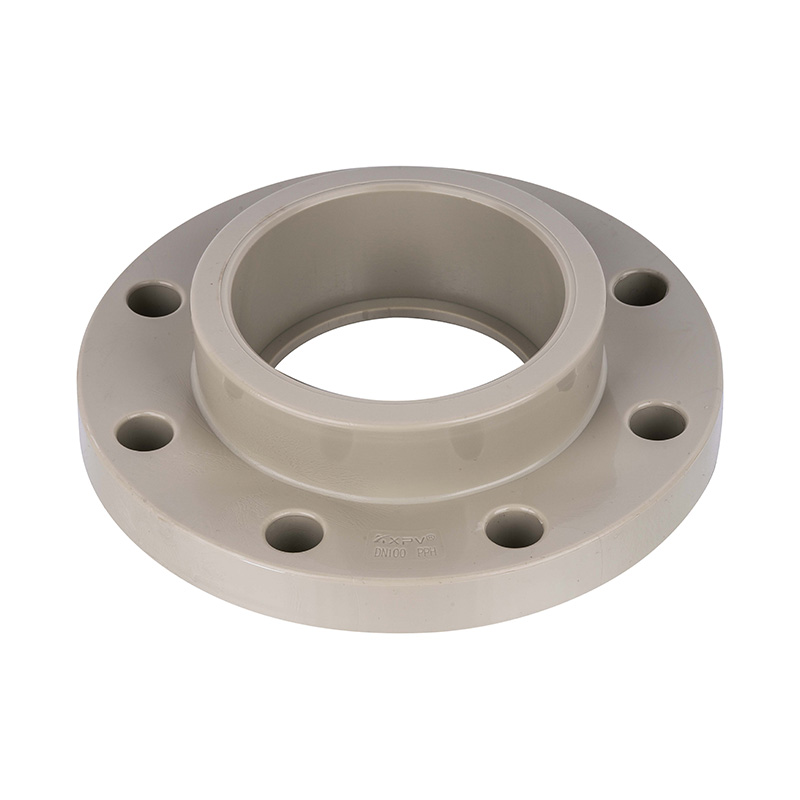

PPH Hot Melt Socket Flange DN15-400 GB Standard

Wholesale High Quality Earthy Yellow PPH Hot Melt Socket Flange 1.0-1.6 MPa working pressure, DN15-DN400 general-purpose plastic pipe fittings for the sewage and chemical industries
Place of Origin: China
Brand Name: KXPV
Material: PPH
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Earthy Yellow
Size: DN15-DN400
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

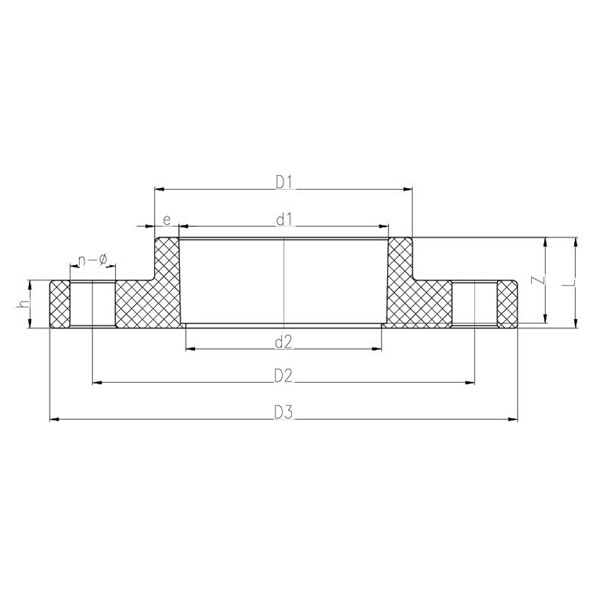

PPH Hotmelt Socket Flange

DN D1   D2 D3 d1 d2 L h Z e n-Φ
15 30.5    65  95  20  15  24  14  18.5  4-Φ14
20 36.5    75  105  25  20  25  16  20  5.7  4-Φ14
25 46.5    85  115  32  26  26  16  20.5  7.2  4-Φ14
32 53.5    100  135  40  32  27  18  22  6.7  4-Φ18
40 65    110  145  50  41  30  18  25  7.5  4-Φ18
50 82    125  160  63  51  33  20  27.5  9.5  4-Φ18
65 93.5    145  185  75  61  37.5  20  31  9.2  4-Φ18
80 114.7    160  196  90  74.5  41.5  21  36  12.5  8-Φ18
100 134.5    180  215  110  95  52.5  23  47.5  12.5  8-Φ18
