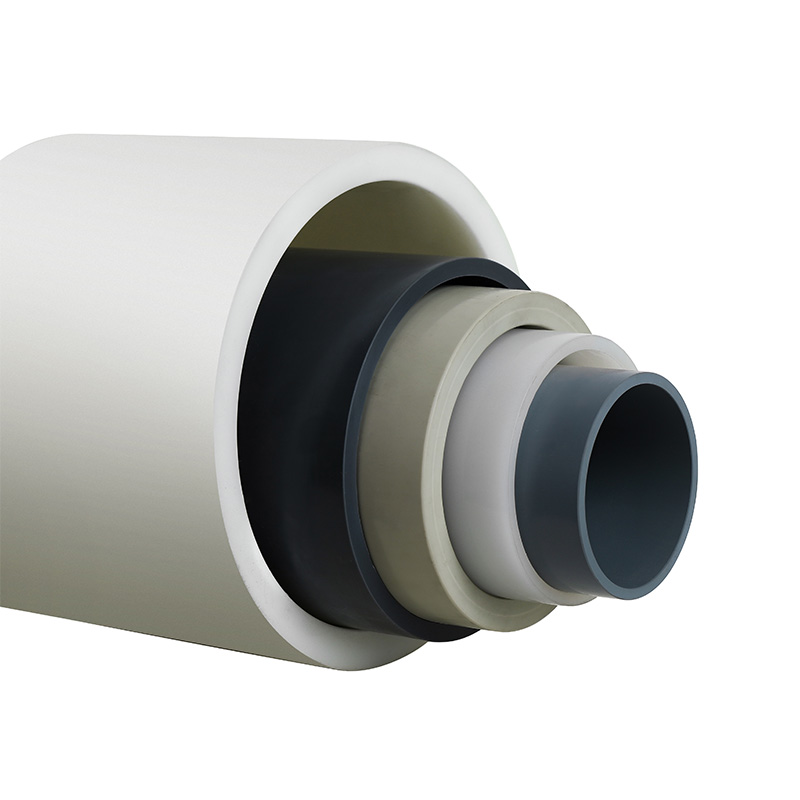

PVC-U Pipes DN15-600 1/2"-24" ANSI Standard

High-Quality Dark Gray PVC-U Pipe, DN15-600, Custom Sizes 150mm, 250mm, 300mm, 600mm, PN10-16 High Pressure Plastic PVC-U Sanitary Drainage Pipe, ANSI SCH80 Standard
Origin: Zhejiang, Ningbo
Brand Name: KXPV
Material: PVC-U
Specification: DN15-600
Length: 4000mm
Standard: DIN
Working Pressure: PN10-16
Color: Dark Gray
Raw Material: PVC-U
Size: DN15-600
Delivery Time: 7 Days
Supply Capacity: 100,000 Meters/Month

Product Structural Features
PVC-U (rigid polyvinyl chloride) has a high overall cost-effectiveness; the inner and outer walls are smooth, no fouling, acid and alkali resistance, and good corrosion resistance; PVC-U material has small resistance to the medium in the pipeline, a large flow rate, no heat transfer, no electrical conductivity, flame retardant, and high mechanical strength. The weight of PVC-U is greatly reduced compared to steel and copper, making it easier to transport, install and construct. Widely used in steel, metallurgy, petroleum, chemical industry, fertilizer, pharmaceutical, electric power, sewage treatment, copper foil, polysilicon, rare earth, graphite, new energy, energy storage, electronic semiconductor, chlor-alkali and other industries.
App Temperature Bound List
Material        Medium temperature° C Material Medium temperature° C
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
PVC-U Pipes

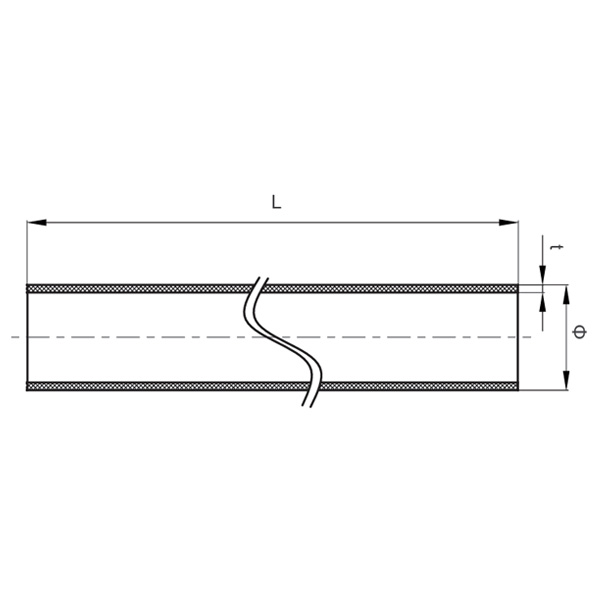

Specification Φ(mm) t(mm) L(mm)
1/2"(15) 21.34 3.8 4000
3/4"(20) 26.67 4 4000
1"(25) 33.4 4.6 4000
1¼"(32) 42.16 4.9 4000
1½"(40) 48.26 5.1 4000
2"(50) 60.32 5.6 4000
2½"(65) 73.02 7.1 4000
3"(80) 88.9 7.7 4000
4"(100) 114.3 8.6 4000
5"(125) 141.3 9.6 4000
6"(150) 168.28 11 4000
8"(200) 219.08 12.7 4000
