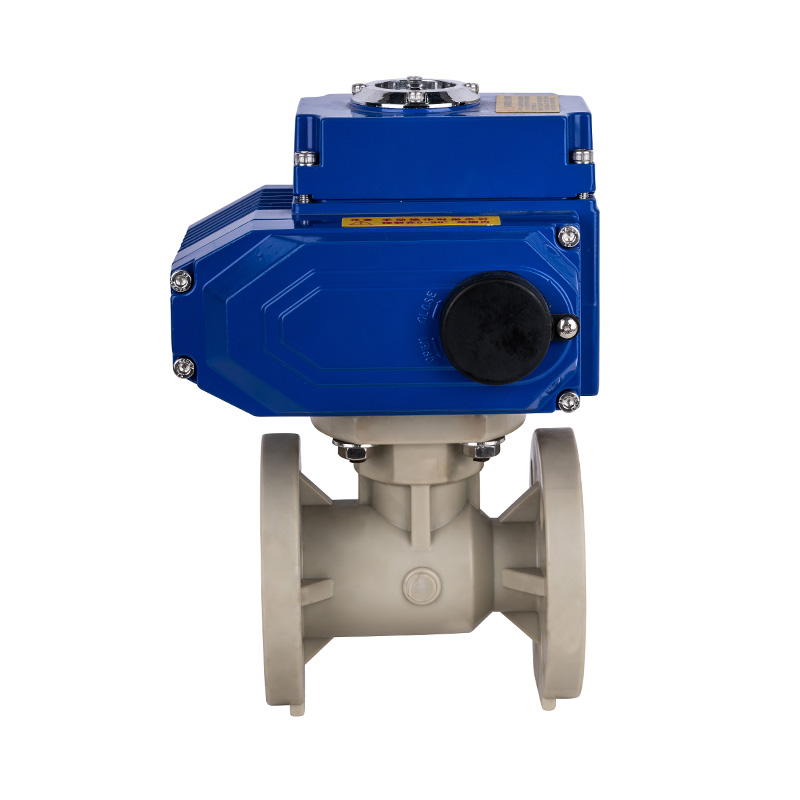

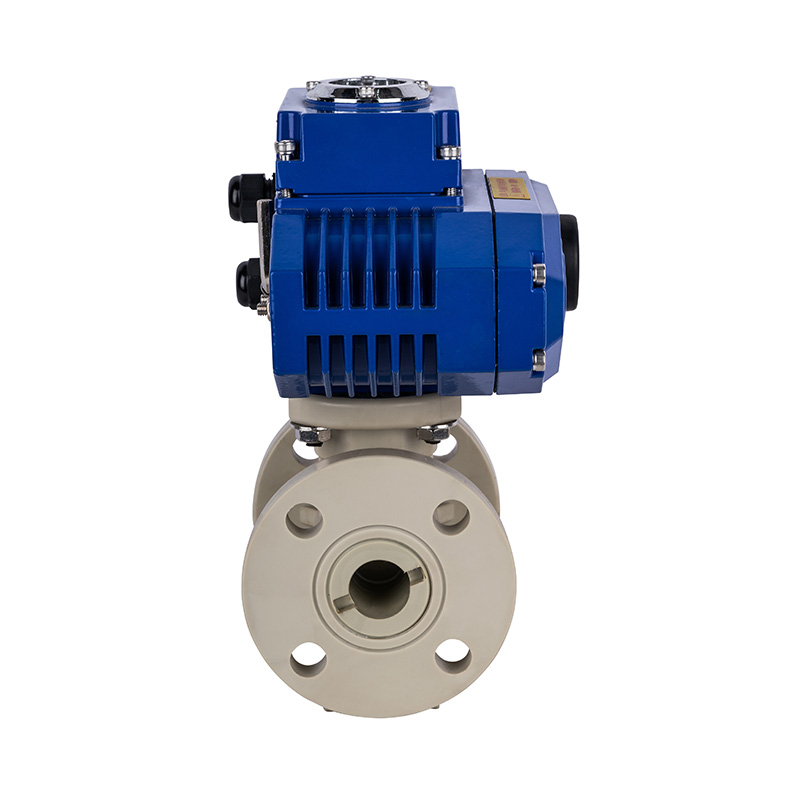

PPH D941F-10S Electric Flange Ball Valve DN20-300 20A-300A JIS Standard

Competitive Price PPH Electric Actuator Ball Valve, Custom, for Agriculture and Water Systems, JIS Standard
Type: Ball Valve
Origin: China
Brand Name: KXPV
Model: D941X-10S
Application: General
Medium Temperature: High, Medium
Power Source: Pneumatic
Medium: Acid
Port Size: DN20-300
Structure: Fixed Ball Valve
Body Material: PPH
Connection: Flanged End
Standard: GB/T37842 F4
Usage: Industrial
Working Temperature: -20~+110°C
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.The engineering plastic series ball valves are made of FRPP, PVDF, PVC-C, PVC-U, PPH, and other corrosion-resistant thermoplastic materials, molded in a single injection process, offering strong corrosion resistance.
2.The PTFE seat's tightness can be adjusted appropriately.
3.The double O-ring design provides dual leak protection.
4.The valve features a refined appearance, smooth surface, fine processing, and a full-flow design.
5.The actuator can be remotely controlled via a computer or control center, allowing the valve to regulate the flow and flow rate of the medium, making operation more convenient, efficient, and reducing labor costs while ensuring the safety of on-site personnel



Dimension List

DN (mm) D d L h n ø
20(3/4") 105 75 120 16 4 15
25(1") 120 90 130 16 4 19
32(1 1/4) 135 100 145 18 4 19
40(1 1/2") 145 105 168 20 4 19
50(2") 160 120 180 20 4 19
65(2 1/2") 180 140 225 22 4 19
80(3") 195 150 260 25 4 19
100(4") 215 175 280 25 8 19
125(5") 245 210 350 30 8 23
150(6") 280 240 400 30 8 23
300(12") 483 400 450 38 16 25
