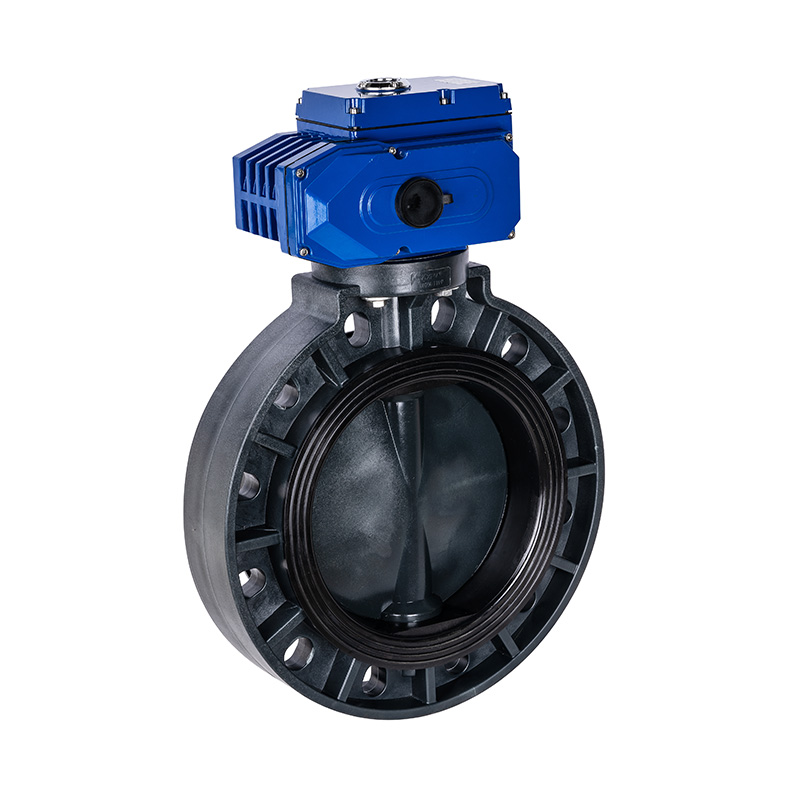

PVC-U D971X-10U Electric Butterfly Valve DN40-1000 40A-1000A JIS Standard

PVC-U Electric Automatic Butterfly Valve, Center Seal Soft Seal, DN40-1000, Industrial and Household Plastic Valve, JIS Standard
Power Source: Electric
Connection Type: Wafer
Structure: Center Seal
Sealing Type: Forced Seal
Stem: Standard
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -5~45°C
Sealing Surface Material: Soft Seal
Application: Industrial Use, Water Industry Use
Stem Material: Steel, Stainless Steel
Brand: KXPV
Specification: DN40-1000
Origin: Zhejiang, Ningbo

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.The engineering plastic series butterfly valves are made from FRPP, PVDF, PVC-C, PVC-U, PPH, and other corrosion-resistant thermoplastic materials, molded in a single injection process, offering strong corrosion resistance.
2.High corrosion-resistant rubber is used to ensure the valve's sealing performance, making it suitable for transporting high-viscosity media.
3.The valve has a simple structure with a 90° rotation for quick opening and closing, easy installation, and good regulation performance.
4.The actuator can be remotely controlled via a computer or control center, allowing the valve to regulate the flow and flow rate of the medium, making operation more convenient, efficient, and reducing labor costs while ensuring the safety of on-site personnel.

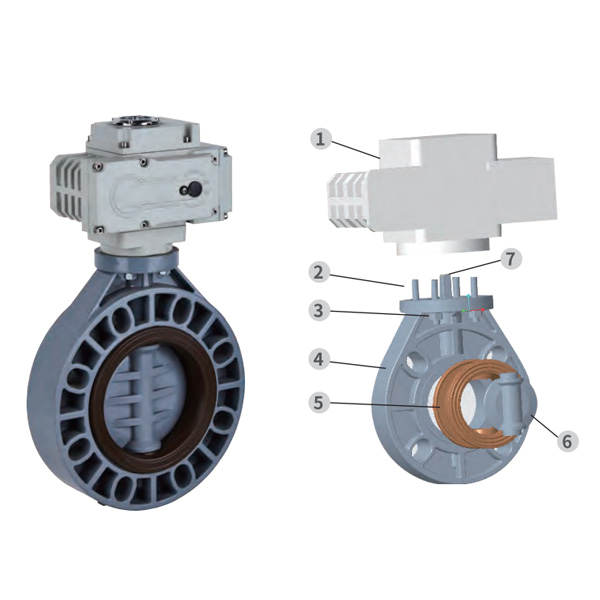

Part Material Table

No. Name Material
1 Electric actuator Aluminium
2 Stud Steel,StainlessSteel
3 Hexagonal nut SS Steel、Steel
4 Body FRPP,PVDF,PVC-C,PVC-U,PPH
5 Sealing rubber EPDM,FPM
6 Valve Plate FRPP,PVDF,PVC-C,PVC-U,PPH
7 Stem Steel,StainlessSteel

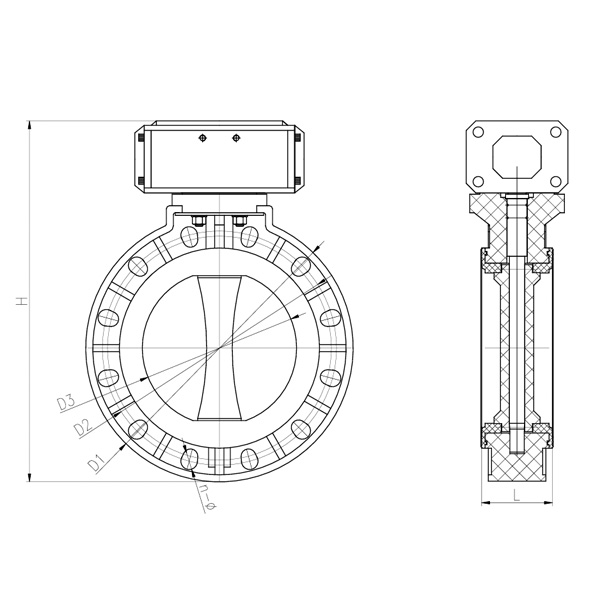

Dimension List

DN (mm) D1 D2 D3 L H n-ø
GB JIS ANSI GB JIS ANSI
40(1 1/2") 150 110 105 3.88 45 40 280 4-ø19X25 4-ø19X25 4-ø19X25
50(2") 160 125 120 4.74 51 42 300 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
65(2 1/2") 180 145 140 5.49 66 47 310 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
80(3") 200 160 150 6 79 45 400 8-ø19X25 8-ø19X24 4-ø19X25
100(4") 220 180 175 7.5 98.5 55 410 8-ø19X32 8-ø19X32 8-ø19X32
125(5") 250 210 210 8.5 125 65 500 8-ø23X33 8-ø23X33 8-ø23X33
150(6) 290 240 240 9.51 148 75 530 8-ø23X34 8-ø23X34 8-ø22X34
200(8") 340 295 290 11.75 201 85 600 8-ø23X33.5 12-ø23X27 8-ø23X33.5
250(10") 395 350 355 14.25 245.5 110 650 12-ø23X32.5 12-ø25X32.5 12-ø25X32.5
00(16") 597 515 510 21.26 399 140 950 16-ø27X43 16-ø27 16-ø30X43
450(18") 635 560 565 22.76 446 150 1050 20-ø26X28.5 20-ø26X28.5 16-ø32X34.5
500(20") 700 620 620 25 494 150 1140 20-ø26X44 20-ø26X44 20-ø32X44
700(28") 928 820 840 34.02 670 185 1530 24-ø31X44 24-ø33 24-ø35
800(32") 1060 950 950 38.5 755 220 1690 24-ø41X60 28-ø33X38 24-ø41X60
1000(40") 1210 1160 1160 46.26 935 236 1800 28-ø36X52 28-ø39 32-ø41
600 (24")) 815 725 730 29.53 570 170 1290 20-ø35X47.5 24-ø33 20-ø35X47.5
700 (28") 928 840 840 34.02 670 185 1530 24-ø31X44 24-ø33 24-ø35
800 (32')) 1060 950 950 38.5 755 220 1690 24-ø41X60 28-ø33X38 24-ø41X60
1000 (40') 1230 1160 1160 46.26 935 236 1800 28-ø36X52 28-ø39 32-ø41
