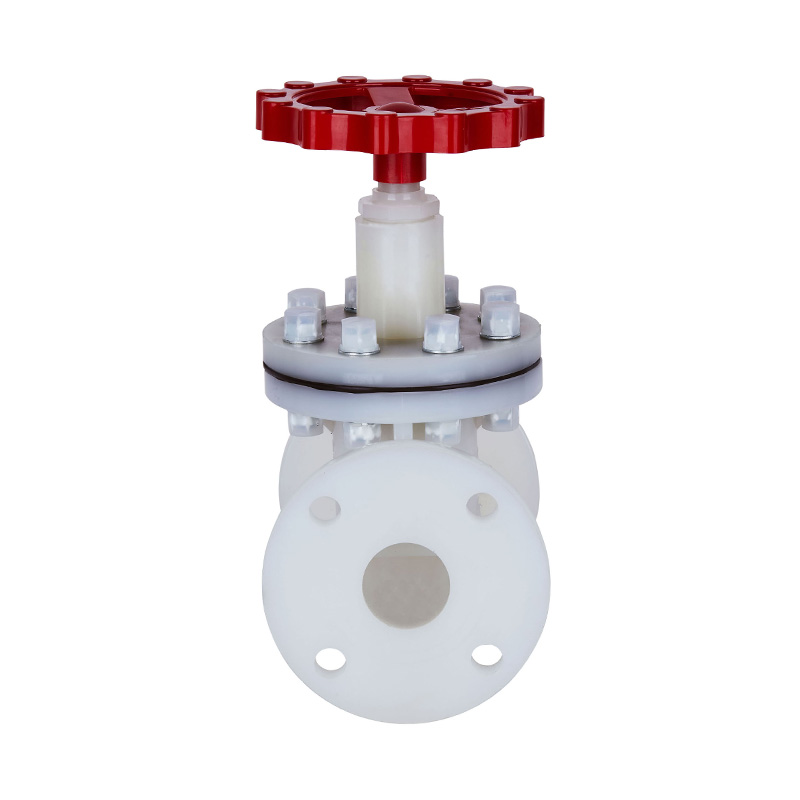

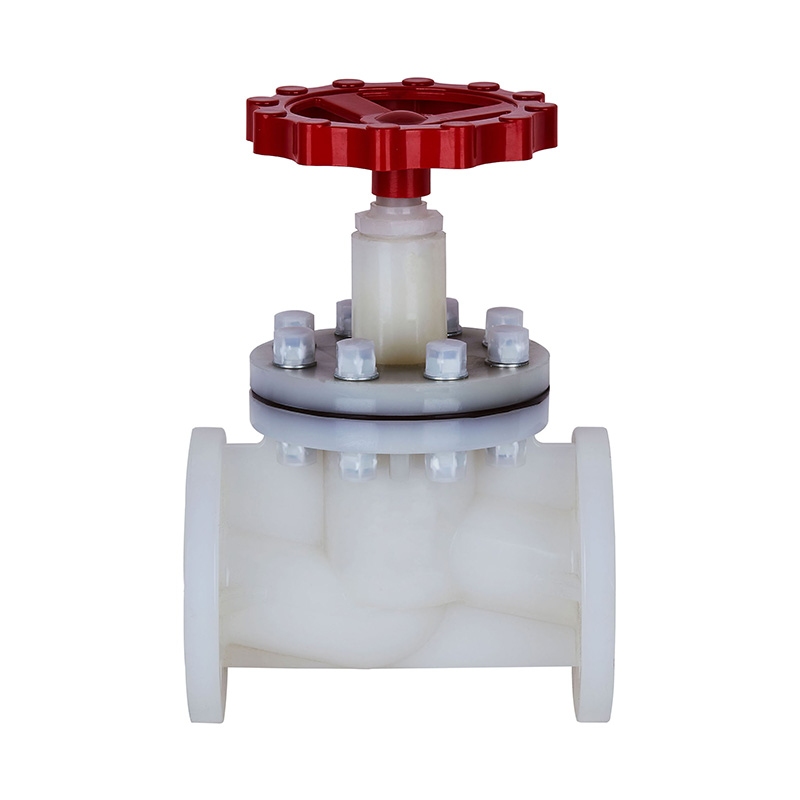

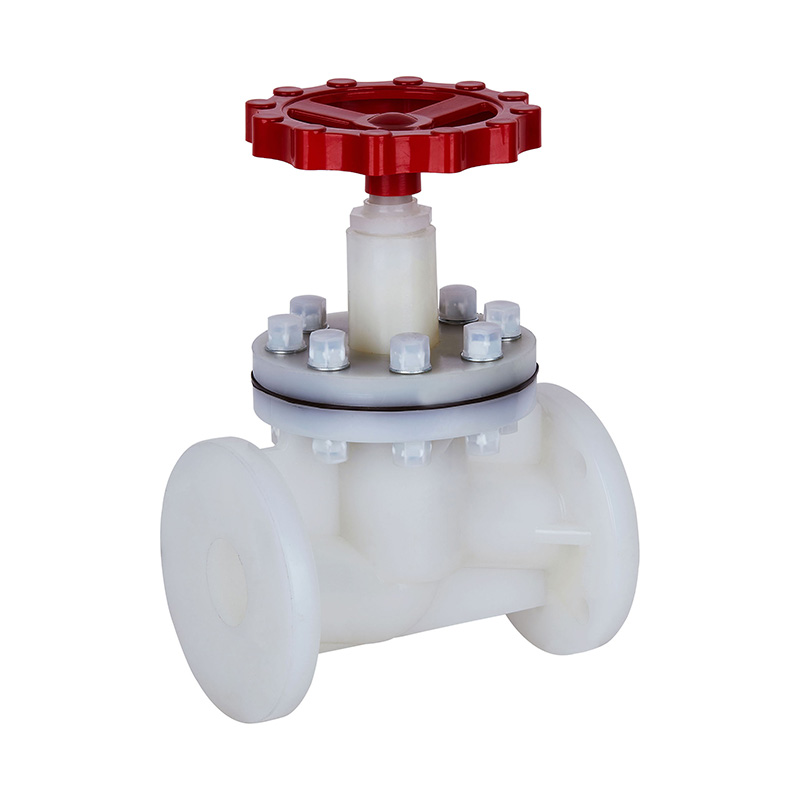

PVDF J41F-10F Flange Type Globe Valve DN15-150 1/2"-6" ANSI Standard

PVDF Flanged Globe Valve Chemical and Industrial Steam Plastic Flanged Globe Valve for Water and Chemical Use ANSI Standard
Material: Plastic
Connection Type: Flanged
Operation Mode: Manual
Nominal Pressure: 10 kg
Flow Channel: Straight-Through Type
Structure: Fixed Globe Valve
Type: Fixed Globe Valve
Function: Bypass Valve
Temperature: High Temperature
Application: Industrial Use, Water Treatment Use
Brand: KXPV
Specification: DN15–DN150
Origin: Zhejiang, Ningbo

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1.The plastic valve body offers excellent corrosion resistance and wear resistance.
2.Compact design, cost-effective and high performance.
3.Valves available for flow adjustment.

App Temperature Bound List

Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Body PVC-C PVC-U PVDF PPH FRPP 1
2 Lock Block PVC-C PVC-U PVDF PPH FRPP 1
3 Connectors PVC-C PVC-U PVDF PPH FRPP 1
4 Stem PVC-C PVC-U PVDF PPH FRPP 1
5 Sealing Cover PVC-C PVC-U PVDF PPH FRPP 1
6 Sten seal PTFE 1
7 Wheel Alloy material 1

No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Wheel Alloy material 1
2 Seal nut PVC-C PVC-U PVDF PPH FRPP 1
3 Sten seal PTFE 1
4 Screw Steel 8
5 Stem (PVC-C/PVC-U/PVDF/PPH/FRPP)+SteelSteel 1
6 Capping PVC-C PVC-U PVDF PPH FRPP 1
7 Body PVC-C PVC-U PVDF PPH FRPP 1
8 Sealing rubber FPM EPDM FPM EPDM 1
9 Bonnet PVC-C PVC-U PVDF PPH FRPP 1





No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Wheel Alloy material 1
2 Seal nut PVC-C PVC-U PVDF PPH FRPP 1
3 Suppot (PVC-C/PVC-U/PVDF/PPH/FRPP)+SteelSteel 1
4 Screw Steel 8
5 Stem (PVC-C/PVC-U/PVDF/PPH/FRPP)+SteelSteel 1
6 Capping PVC-C PVC-U PVDF PPH FRPP 1
7 Body PVC-C PVC-U PVDF PPH FRPP 1
8 Sealing rubber FPM EPDM FPM EPDM 1
9 Bonnet PVC-C PVC-U PVDF PPH FRPP 1

Dimension List



Specification D1(mm) D2(mm) L(mm) T(mm) n-Φ(mm)
1/2"(15) 60 105 155 18 4-Φ14
3/4"(20) 70 105 155 18 4-Φ14
1"(25) 79 115 160 20 4-Φ14
1¼"(32) 89 135 185 20 4-Φ18
1½"(40) 98 150 200 20 4-Φ18

Specification D1(mm) D2(mm) L(mm) T(mm) n-Φ(mm)
2"(50) 121 165 230 20 4-Φ18

Specification D1(mm) D2(mm) L(mm) T(mm) n-Φ(mm)
1/2"(15) 60 105 155 18 4-Φ14
3/4"(20) 70 105 155 18 4-Φ14
1"(25) 79 115 160 20 4-Φ14
1¼"(32) 89 135 185 20 4-Φ18
1½"(40) 98 150 200 20 4-Φ18
