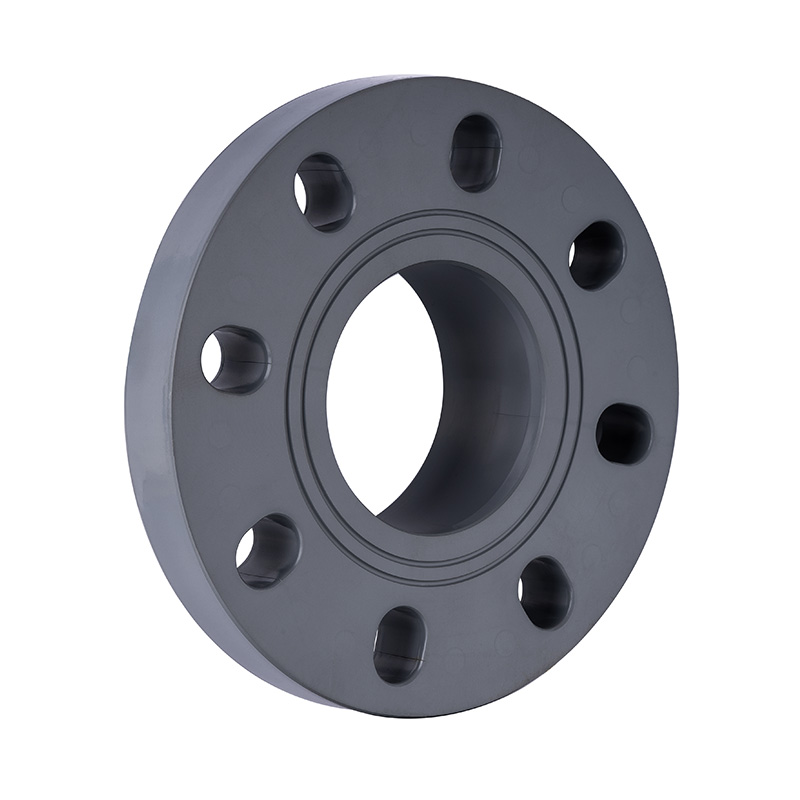

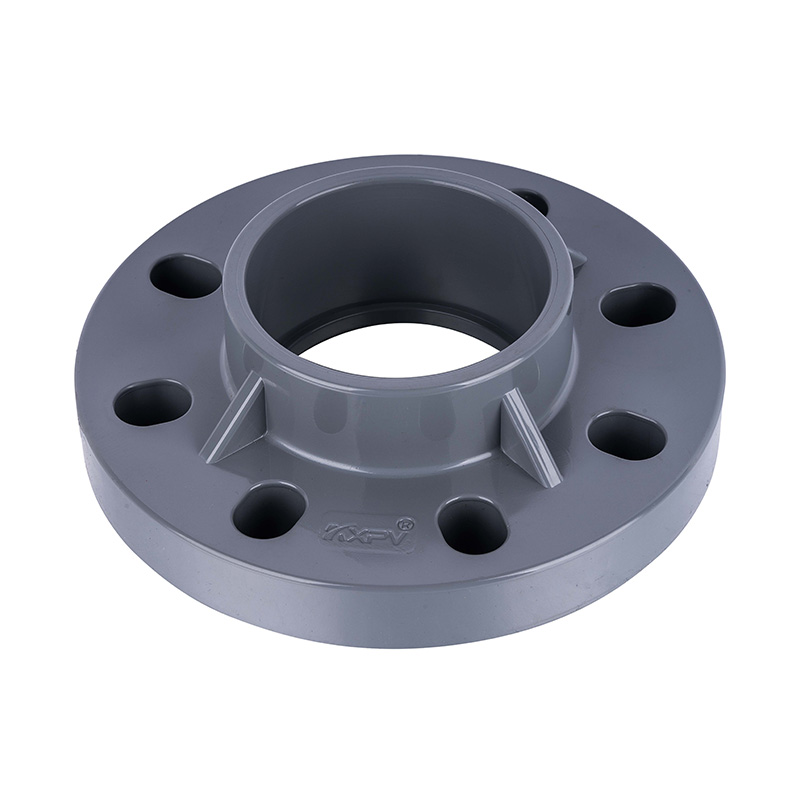

PVC-C Type A Socket Flange DN15-150 15A-150A JIS Standard

New Common Light Gray PVC-C Type A Socket Flanged Plastic Pipe Fittings, JIS Standard

Origin: China
Brand Name: KXPV
Material: Plastic
Process: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Color: Light Gray
Size: DN15-150
Application: Industry
Packaging: Carton
Working Pressure: 1 MPa
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.Excellent Chemical Resistance: The temperature range is wide from -20℃ to 95℃. The ion content in the medium meets ultra-pure water standards. Hygiene performance complies with national sanitation standards.
2.Outstanding Strength, Toughness, and Chemical Corrosion Resistance: The material offers superior strength and resistance to chemical corrosion.
3.Durability: Exceptional aging resistance and UV resistance significantly extend the lifespan compared to other piping systems.
4.Low Thermal Conductivity: Thermal conductivity is approximately 1/200 of steel; flame retardant properties are self-extinguishing.
5.Lightweight: Weighs only about 1/5 of steel pipes and 1/6 of copper pipes.
6.Low Resistance, High Flow Rate: The smooth and clean pipe wall results in minimal friction resistance and adhesion when transporting fluids.
7.Easy Installation, Low Cost: Can be connected using bonding, threading, and most simply with adhesive, offering a cost-effective and user-friendly solution.

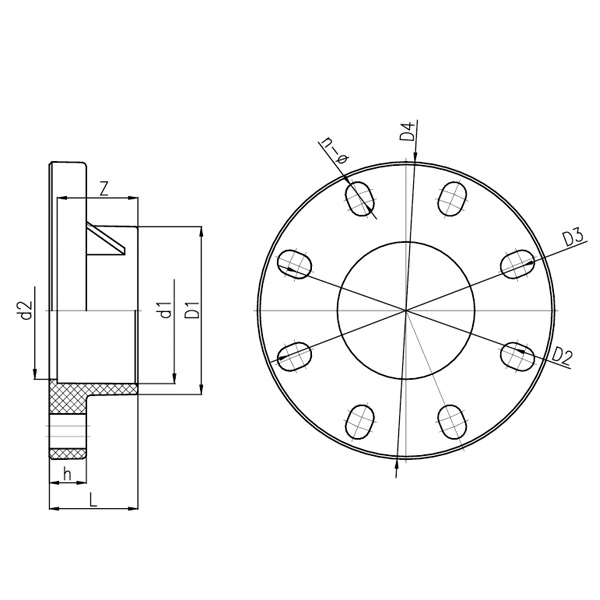

PVC-U Type A Socket Flange

DN D1 D2 D3 D4 d1 d2 L h Z n-Ø
15 28 61 70 95 20 17 20 14 16 4-Ø15X20
20 32 70 75 105 25 22 23 16 19 4-Ø15X18
25 40 79 90 120 32 28 27 16 22 4-Ø16X22
32 50 89 100 140 40 36 31 17 26 4-Ø18X24
40 61 98 110 150 50 45 36 19 31 4-Ø18X25
50 75 120 125 165 63 58 43 21 38 4-Ø18X21
65 88 140 145 185 75 69 50 22 44 4-Ø18X21
80 105 150 160 200 90 84 57 25 51 8-Ø18X24
100 127 175 190.5 225 110 104 67 28 61 8-Ø18X26
125 161 210 216 250 140 134 82 30 76 8-Ø20X24
150 184 240 242 280 160 154 92 30 86 8-Ø23X24
