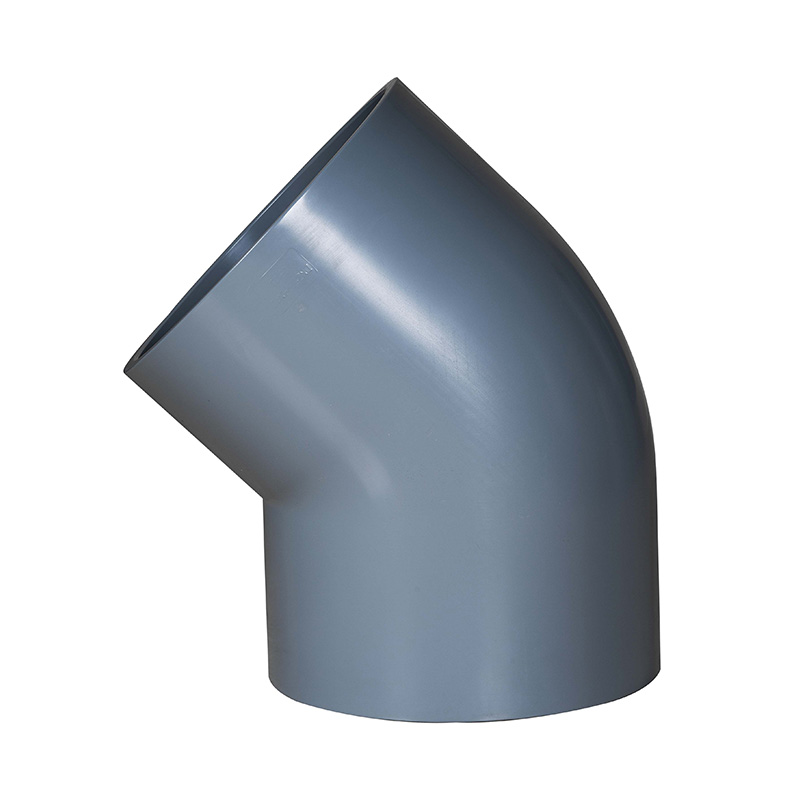

PVC-C 45° Elbow DN15-600 GB Standard

Extra Durable Light Gray PVC-C 45° Elbow shaped, Professional Standard Size DN15-DN600 Plastic Pipe Fittings, PVC-C Conformal 45° Elbow
Place of Origin: China
Brand Name: KXPV
Material: Plastic
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Light Gray
Sizes: DN15-DN600
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

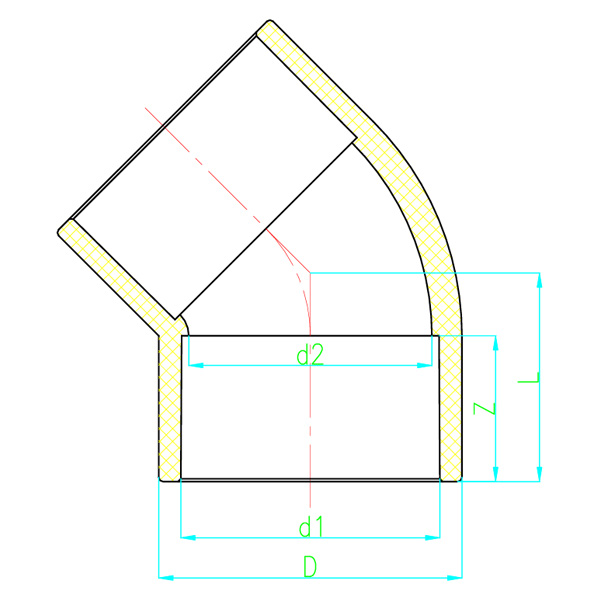

Dimension List

DN D d1 d2 L Z e
15 27 20 16 21.6 16 3.5
20 32 25 21 25.6 19 3.5
25 40 32 28 30.3 22 4
32 50 40 36 36.4 26 5
40 61 50 45 43.6 31 5.5
50 75 63 58 53.5 38 6
65 88 75 70 62.2 44 6.5
80 104 90 85 72.5 51 7
100 127 110 104 87.3 61 8.5
125 161 140 136 107 76 10.5
150 184 160 154 122 86 12
200 260 225 218 171 119 17.5
250 310 280 270 210 146 15
300 346 315 304 236 164 15.5
350 390 355 340 265 184 17.5
400 440 400 386 298 206 20
450 496 450 442 335 231 22
500 551 500 491 375 256 24
